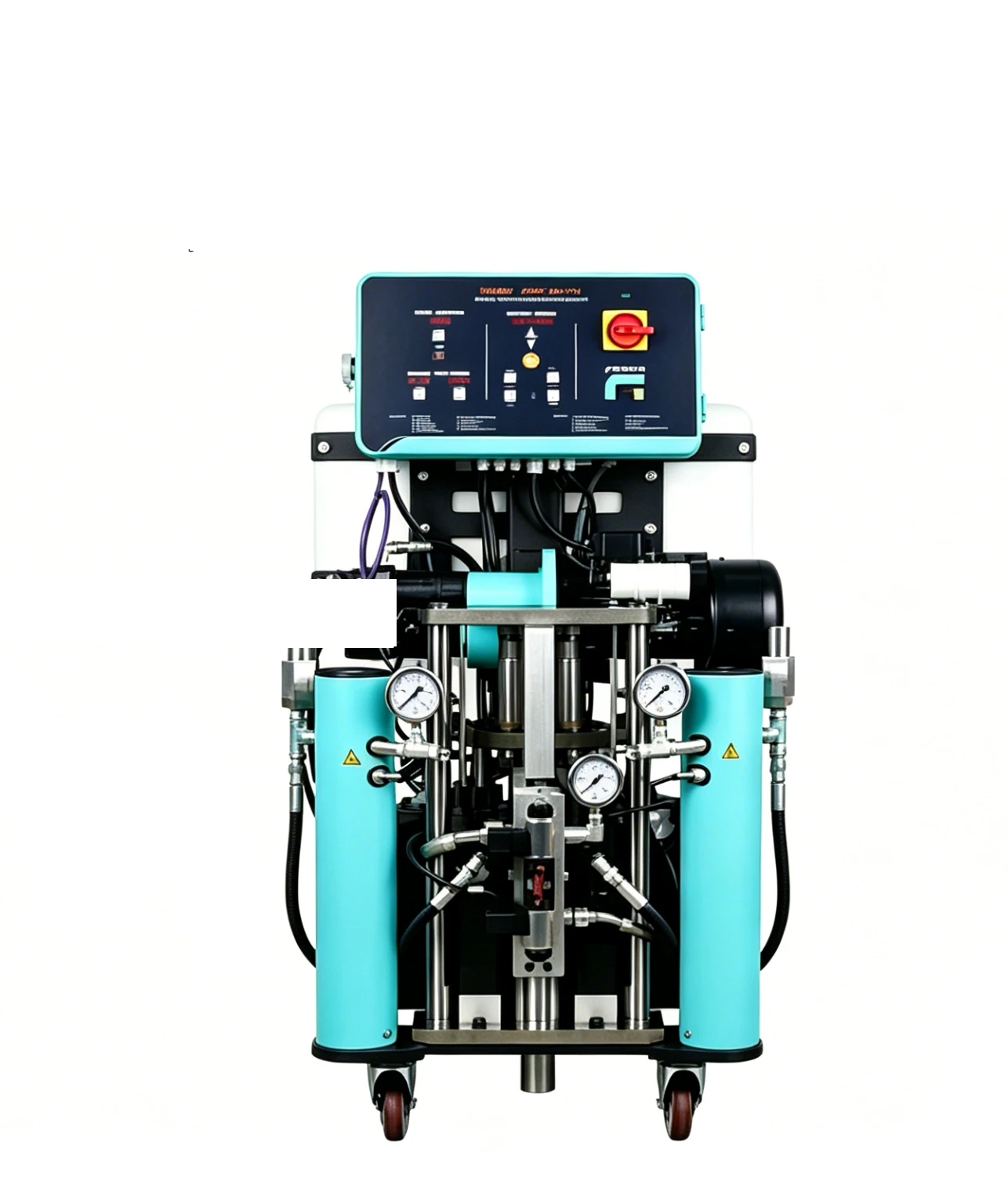

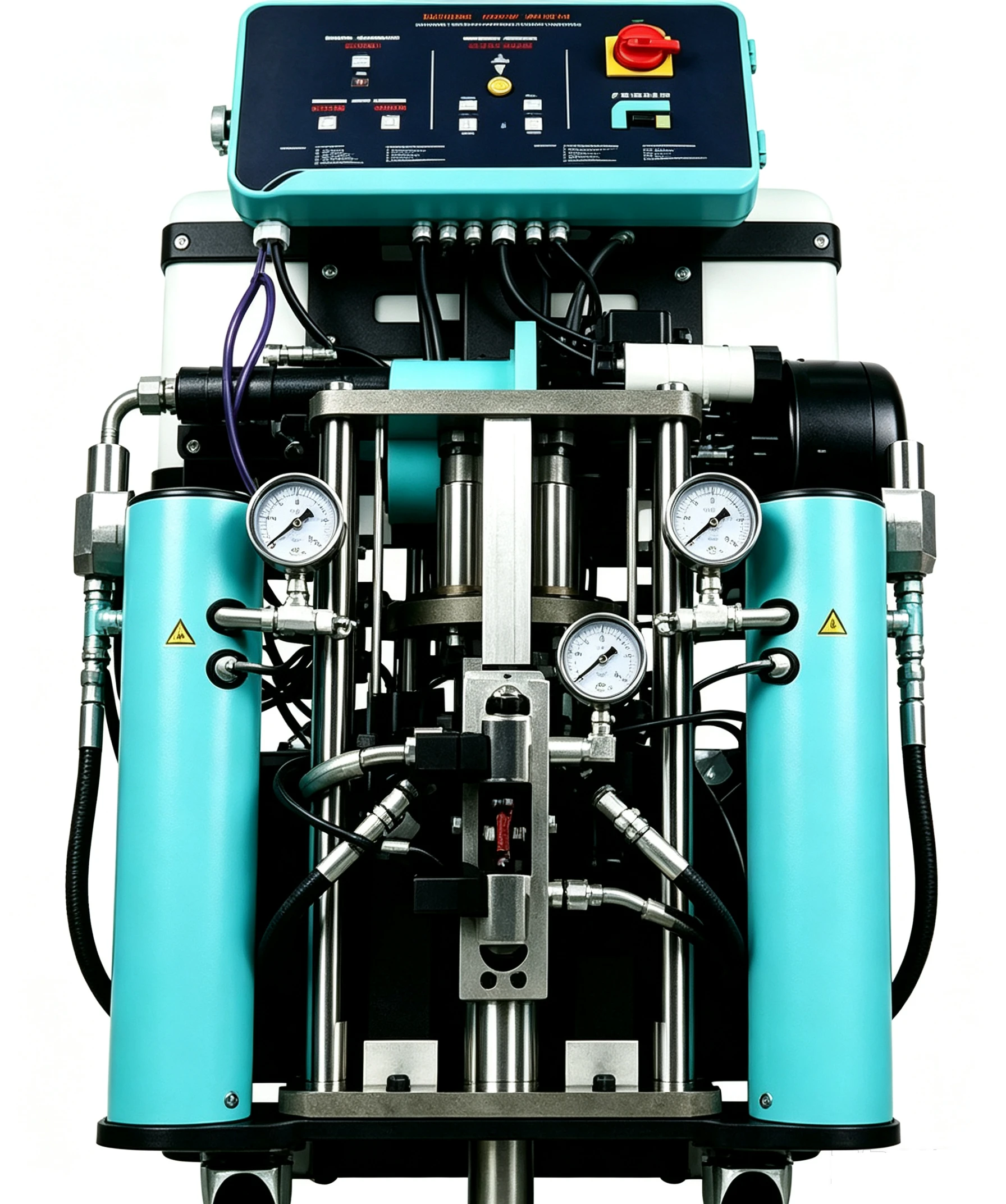

Waterproofing Engineering PU Spray Machine
Portable PU spraying system for building waterproofing with seamless one-piece spraying
±0.3% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Suitable for waterproof spraying construction of building roofs, basements, kitchen and bathroom spaces, swimming pools, exterior walls, etc.
This PU spray machine is purpose-built for waterproof spraying construction in building roofs, basements, kitchen and bathroom spaces, swimming pools, and exterior walls. The wheeled portable design enables flexible movement in narrow spaces and high-altitude operations, providing convenient construction access. With pneumatic drive and easy operation, the equipment delivers high on-site preparation and construction efficiency, lowering the operational threshold for users. The one-piece seamless spraying capability ensures stable sealing and anti-seepage effect, effectively reducing leakage risk. The system supports 230V civil voltage, making it compatible with home decoration sites and small construction sites. The equipment covers the needs of home decoration waterproofing, small engineering repair, and integral seamless waterproofing, suitable for civil and small engineering waterproof construction scenarios.
Operation Workflow
Equipment Setup & Material Loading
Position the spray machine at the construction site. The wheeled portable design allows flexible movement. Load PU raw materials into the 30L+30L dual tanks.
Power Connection & Parameter Setting
Connect to 230V 50/60Hz power supply. Set the spraying parameters according to the waterproofing requirements and surface conditions.
Pneumatic Drive Activation & Spraying
Activate the pneumatic drive system. The machine delivers a maximum flow of 4kg/min with standard pressure of 100bar or high pressure up to 200bar. The 3.6kW heater ensures proper material temperature.
One-Piece Seamless Spraying Construction
Perform integral seamless spraying on roofs, basements, or other waterproofing surfaces. The sealing and anti-seepage effect ensures stable waterproof performance with reduced leakage risk.
Request a Customized Waterproofing Spray Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the waterproofing engineering PU spray machine. Customizations are available upon request.
| Technical Parameter | HF-SP-02 |
|---|---|
| Max Flow | 4kg/min |
| Max Pressure | Standard 100bar/High Pressure 200bar |
| Drive Mode | Pneumatic Drive |
| Tank Quantity | 2 Tanks |
| Power Supply | 1NPE 230V 50/60Hz |
| Heater Power | 3.6kW |
| Max Hose Length | 48m |
| Tank Capacity | 30L+30L |
| Weight | 112kg |
Key Features & Advantages
Engineered for portability, ease of use, and reliable waterproofing performance in civil and small engineering projects.
Wheeled Portable Design
Enables flexible movement in narrow spaces and high-altitude operations, providing convenient construction access and reducing setup time.
Easy to Operate
High on-site preparation and construction efficiency with a low operational threshold, suitable for both professionals and general users.
One-Piece Seamless Spraying
Delivers stable sealing and anti-seepage effect with no joints or gaps, effectively reducing leakage risk and ensuring long-term waterproof performance.
230V Civil Voltage Compatibility
Supports standard 230V civil voltage, making it fully compatible with home decoration sites and small construction projects without special power requirements.
Dual Operating Pressures
Supports standard 100bar and high pressure 200bar options, providing flexibility for different waterproofing material requirements and application scenarios.
Lightweight & Compact Design
Weighs only 112kg with a compact footprint, enabling easy transportation and quick deployment across multiple construction sites.
Simplify Your Waterproofing Projects with Portable PU Spraying Technology
Our engineering team specializes in waterproofing spray solutions. Contact us to discuss your specific project types, surface conditions, and application requirements.
Application Scenarios
Roofs, basements, kitchens, bathrooms, pools, and exterior walls with seamless PU waterproofing.
