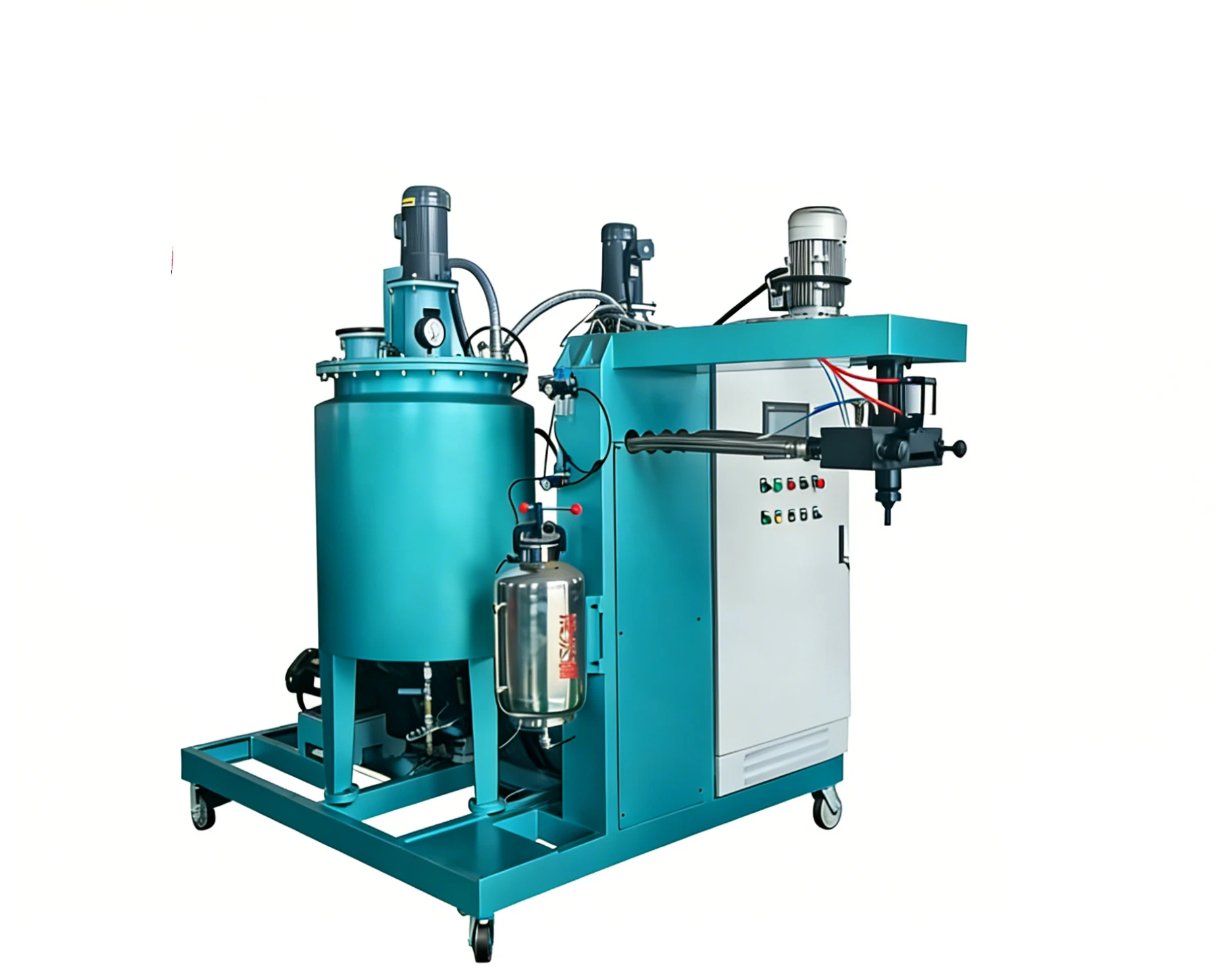

Hydraulic Seal PU Casting Machine
Precision casting system for hydraulic system seals, featuring small-flow precise casting and MOCA/BDO dual chain extender switching
±0.3% Accuracy
Ratio precision
2-4 Components
Flexible config
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
Product Overview
Specially designed for the production of precision seals for hydraulic systems, widely suitable for the casting of high-precision seals such as construction machinery, hydraulic equipment and oil seals.
This PU casting machine is purpose-built for the precision production of hydraulic system seals. The 1A1B independent temperature control two-component system supports flexible switching between MOCA and BDO dual chain extenders, balancing sealing accuracy with oil and hydrolysis resistance. The BDO hydrolysis-resistant formula is compatible with various water-based and oil-based hydraulic media. Dynamic full-range ultra-high precision metering ensures uniform seal size and effectively improves sealing reliability. The small-flow capability (20–500 g/s) is precisely tailored for small sealing molds, with high raw material utilization and reduced production loss. With 1A1B independent temperature control design and simple operation, the machine is ideally suited for small-batch, multi-specification precision seal production, meeting the core production requirements of high precision, high wear resistance and anti-leakage for hydraulic seals. Vacuum defoaming (≤-0.095MPa) ensures dense, pore-free products with consistent mechanical properties.
Operation Workflow
Raw Material Preparation
Prepare CPU prepolymer and chain extender (MOCA or BDO) according to the target mix ratio (MOCA: 100:8~13; BDO: 100:3~5). Select the appropriate formula based on the hydraulic media compatibility requirements (oil-based or water-based).
Tank Loading & Independent Temperature Setting
Load prepolymer into Tank A and chain extender into Tank B. The 1A1B independent temperature control system allows precise setting: Tank A at 30–80°C, Tank B according to selected formula (MOCA: 90–115°C; BDO: 25–50°C).
Vacuum Defoaming
Activate the vacuum defoaming system to achieve vacuum level ≤-0.095MPa, removing bubbles to ensure dense, pore-free seals with consistent sealing performance.
Precision Metering, Mixing & Small-Flow Casting
The PLC-controlled dynamic metering system (accuracy ≤±0.3% full range) dispenses materials precisely. The mixing head operates at 8000–12000 r/min for homogeneous blending. The small-flow pouring rate (20–500 g/s) is precisely tailored for small sealing molds, ensuring high raw material utilization and reduced production loss.
Request a Customized Hydraulic Seal Casting Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the hydraulic seal PU casting machine. Customizations are available upon request.
| Technical Parameter | HF-CPUE-1A1B-Seal |
|---|---|
| Pouring Rate | 20～500 g/s |
| Raw Material Ratio | MOCA: 100:8~13; BDO: 100:3~5 |
| Tank Capacity | 50 / 100 L |
| Mixing Head Speed | 8000～12000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 5.5～7.5 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Features & Advantages
Engineered for precision, versatility, and efficiency in hydraulic seal production.
MOCA/BDO Dual Chain Extender Flexible Switching
Supports flexible switching between MOCA and BDO dual chain extenders, balancing sealing accuracy with oil and hydrolysis resistance for compatibility with various hydraulic media.
Dynamic Full-Range Ultra-High Precision Metering
Ensures uniform seal size with accuracy ≤±0.3% across the full range, effectively improving sealing reliability and preventing leakage.
Small-Flow Precise Casting
Pouring rate of 20–500 g/s is precisely tailored for small sealing molds, with high raw material utilization and reduced production loss.
1A1B Independent Temperature Control
Simple and stable operation with independent temperature control for each component, ideally suited for small-batch, multi-specification precision seal production.
Vacuum Defoaming (≤-0.095MPa)
Ensures dense, pore-free seals with consistent mechanical properties, critical for reliable sealing performance in hydraulic systems.
Intelligent PLC Control with Multi-Formula Storage
PLC + touch screen interface with multiple formula memory simplifies operation, reduces errors, and enables rapid changeovers between formulations for different seal specifications.
Enhance Your Hydraulic Seal Production with Precision Casting
Our engineering team specializes in precision hydraulic seal casting solutions. Contact us to discuss your specific seal types, hydraulic media compatibility requirements, and production capacity needs.
Application Scenarios
Specially designed for the production of precision seals for hydraulic systems, widely suitable for the casting of high-precision seals such as construction machinery, hydraulic equipment and oil seals. It supports BDO hydrolysis-resistant formula switching, compatible with various water-based and oil-based hydraulic media, meeting the core production requirements of high precision, high wear resistance and anti-leakage for hydraulic seals.
Ready to discuss your project?
Request Specs & PricingComplete Your Production Line
Integrate the product with our full range of auxiliary equipment for a turnkey polyurethane processing system.
Epoxy Pourer for Printing Roller
Low Pressure Polyurethane Machine
Monomer Cast MC Nylon Casting Machine
Elastomer Polyurethane Machine
Roller PU Casting Machine for Cold Rolling
Elastomer Polyurethane Machine

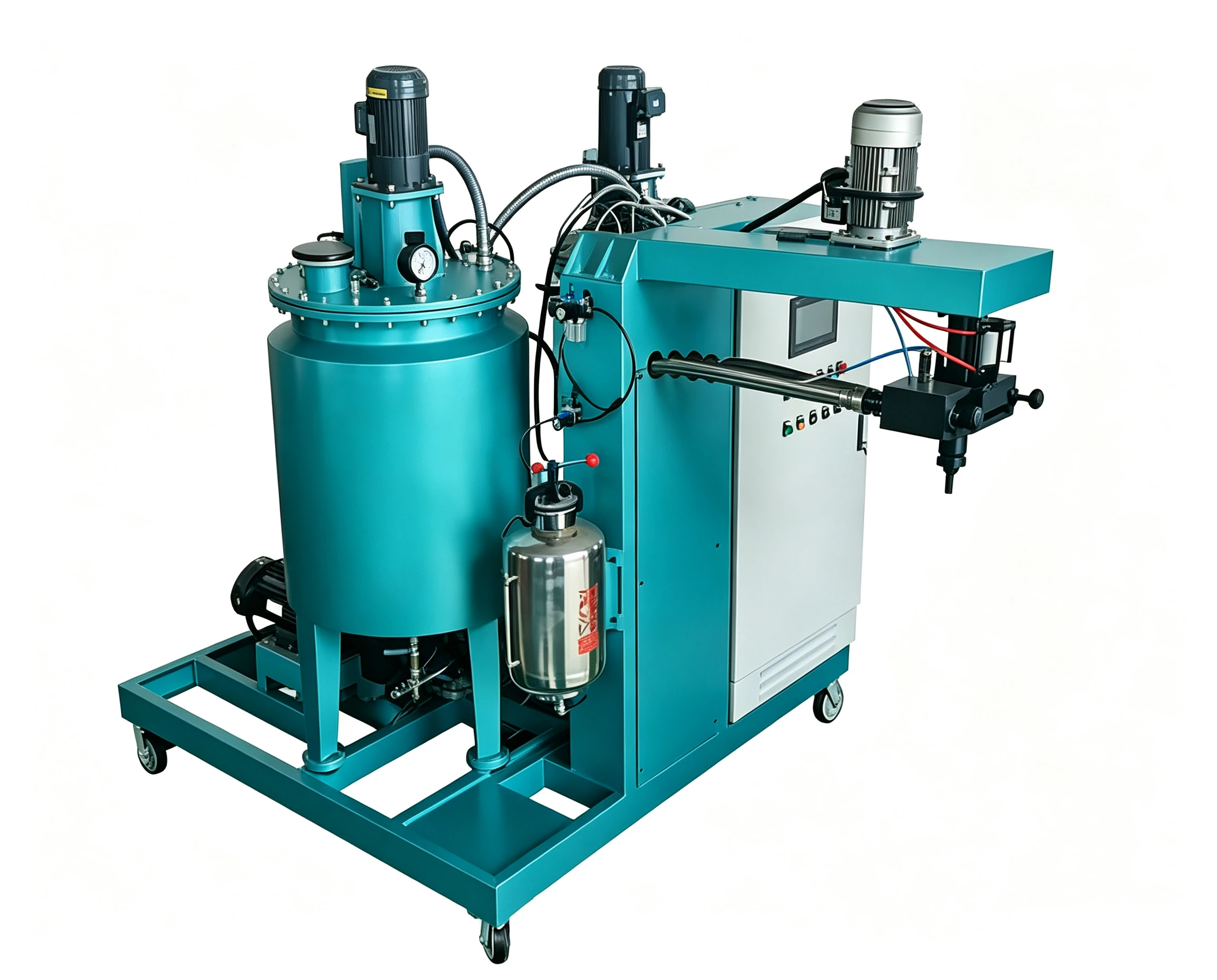

PU Casting Unit for Auto Ball Socket
