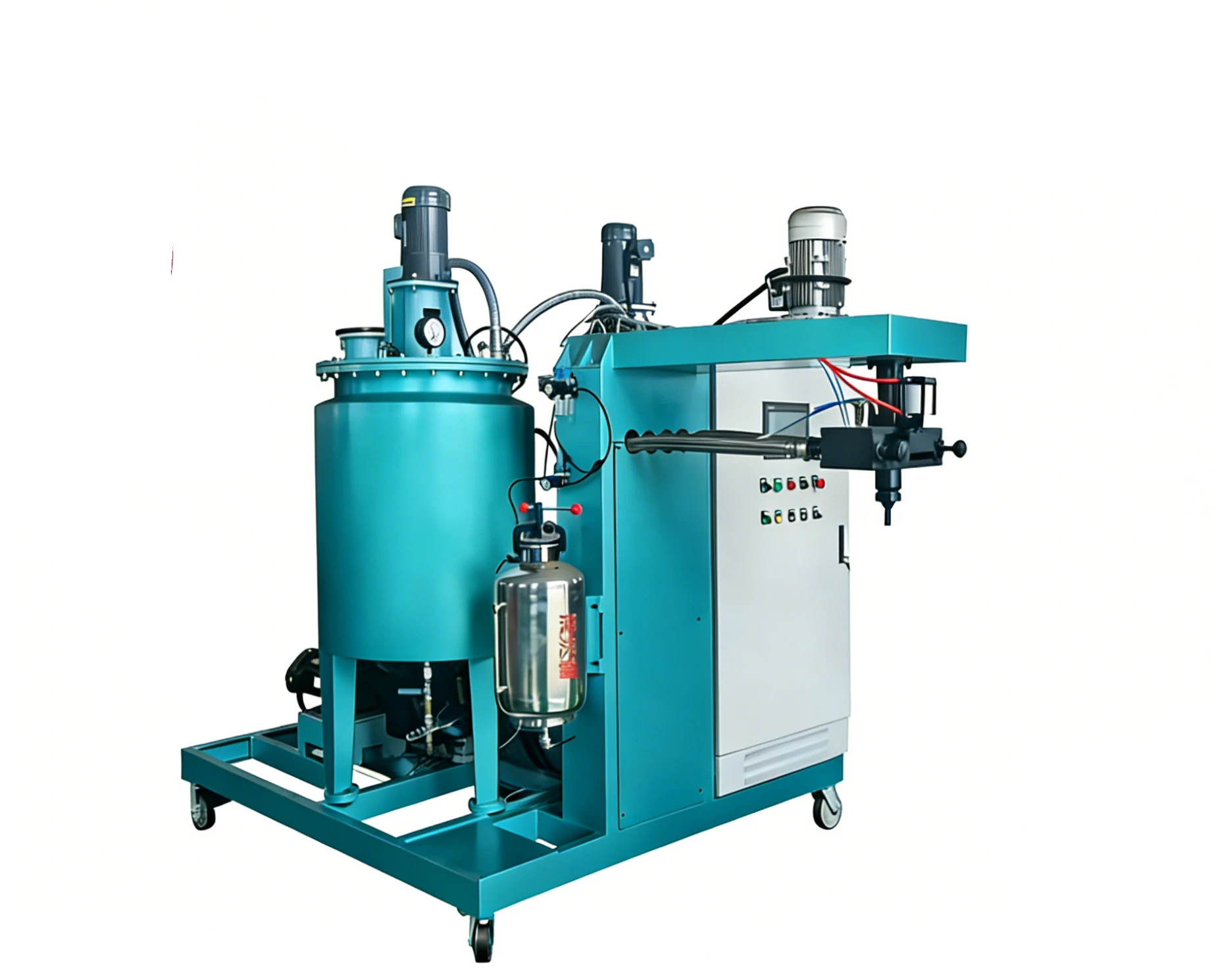

Roller PU Casting Machine for Cold Rolling
High-performance casting system for cold rolling support rollers, featuring wear-resistant and high-temperature resistant additives with large-flow stable pouring
±0.3% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Specially designed for large-scale production of cold rolling support rollers in metallurgical industry, widely suitable for cold rolling production lines of steel plates, aluminum plates.
This PU casting machine is purpose-built for manufacturing cold rolling support rollers used in metallurgical steel and aluminum plate production lines. The 2A2B two-component system includes a dedicated wear-resistant and high-temperature resistant additive tank, producing rubber layers that are impact-resistant and tear-resistant, suitable for harsh high-temperature and high-load cold rolling conditions. The large-flow pouring capability (100–1500 g/s) is ideal for large-size roller molds, ensuring full filling and strong adhesion with excellent dynamic balance performance, guaranteeing the stability of cold rolling support. The system supports flexible switching between MOCA and BDO chain extenders, allowing adjustment of hardness and resilience to suit different cold rolled plate specifications. With stable and durable operation, the machine resists coolant and rolling fluid erosion without sticking, making it ideal for mass continuous production in the metallurgical industry. The machine meets the production needs of metallurgical heavy equipment while improving the precision of cold rolled plates and avoiding scratches and wrinkles.
Operation Workflow
Raw Material & Additive Preparation
Prepare CPU prepolymer and chain extender (MOCA or BDO) according to the target mix ratio. Select appropriate wear-resistant and high-temperature resistant additives and load into the dedicated additive tank.
Tank Loading & Temperature Setting
Load prepolymer into Tank A and chain extender into Tank B. Set Tank A temperature to 30–80°C, and Tank B temperature based on the selected formula (MOCA: 90–115°C; BDO: 25–50°C).
Vacuum Defoaming
Activate the vacuum defoaming system to achieve vacuum level ≤-0.095MPa, removing bubbles to ensure dense, void-free rubber layers with consistent mechanical properties.
Large-Flow Metering, Mixing & Casting
The PLC-controlled dynamic metering system (accuracy ≤±0.3% full range) dispenses materials precisely. The mixing head operates at 7000–11000 r/min for homogeneous blending. The large-flow pouring rate (100–1500 g/s) ensures full filling of large-size roller molds.
Request a Customized Cold Rolling Support Roller Casting Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the cold rolling support roller casting machine. Customizations are available upon request.
| Technical Parameter | HF-CPUE-2A2B-Roller-ColdRoll |
|---|---|
| Pouring Rate | 100～1500 g/s |
| Raw Material Ratio | MOCA: 100:10~13; BDO: 100:4~6 |
| Tank Capacity | 220 L |
| Mixing Head Speed | 7000～11000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 2A2B two-component + wear-resistant & high-temperature resistant additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 11～15 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Features & Advantages
Engineered for high-temperature resistance, durability, and precision in metallurgical cold rolling applications.
2A2B Configuration with Wear-Resistant & High-Temperature Resistant Additives
Produces rubber layers that are impact-resistant and tear-resistant, capable of withstanding harsh high-temperature and high-load cold rolling conditions.
Large-Flow Stable Pouring
Pouring rate of 100–1500 g/s is ideal for large-size roller molds, ensuring full filling and strong adhesion with excellent dynamic balance performance.
MOCA/BDO Dual Chain Extender Switching
Flexibly adjust hardness and resilience to suit production of different cold rolled plates, from steel to aluminum and other metal alloys.
Coolant & Rolling Fluid Resistance
Resists erosion from coolants and rolling fluids without sticking, ensuring stable operation and long service life in demanding metallurgical environments.
Vacuum Defoaming (≤-0.095MPa)
Eliminates bubbles and voids, ensuring dense rubber layers with consistent mechanical properties for high-precision cold rolling support.
Intelligent PLC Control with Multi-Formula Storage
PLC + touch screen interface with multiple formula memory simplifies operation, reduces errors, and enables rapid changeovers between formulations for different cold rolled plate specifications.
Enhance Your Cold Rolling Production Line with Durable Support Rollers
Our engineering team specializes in high-temperature metallurgical roller solutions. Contact us to discuss your specific plate types, rolling conditions, and production capacity requirements.
Application Scenarios
Specially designed for large-scale production of cold rolling support rollers in metallurgical industry, widely suitable for cold rolling production lines of steel plates, aluminum plates. Used for plate support, guidance and compression, can withstand high temperature and high load for a long time, ensure stable rubber layer, improve the precision of cold rolled plates, avoid scratches and wrinkles, and meet the production needs of metallurgical heavy equipment.
