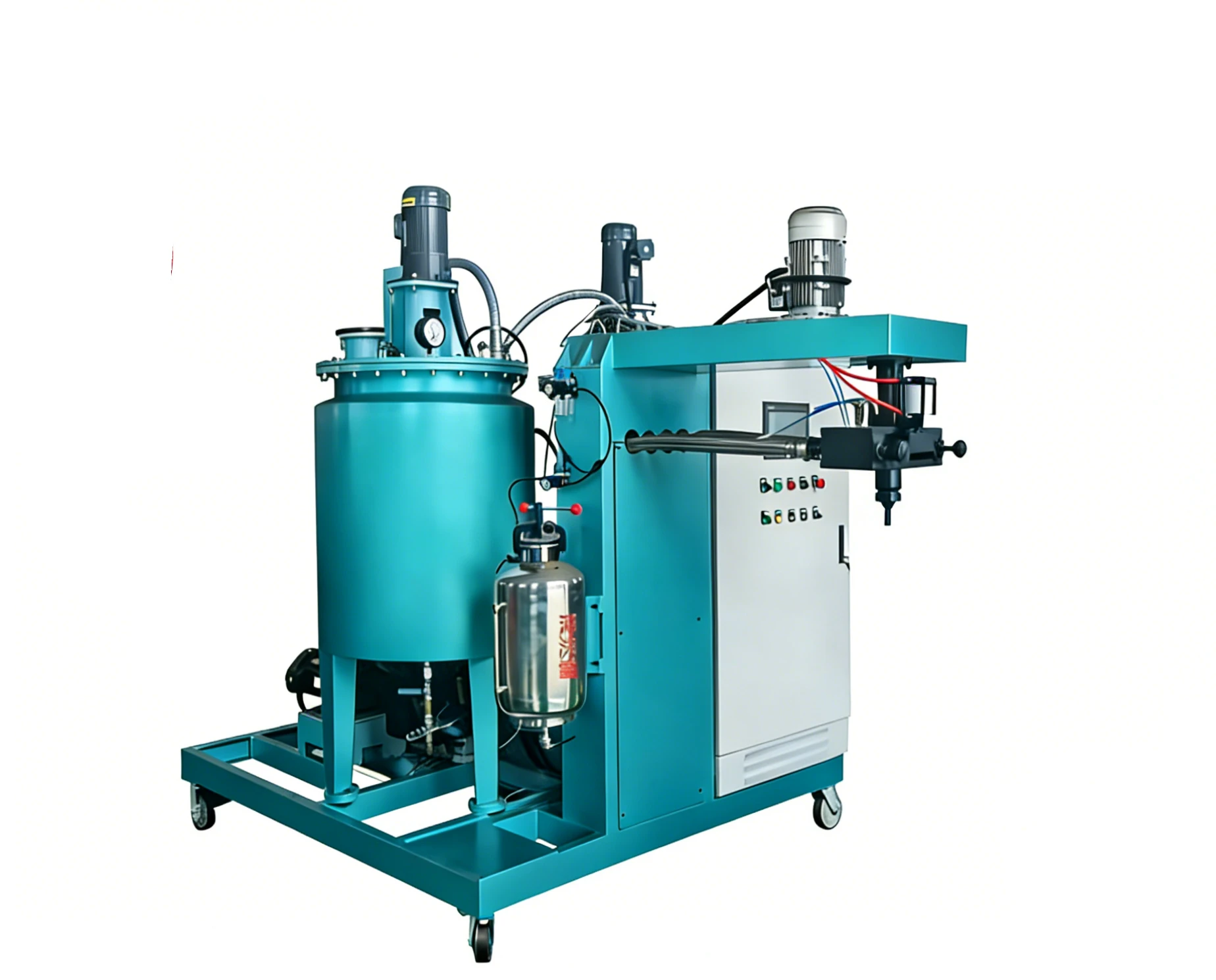

Vacuum Roller PU Elastomer Casting Machine
High-sealing casting system for vacuum equipment rollers, featuring high-vacuum defoaming and dual chain extender switching
±0.3% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Specially designed for large-scale production of polyurethane rollers for vacuum equipment, widely suitable for vacuum coating, vacuum drying, vacuum conveying and other precision vacuum equipment.
This PU elastomer casting machine is purpose-built for the large-scale production of polyurethane rollers used in precision vacuum equipment such as vacuum coating, vacuum drying, and vacuum conveying systems. The 1A1B independent temperature control two-component system supports flexible switching between MOCA and BDO chain extenders, allowing balanced optimization of high wear resistance and high resilience to prolong roller service life. The high-equipped vacuum defoaming system (vacuum ≤-0.098MPa) produces a dense, bubble-free rubber layer, greatly improving vacuum sealing stability and suitable for various vacuum equipment working conditions. Dynamic full-range high-precision metering ensures uniform rubber layer thickness and smooth surface, delivering high sealing fit that ensures vacuum sealing effectiveness. With simple operation and efficient production changeover, the machine is ideally suited for small-batch, multi-specification vacuum roller precision production, meeting the stringent production requirements of precision vacuum working conditions.
Operation Workflow
Raw Material Preparation
Prepare CPU prepolymer and chain extender (MOCA or BDO) according to the target mix ratio (MOCA: 100:8~11; BDO: 100:3~5). Select the appropriate formula based on the required balance of wear resistance and resilience.
Tank Loading & Independent Temperature Setting
Load prepolymer into Tank A and chain extender into Tank B. The 1A1B independent temperature control system allows precise setting: Tank A at 30–80°C, Tank B according to selected formula (MOCA: 90–115°C; BDO: 25–50°C).
High-Vacuum Defoaming
Activate the high-equipped vacuum defoaming system to achieve vacuum level ≤-0.098MPa, thoroughly removing bubbles to ensure a dense, bubble-free rubber layer critical for vacuum sealing stability.
Precision Metering, Mixing & Casting
The PLC-controlled dynamic metering system (accuracy ≤±0.3% full range) dispenses materials precisely. The mixing head operates at 8000–12000 r/min for homogeneous blending. The pouring rate is adjustable within 30–700 g/s to accommodate different vacuum roller specifications.
Request a Customized Vacuum Roller Casting Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the vacuum roller PU elastomer casting machine. Customizations are available upon request.
| Technical Parameter | HF-CPUE-1A1B-Roller |
|---|---|
| Pouring Rate | 30～700 g/s |
| Raw Material Ratio | MOCA: 100:8~11; BDO: 100:3~5 |
| Tank Capacity | 100 / 150 L |
| Mixing Head Speed | 8000～12000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.098MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 5.5～7.5 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Features & Advantages
Engineered for sealing precision, durability, and production flexibility in vacuum equipment roller manufacturing.
High-Equipped Vacuum Defoaming System (≤-0.098MPa)
Produces a dense rubber layer without bubbles, greatly improving vacuum sealing stability and suitable for various vacuum equipment working conditions.
Dynamic Full-Range High-Precision Metering
Ensures uniform rubber layer thickness and smooth surface with high sealing fit, guaranteeing the vacuum sealing effectiveness of the finished rollers.
MOCA/BDO Dual Chain Extender Switching
Flexibly balance high wear resistance and high resilience, optimizing roller performance for different vacuum applications and prolonging service life.
1A1B Independent Temperature Control Design
Simple operation and efficient production changeover, ideally suited for small-batch, multi-specification vacuum roller precision production.
High-Speed Mixing Head
Mixing head operates at 8000–12000 r/min for homogeneous material blending, ensuring consistent rubber layer quality across all production batches.
Intelligent PLC Control with Multi-Formula Storage
PLC + touch screen interface with multiple formula memory simplifies operation, reduces errors, and enables rapid changeovers between formulations for different vacuum roller specifications.
Ensure Vacuum Equipment Performance with Precision Cast Rollers
Our engineering team specializes in vacuum equipment roller casting solutions. Contact us to discuss your specific vacuum application requirements, roller specifications, and production capacity needs.
Application Scenarios
Specially designed for large-scale production of polyurethane rollers for vacuum equipment, widely suitable for vacuum coating, vacuum drying, vacuum conveying and other precision vacuum equipment. It can stably produce vacuum rollers with high sealing, high elasticity and high wear resistance. The rubber layer is dense and free of bubbles, effectively ensuring the sealing and stability of vacuum equipment, and meeting the stringent production requirements of precision vacuum working conditions.
Ready to discuss your project?
Request Specs & PricingComplete Your Production Line
Integrate the product with our full range of auxiliary equipment for a turnkey polyurethane processing system.

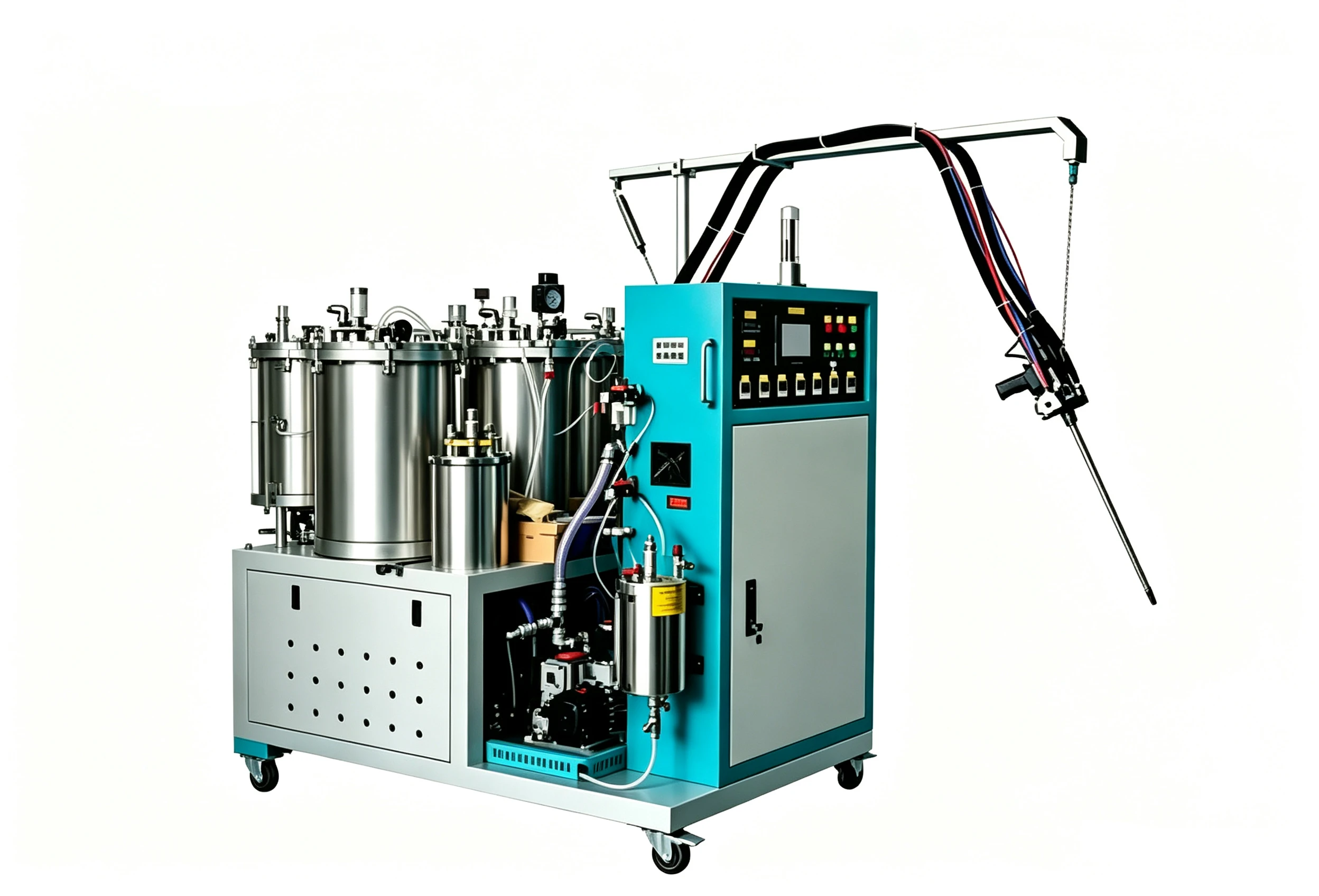

Epoxy Pourer for Printing Roller
Low Pressure Polyurethane Machine
Hydraulic Seal PU Casting Machine
Elastomer Polyurethane Machine

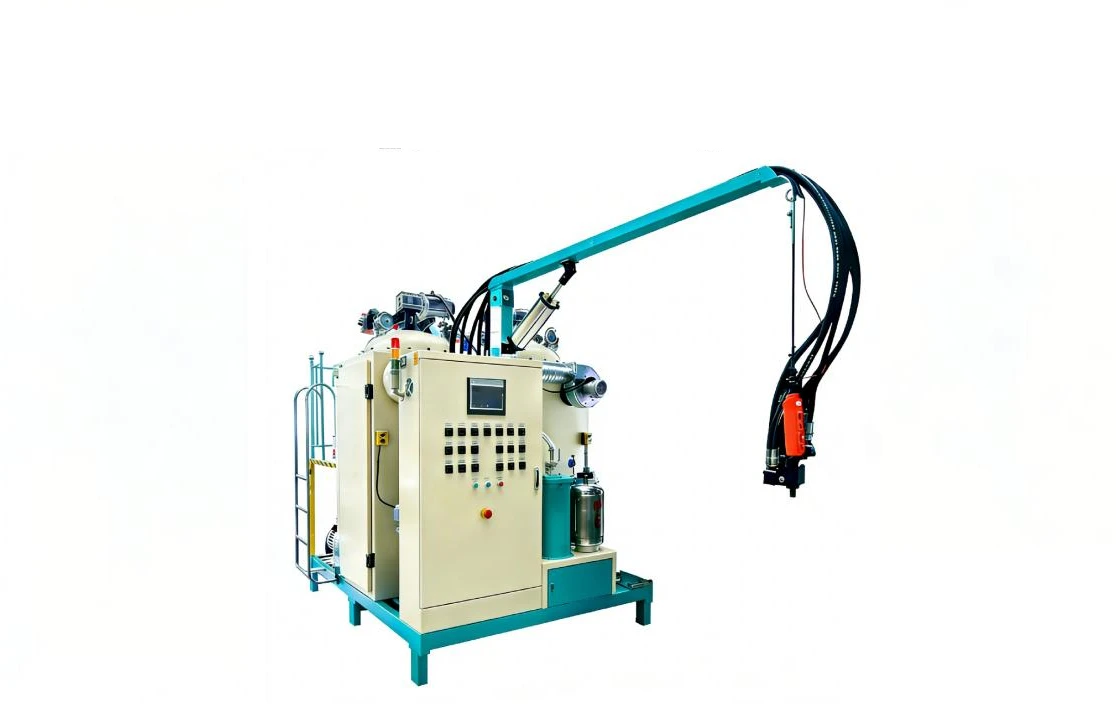

Monomer Cast MC Nylon Casting Machine
Elastomer Polyurethane Machine

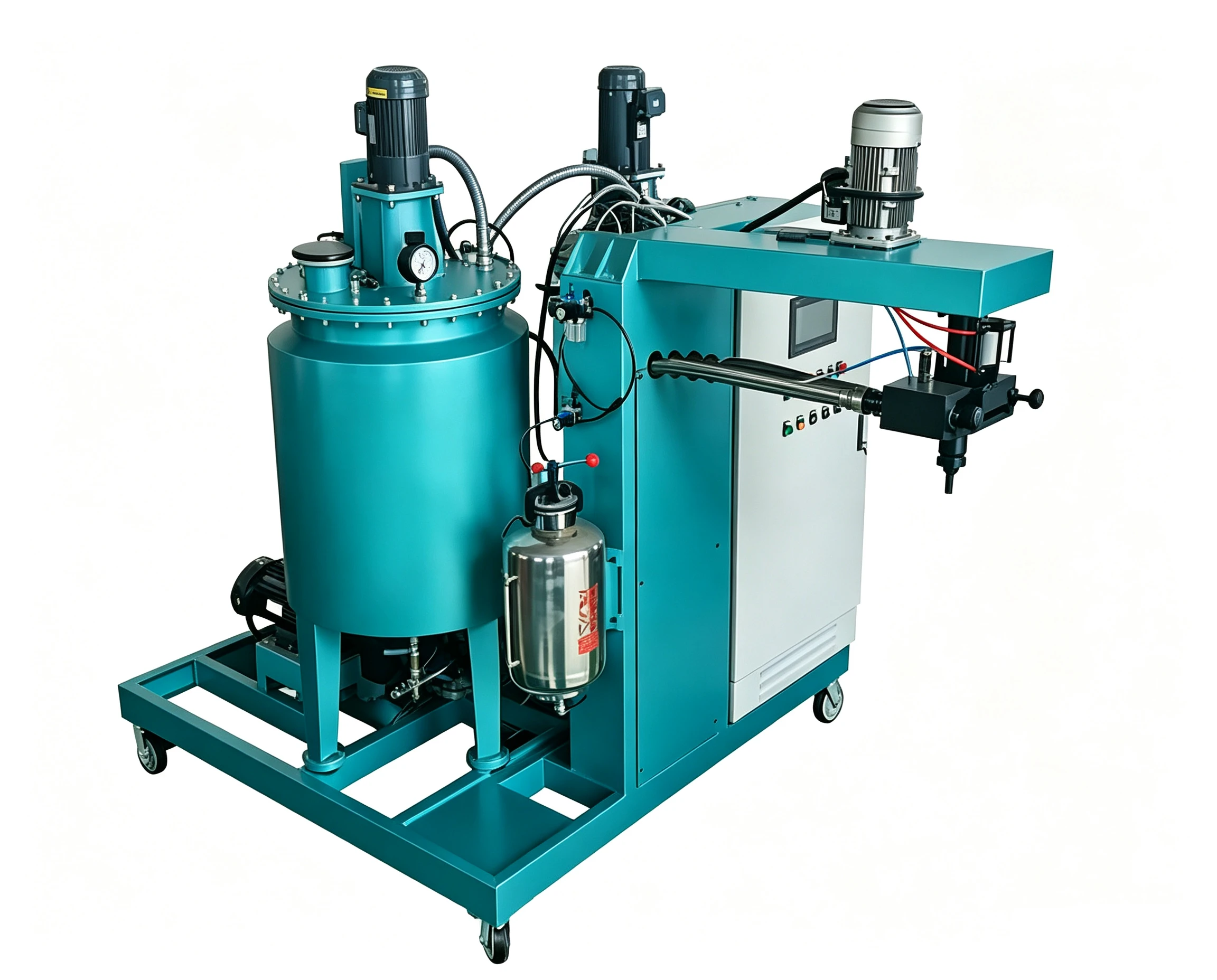

Roller PU Casting Machine for Cold Rolling
