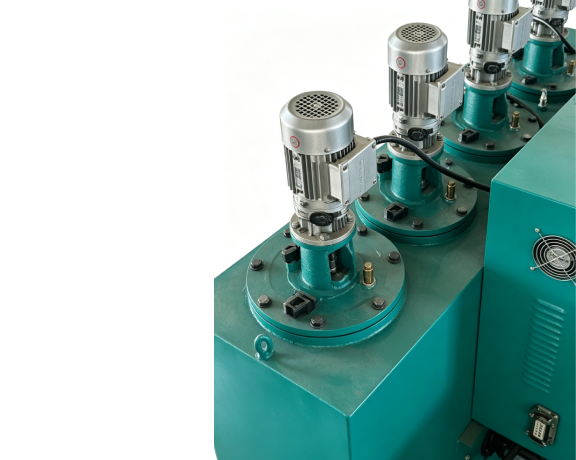

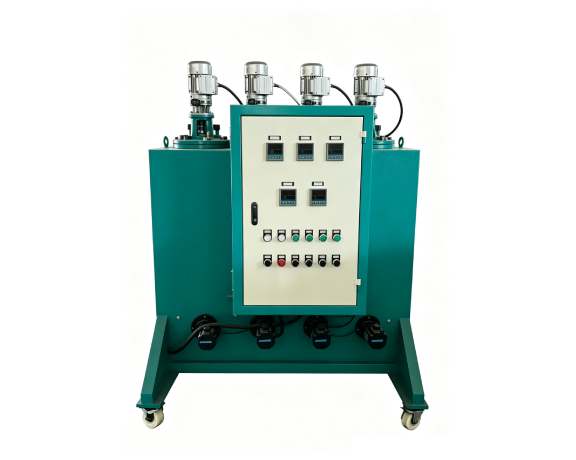

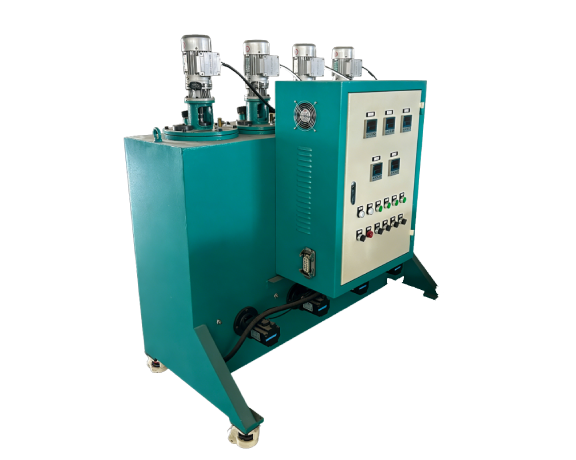

Three-Color Additive Mixer for PU Production
High-precision multi-component additive mixer for PU lines with 3 independent color/functional channels
Number of Additive Channels
3 (independently controlled)
Metering Accuracy
≤ ±0.5%
Flow Rate (per channel)
0.1 – 100 g/sec
Formula Changeover Time
≤ 2 minutes
Product Overview
A high-precision special auxiliary equipment for polyurethane production lines, enabling precise metering and injection of 3 kinds of independent color pastes/liquid functional additives.
This three-color additive mixer is a high-precision auxiliary equipment independently developed for polyurethane production lines. It enables precise metering and injection of 3 independent color pastes and liquid functional additives, achieving uniform mixing with the main polyurethane material without cross‑contamination. The equipment features 3 independently controlled channels with metering accuracy ≤±0.5% and flow rate range of 0.1–100 g/sec per channel, compatible with viscosities up to 10,000 mPa·s. The low‑shear mixing structure ensures uniform fusion without local color difference or uneven additive distribution. Integrated with an automatic purge and cleaning system, it enables one‑click material cleaning and quick switching of color numbers/raw materials in only 2 minutes. The intelligent formula management system stores hundreds of formulas with one‑click recall and editing. Equipped with standardized communication interfaces (Ethernet, RS485), it can be seamlessly connected with the main PU production line PLC for integrated line linkage. Tailored for customized and small‑batch flexible production, the equipment serves as a core supporting solution for diversified and high‑end polyurethane production.
Operation Workflow
Additive Loading & Formula Selection
Load up to 3 color pastes/liquid functional additives into the 5–20 L additive tanks. Select the target formula from the touchscreen interface; the system stores hundreds of formulas for one‑click recall.
Metering & Injection Parameter Setting
Set the flow rate per channel (0.1–100 g/sec) via the integrated touchscreen. The servo/gear metering units deliver ≤±0.5% accuracy for precise proportioning.
Homogeneous Mixing with Main Material
The low‑shear mixing structure (static/dynamic mixing head) ensures uniform fusion of additives with the main PU material without local color difference or uneven distribution, without damaging main material performance.
Integrated Line Linkage & Automated Production
Via Ethernet or RS485 communication, the mixer links with the main PU production line PLC. The system supports synchronous or independent operation of the 3 channels for precise color customization or functional additive addition.
Request a Customized Additive Mixer Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the three‑color additive mixer. Customizations including tank capacity, channel adaptability, and viscosity range are available upon request.
| Technical Parameter | |
|---|---|
| Number of Additive Channels | 3 sets (independently controlled) |
| Metering Accuracy | ≤±0.5% |
| Flow Rate Range (per channel) | 0.1 - 100 g/sec |
| Additive Tank Capacity | 5 - 20 L (standard, customizable) |
| Viscosity Compatibility | Up to 10,000 mPa·s |
| Control Interface | Integrated touchscreen (compatible with host machine PLC) |
| Cleaning Method | Automatic solvent purge / compressed air blow |
| Communication Interface | Ethernet, RS485 (support system integration) |
Key Features & Advantages
Engineered for precision, flexibility, and seamless line integration in polyurethane color/functional additive mixing.
Independent High‑Precision Metering
3 sets of servo/gear metering units with accuracy ≤±0.5% ensure precise proportioning and eliminate batch deviations for consistent color and additive distribution.
2‑Minute Rapid Production Change
One‑click automatic purge and cleaning system enables color number/raw material switching in only 2 minutes, adapting to flexible, small‑batch production.
Intelligent Formula Management
Touchscreen operation with storage and recall of hundreds of formulas. One‑click switching of production tasks reduces human error and simplifies operation.
Low‑Shear Uniform Mixing
Optimized static/dynamic mixing head ensures uniform fusion without damaging main material performance. Mixing achieves no blind spots or color difference.
Seamless Integrated Line Connection
Ethernet and RS485 communication interfaces enable linkage with the main PU production line PLC, integrating into automated production processes.
High Adaptability & Customization
Compatible with viscous components up to 10,000 mPa·s. Additive tank capacity and channel adaptability are customizable to meet specific production needs.
Enhance Your PU Production Flexibility with Precision Color & Additive Mixing Technology
Our engineering team specializes in polyurethane auxiliary equipment. Contact us to discuss your specific color matching requirements, additive types, and production line integration needs. Customized tank capacities and channel configurations are available.
Application Scenarios
Custom shoe materials, automotive interiors, consumer electronics accessories, designer furniture, and general PU products.
