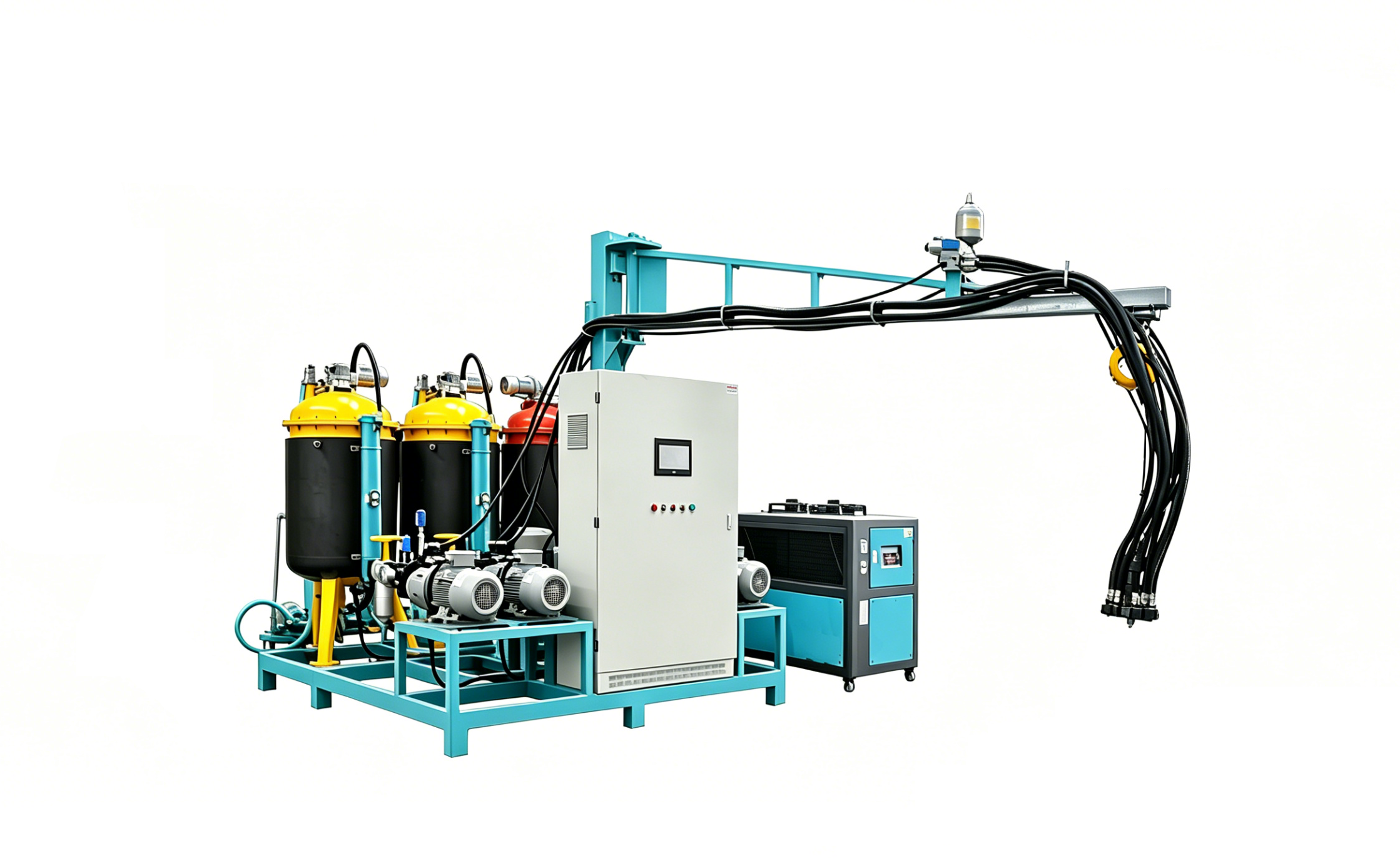

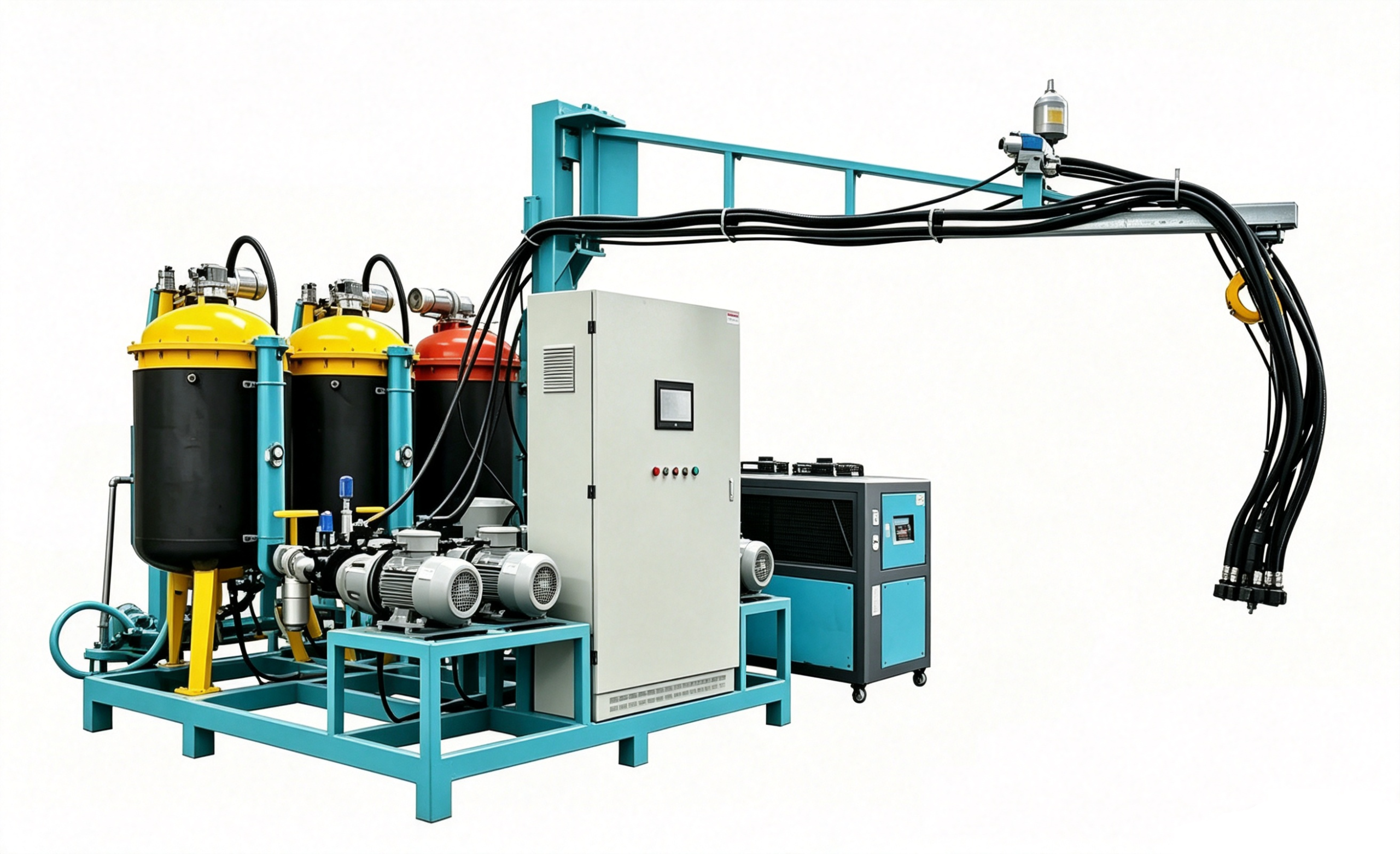

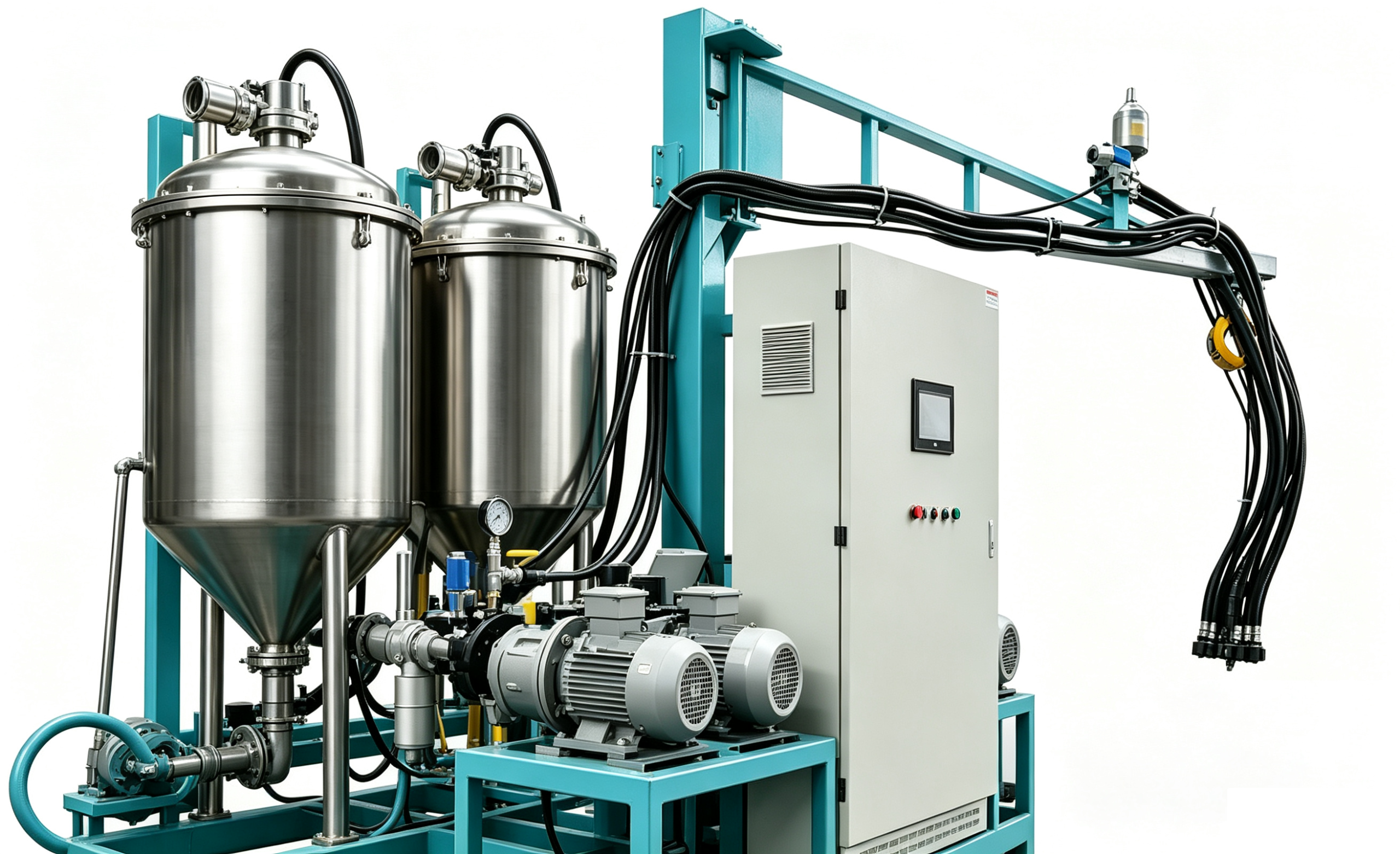

Surf Boat Hull RIM Composite PU Machine
RIM composite molding system for surfboards and small boat hulls with carbon/fiberglass waterproof composites
Pouring Rate
50～500 g/s
Mix Ratio (Polyether:Isocyanate)
100 : 90~110
Dosing Accuracy
≤ ±0.3% full range
Mixing Pressure
150～200 bar
Product Overview
Suitable for molding surfboards, small leisure boat hulls, water sports equipment and other products.
This RIM composite PU machine is purpose‑built for molding surfboards, small leisure boat hulls, and water sports equipment. The system supports carbon fiber and corrosion‑resistant fiber materials, significantly enhancing the waterproof, impact‑resistant, and seawater corrosion‑resistant properties of finished products. The 1A1B two‑component system with independent temperature control and circulation stirring ensures consistent material quality. High‑pressure homogeneous mixing at 150–200 bar minimizes material delamination while strengthening overall structural integrity. The stable and adjustable flow rate (50–500 g/s) enables integral molding of small and medium‑sized boat hulls with uniform quality. Flexible process parameter settings support small‑batch customization and multi‑specification production, meeting the dual requirements of lightweight construction and structural strength for water sports equipment. The machine holds CE and ISO9001 certifications.
Operation Workflow
Carbon/Fiberglass Reinforced Material Preparation
Prepare polyether polyol and isocyanate according to the target mix ratio (100:90–110). Select carbon fiber or corrosion‑resistant fiber materials for the specific product requirements.
Tank Loading & Temperature Setting
Load polyol into Tank A and isocyanate into Tank B. The 1A1B independent temperature control system maintains 25–45°C with circulation stirring for optimal material consistency.
High‑Pressure Homogeneous Mixing & Pouring
The PLC‑controlled dosing system (accuracy ≤±0.3% full dynamic range) dispenses materials precisely. High‑pressure mixing at 150–200 bar ensures uniform fiber dispersion. The pouring rate is adjustable within 50–500 g/s for different hull sizes.
Mold Filling, Negative Pressure Venting & Curing
Inject the composite material into the mold. The mold negative pressure venting system removes trapped air. High‑pressure homogenization ensures complete fiber wet‑out. The finished hull features waterproof, impact‑resistant, and seawater corrosion‑resistant properties.
Request a Customized Water Sports Equipment Molding Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the surf boat hull RIM composite PU machine. Customizations including tank capacity are available upon request.
| Technical Parameter | HF-RIM-1A1B-SurfBoat |
|---|---|
| Pouring Rate | 50～500 g/s |
| Mix Ratio (Polyether : Isocyanate) | 100:90~110 |
| Tank Capacity (Optional, Per Tank) | 200L / 300L |
| Dosing Accuracy | ≤±0.3% (Full Dynamic Range) |
| Tank Configuration | 1A1B Two‑Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 25～45℃ |
| Mixing Pressure | 150～200 bar |
| Venting System | Mold Negative Pressure Venting + High‑Pressure Homogenization |
| Cleaning System | High‑Pressure Circulation Cleaning + Air Purging |
| Power | 15～22 kW |
| Control System | PLC + Touch Screen + Multi‑Formula Storage |
| Application System | Carbon Fiber / Fiberglass Waterproof & Corrosion‑Resistant RIM Composites |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Key Features & Advantages
Engineered for water resistance, structural integrity, and production flexibility in marine composite applications.
Strong Adaptability to Special Composite Materials
Compatible with carbon fiber and corrosion‑resistant fiber materials, enhancing waterproof, impact‑resistant, and seawater corrosion‑resistant properties for wading scenarios.
High‑Pressure Homogeneous Mixing
Mixing at 150–200 bar ensures uniform fiber dispersion, minimizing material delamination and strengthening overall structural integrity.
Stable & Adjustable Flow Rate
Pouring rate of 50–500 g/s enables integral molding of small and medium‑sized boat hulls with consistent quality across production batches.
Flexible Process Parameter Settings
Supports small‑batch customization and multi‑specification production, adapting to diverse water sports equipment requirements.
Mold Negative Pressure Venting + High‑Pressure Homogenization
Removes trapped air and ensures complete fiber wet‑out, delivering void‑free composite hulls with reliable mechanical properties.
PLC Intelligent Control with Multi‑Formula Storage
PLC + touch screen interface with multi‑formula storage simplifies operation and enables rapid changeovers between different product specifications.
Elevate Your Water Sports Equipment Production with RIM Composite Technology
Our engineering team specializes in marine composite molding solutions. Contact us to discuss your specific product designs, fiber reinforcement requirements, and production capacity needs.
Application Scenarios
Surfboards, small leisure boat hulls, and water sports equipment with RIM composites.
