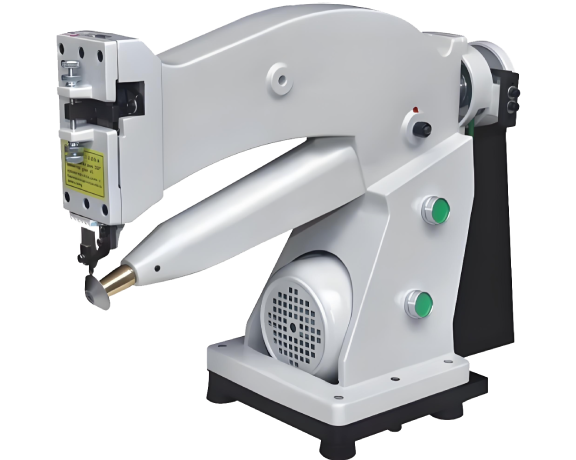

Semi‑Automatic Shoe Sole Edge Trimmer
Compact manual‑operated edge trimming machine with flexible arm design for small to medium batch production
Machining Precision
±0.5 mm
Processing Efficiency
15‑25 seconds/pair
Applicable Hardness
Shore A 30‑70
Gas Supply Pressure
0.6‑0.8 MPa
Product Overview
A compact, manually‑operated finishing machine designed for precision trimming of shoe sole edges, featuring a flexible arm structure with a high‑speed rotating cutter.
This semi‑automatic shoe sole edge trimmer is purpose‑built for precision trimming of shoe sole edges in small to medium batch production, sample development, and repair workshop applications. The flexible arm structure covers shoe soles of various sizes with high‑speed rotating cutter performance. Featuring a compact footprint, the machine is ideal for workshops with limited space. Operation is straightforward with minimal training, and the simple structure ensures low maintenance costs. With machining precision of ±0.5mm and processing efficiency of 15–25 seconds per pair, the machine is widely applied in small shoe factories, sample rooms, repair workshops, and small‑batch custom production scenarios, completing edge‑trimming post‑processing for shoe soles with Shore A hardness ranging from 30–70.
Operation Workflow
Machine Setup & Gas Supply Connection
Position the machine in the workspace. Connect to the gas supply system with pressure of 0.6–0.8 MPa. Ensure the compact footprint allows flexible workshop layout.
Parameter Setting & Cutter Check
Verify the high‑speed rotating cutter is in good condition. Set the machine for the target shoe sole specifications. The flexible arm design accommodates various sizes.
Workpiece Positioning & Manual Operation
Manually position the shoe sole for edge trimming. The semi‑automatic operation is operable after simple training, suitable for sample development and repair workshops.
Edge Trimming & Quality Inspection
Activate the trimming process. The machine achieves ±0.5mm precision with processing efficiency of 15–25 seconds per pair. Inspect trimmed edges for quality.
Request a Customized Shoe Sole Edge Trimming Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the semi‑automatic shoe sole edge trimmer. Customizations are available upon request.
| Technical Parameter | |
|---|---|
| Machining Precision | ±0.5mm |
| Processing Efficiency | 15-25 seconds/pair |
| Rated Power | 3.5 kW |
| Gas Supply Pressure | 0.6-0.8 MPa |
| Equipment Weight | Approx. 800 kg |
| Applicable Hardness | Shore A 30-70 |
Key Features & Advantages
Engineered for precision, simplicity, and space‑efficient shoe sole edge trimming operations.
Flexible Arm Design
Flexible arm structure covers shoe soles of various sizes, ensuring consistent trimming quality across different shoe models.
Compact Footprint
Space‑efficient design is ideal for workshops with limited space, enabling flexible layout in small production areas.
Easy Operation
Operable after simple training, making it suitable for sample development, repair workshops, and small‑batch production with minimal operator training.
Low Maintenance
Simple structure with low maintenance cost ensures long‑term reliable operation and reduced downtime for production.

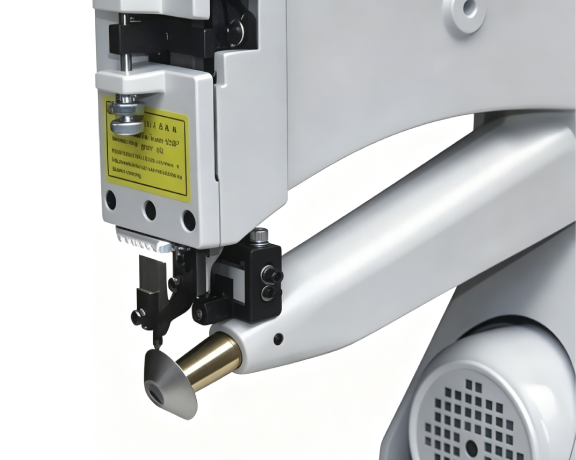

High‑Speed Rotating Cutter
Precision cutting performance delivers ±0.5mm machining accuracy for clean, consistent edge finishing.
Efficient Processing
Processing efficiency of 15–25 seconds per pair enables productive small‑batch production and sample development.
Optimize Your Shoe Finishing Process with Precision Edge Trimming Technology
Our engineering team specializes in footwear production equipment. Contact us to discuss your specific shoe sole types, production volumes, and workshop space requirements.
Application Scenarios
Small shoe factories, sample rooms, repair workshops, and small‑batch custom production.
