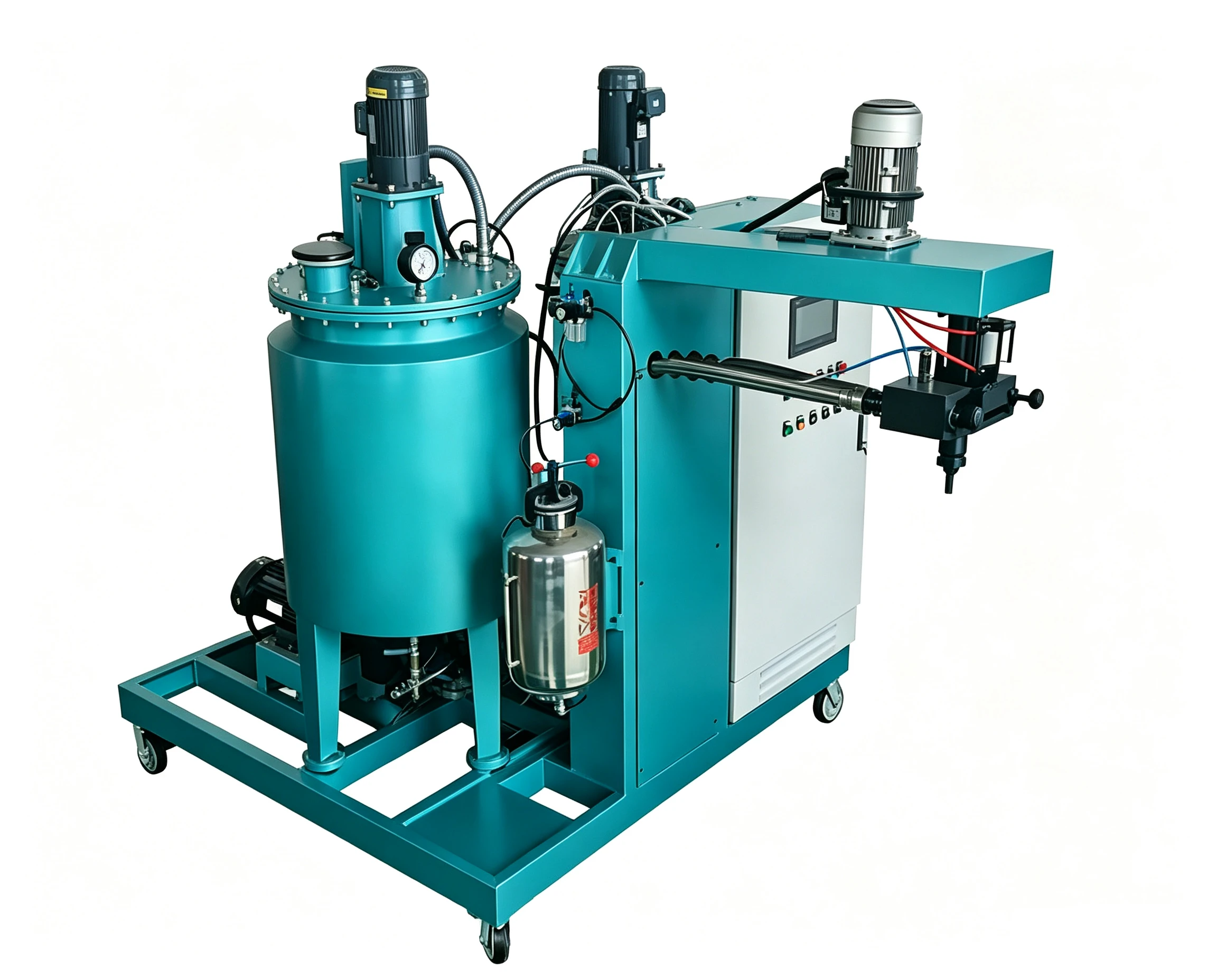

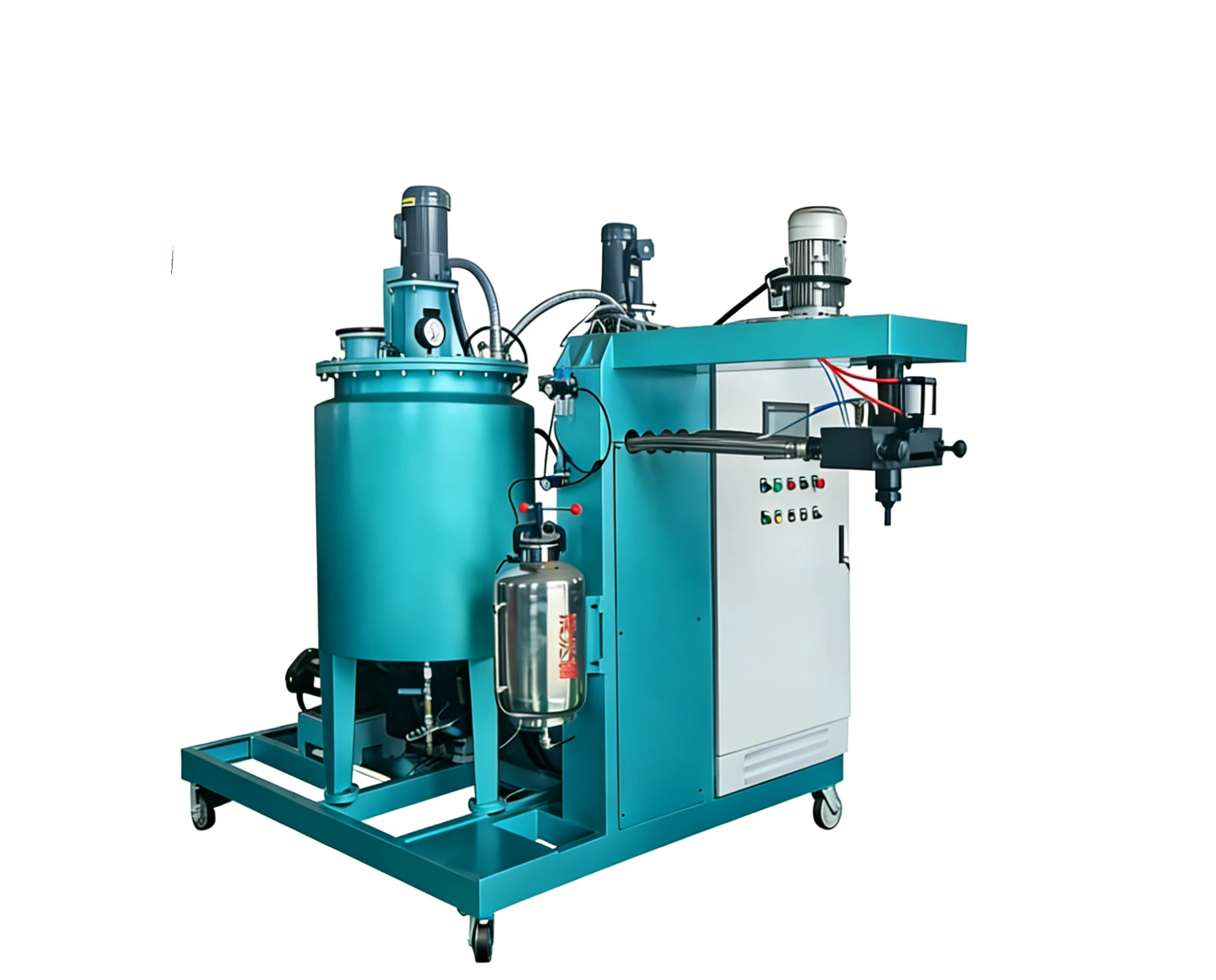

Seal Strip PU Casting Machine
Precision casting system for industrial sealing strips, supporting MOCA and BDO chain extender processes with multi-color flexibility
±0.5% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Specially designed for the production of sealing strips for industrial equipment such as machine tools, cabinets and valves.
This PU casting machine is purpose-built for casting precision sealing accessories used in various industrial equipment. The 2A2B two-component system with an integrated color paste tank supports both MOCA and BDO chain extender processes, enabling flexible multi-color matching to meet the appearance standards of sealing strips for different applications. The BDO room-temperature clean process ensures impurity-free production, perfectly suited for precision equipment workshops. Continuous stable pouring without breakpoints delivers uniform, defect-free long sealing strips, ensuring tighter sealing fit. Vacuum defoaming guarantees dense products without pores, while high-precision metering ensures uniform size and improved sealing reliability. The machine is adaptable to standardized production in high-demand environments.
Operation Workflow
Raw Material & Color Paste Preparation
Prepare CPU prepolymer and chain extender (MOCA or BDO) according to the required mix ratio. Select the appropriate color paste and load it into the dedicated color paste tank.
Tank Loading & Temperature Setting
Load prepolymer into Tank A and chain extender into Tank B. Set Tank A temperature to 30–80°C, and Tank B temperature based on the selected formula (MOCA: 90–115°C; BDO: 25–50°C).
Vacuum Defoaming
Activate the standard vacuum defoaming system to remove bubbles from all components, ensuring a pore-free, dense final product.
Metering, Mixing & Continuous Casting
The PLC-controlled metering system (accuracy ≤±0.3%) dispenses materials precisely. The mixing head operates at 7000–11000 r/min for homogeneous blending. The discharge flow rate is adjustable within 50–800 g/s to enable continuous, breakpoint-free pouring of long sealing strips.
Need a quick quote for your project?
Get a QuoteTechnical Specifications
Standard configuration parameters for the seal strip PU casting machine. Customizations are available upon request.
| Technical Parameter | HF-CPUE-2A2B-Seal-Industrial |
|---|---|
| Discharge | 50～800 g/s |
| Raw Material Mix Ratio | MOCA system: 100:8~13; BDO system: 100:3~6 |
| Tank Volume | 100 / 150 / 220 L |
| Mixing Head Rotational Speed | 7000～11000 r/min |
| Metering Accuracy | ≤±0.3%(Full range) |
| Tank Configuration | 2A2B two-component system + color paste tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA formula (90~115℃) / BDO formula (25~50℃) |
| Vacuum Defoaming | Standard configuration |
| Cleaning System | Automatic circulation cleaning + air purge cleaning |
| Equipment Power | 7.5～11 kW |
| Control System | PLC + Touch Screen + Multi-recipe storage function |
| Applicable Material System | CPU prepolymer + MOCA/BDO chain extenders |
| Warranty Period | 1 Year |
| Certifications | CE, ISO9001 |
Key Features & Advantages
Engineered for high-precision, contamination-free, and continuous production of industrial sealing strips.
2A2B Configuration with Color Paste Tank
Supports flexible multi-color matching to meet the appearance standards of sealing strips for different industrial equipment.
BDO Room-Temperature Clean Process
No impurity pollution in production, perfectly suitable for the stringent requirements of precision equipment workshops.
Continuous Breakpoint-Free Pouring
Ensures uniform and defect-free forming of long sealing strips, resulting in tighter sealing fit and higher reliability.
Vacuum Defoaming for Dense Products
Eliminates pores and voids, producing dense sealing strips with consistent mechanical properties.
High-Precision Metering
Metering accuracy ≤±0.3% across the full range ensures uniform size and improved sealing reliability.
Intelligent PLC Control with Recipe Storage
PLC + touch screen interface with multi-recipe memory simplifies operation, reduces errors, and enables rapid changeovers between formulations and colors.
Optimize Your Sealing Strip Production Line Today
Let our experts help you select the right configuration, color options, and process parameters for your precision equipment workshop. Contact us for a consultation and on-site trial support.
Application Scenarios
Specially designed for the production of sealing strips for industrial equipment such as machine tools, cabinets and valves. Widely suitable for casting of various precision industrial equipment sealing accessories. Supports BDO high-resilience clean formula, meeting the core needs of high-fit sealing, impurity-free and long-strip continuous molding, adapting to standardized production in precision equipment workshops.
