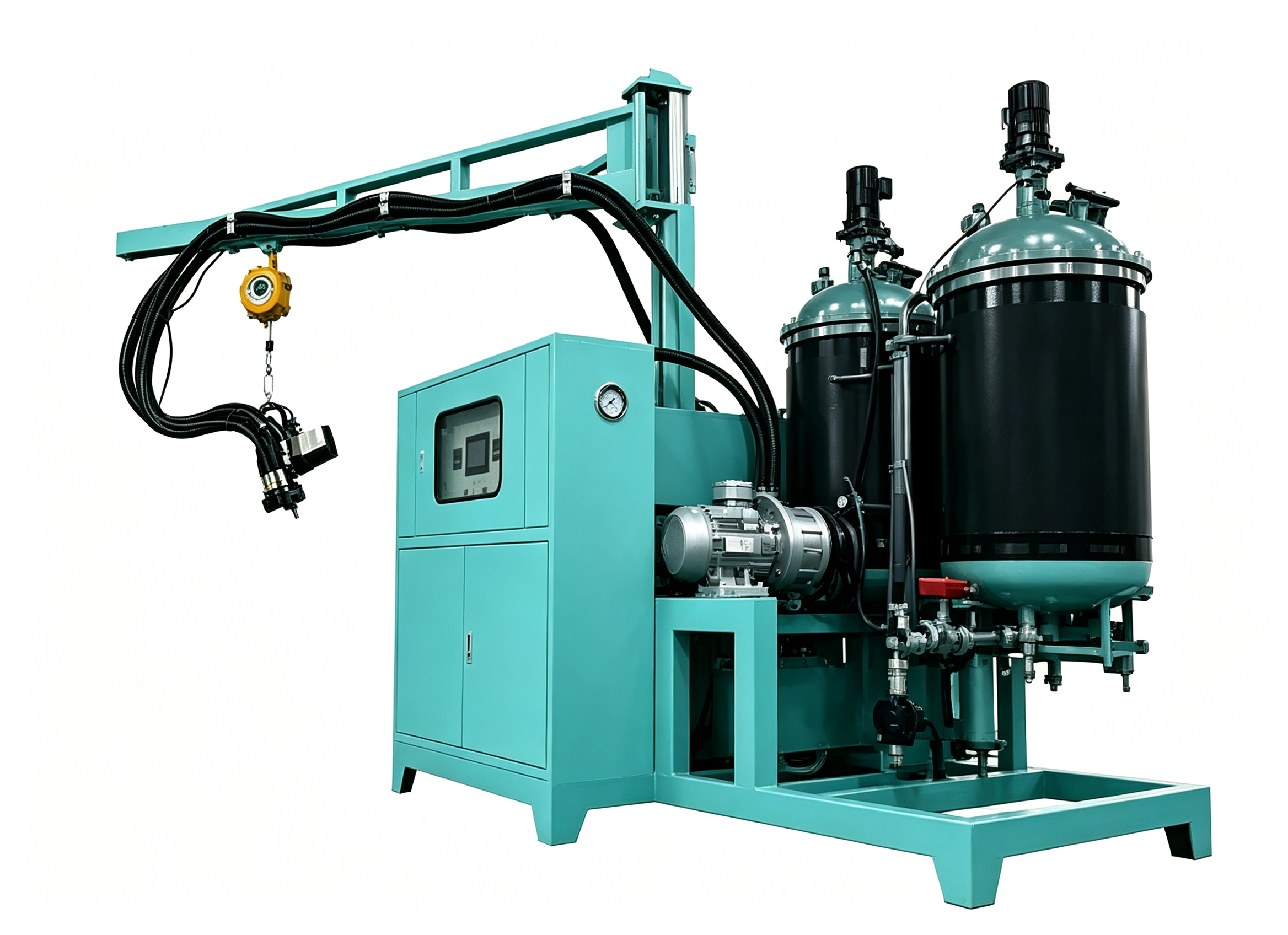

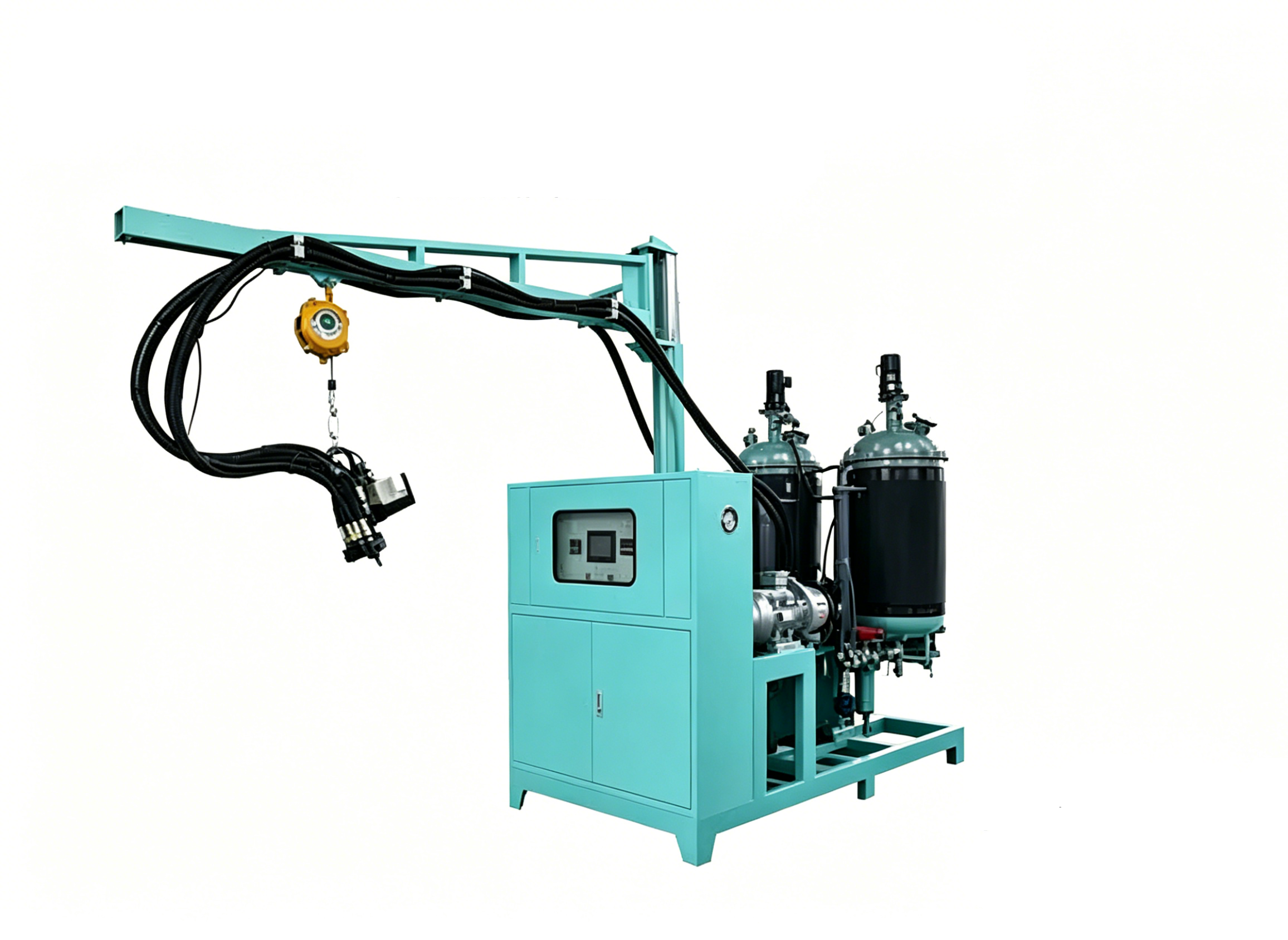

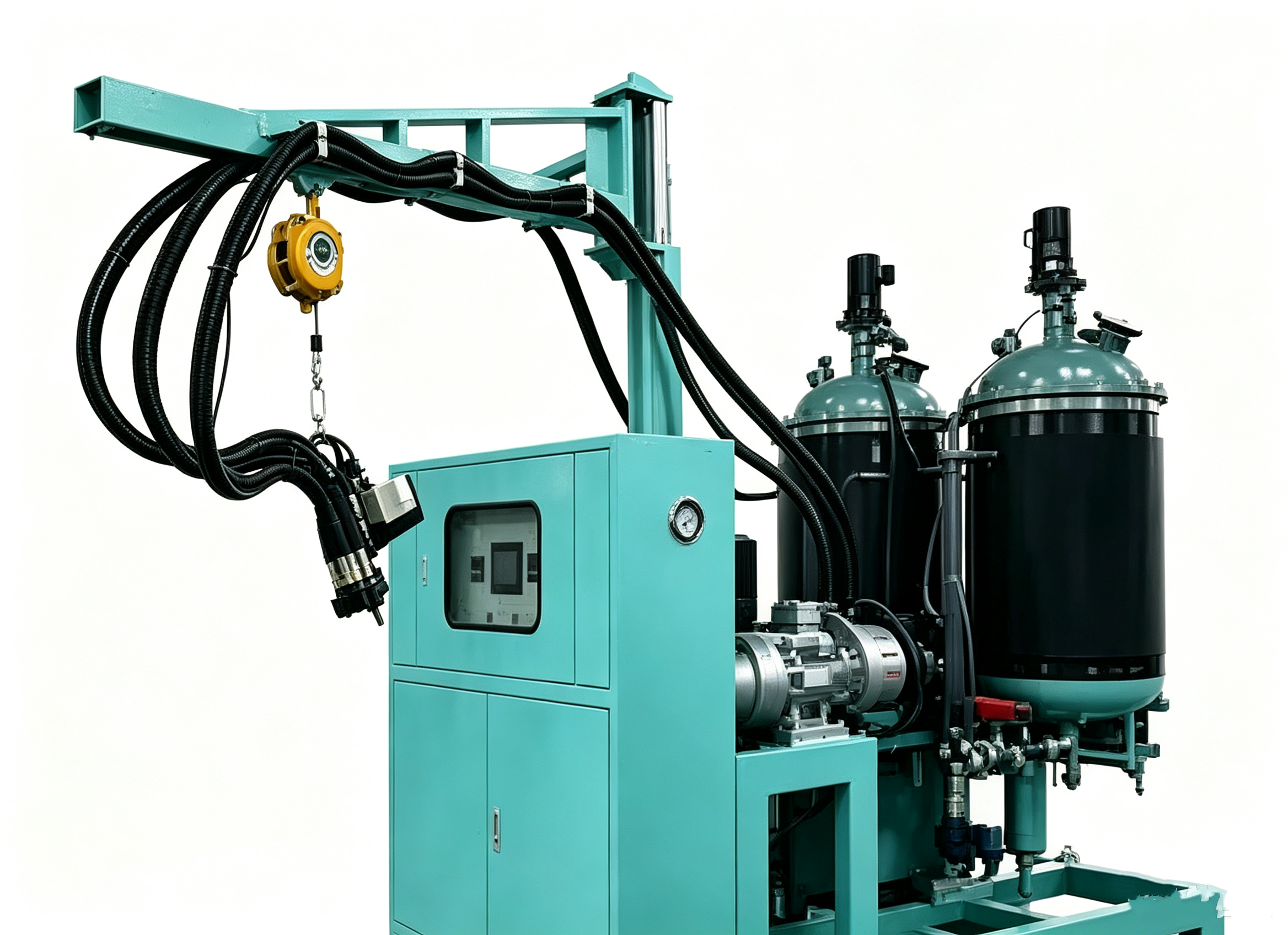

RRIM PU Molding Machine
Reinforced reaction injection molding system for carbon/fiberglass-reinforced PU composites with high-pressure homogenization
±0.5% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Specially designed for RRIM (Reinforced Reaction Injection Moulding) process, widely used in automotive structural parts, agricultural machinery heavy-duty parts, large engineering structural parts, high-end marine accessories and other fields.
This RRIM PU molding machine is purpose-built for the reinforced reaction injection molding process, delivering superior strength and toughness for demanding applications. The system supports carbon fiber, glass fiber and various high-strength fiber reinforced polyurethane materials, meeting the core requirements of high strength, high toughness, impact resistance and wear resistance. The professional RRIM process features high-pressure homogeneous mixing with uniform fiber dispersion, producing products with strength and toughness far exceeding ordinary RIM products, suitable for heavy-duty and impact-resistant scenarios. Accurate two-component metering and proportioning with error ≤±0.3% ensures no delamination or defects in finished products, with strong molding stability that greatly improves yield rate. The adjustable large-flow output supports both integral molding of large structural parts and pouring of small precision reinforced parts. The intelligent multi-formula storage and switching system adapts to different fiber reinforced raw material ratios with simple operation, meeting the needs of multi-category flexible production. The machine is suitable for mass production and customized processing across various industries.
Operation Workflow
Fiber-Reinforced Raw Material Preparation
Prepare polyether polyol and isocyanate according to the target mix ratio (100:90~110). Select appropriate reinforcing fibers (carbon fiber, fiberglass, or other high-strength fibers) and ensure proper pre-conditioning for optimal dispersion.
Tank Loading & Temperature/Pressure Setting
Load polyol into Tank A and isocyanate into Tank B. The 1A1B independent temperature control system maintains 25–45°C with circulation stirring. Set mixing pressure to 150–200 bar for high-pressure homogenization.
High-Pressure Homogeneous Mixing & Fiber Dispersion
The PLC-controlled dosing system (accuracy ≤±0.3% full dynamic range) dispenses materials precisely. High-pressure mixing ensures uniform fiber dispersion throughout the composite, delivering product strength and toughness far exceeding ordinary RIM products.
Mold Filling & Negative Pressure Venting
Inject the reinforced composite material into the mold. The mold negative pressure venting system removes trapped air, while high-pressure enhanced homogenization ensures complete fiber wet-out and void-free molding. The pouring rate is adjustable within 100–2000 g/s for different part sizes.
Request a Customized RRIM Composite Molding Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the RRIM PU molding machine. Customizations including tank capacity and formula options are available.
| Technical Parameter | HF-RRIM-PU-1A1B |
|---|---|
| Pouring Rate | 100～2000 g/s |
| Mix Ratio | Polyether: Isocyanate = 100:90~110 |
| Tank Capacity | 200L / 300L (Optional, Per Tank) |
| Dosing Accuracy | ≤±0.3% (Full Dynamic Range) |
| Tank Configuration | 1A1B Two-Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 25～45℃ |
| Mixing Pressure | 150～200 bar |
| Venting System | Mold Negative Pressure Venting + High-Pressure Enhanced Homogenization |
| Cleaning System | High-Pressure Circulation Cleaning + Air Purging |
| Power | 15～22 kW |
| Control System | PLC + Touch Screen + Multi-Formula Storage |
| Application System | RRIM-PU Carbon Fiber/Fiberglass/High-Strength Fiber Reinforced Composite System |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Key Features & Advantages
Engineered for high strength, precision, and production flexibility in fiber-reinforced composite molding.
Professional RRIM Reinforced Reaction Injection Molding Process
High-pressure homogeneous mixing with uniform fiber dispersion delivers product strength and toughness far exceeding ordinary RIM products, suitable for heavy-duty and impact-resistant scenarios.
Accurate Two-Component Metering & Proportioning
Dosing error ≤±0.3% ensures no delamination or defects in finished products, with strong molding stability that greatly improves yield rate.
Adjustable Large-Flow Output
Pouring rate of 100–2000 g/s supports both integral molding of large structural parts and pouring of small precision reinforced parts with strong equipment versatility.
Intelligent Multi-Formula Storage & Switching
Suitable for different fiber reinforced raw material ratios with easy operation, meeting the needs of multi-category flexible production without lengthy changeover times.
Mold Negative Pressure Venting + High-Pressure Homogenization
Removes trapped air and ensures complete fiber wet-out, delivering void-free composite parts with consistent mechanical properties.
1A1B Independent Temperature Control with Circulation Stirring
Precise temperature control from 25–45°C with continuous circulation stirring ensures uniform material consistency and reliable reaction conditions.
Upgrade Your Composite Molding Capabilities with Professional RRIM Technology
Our engineering team specializes in RRIM reinforced composite solutions. Contact us to discuss your specific material requirements (carbon fiber/fiberglass), part geometries, and production capacity needs.
Application Scenarios
Automotive structural parts, agricultural machinery, engineering structures, high-end marine accessories.
