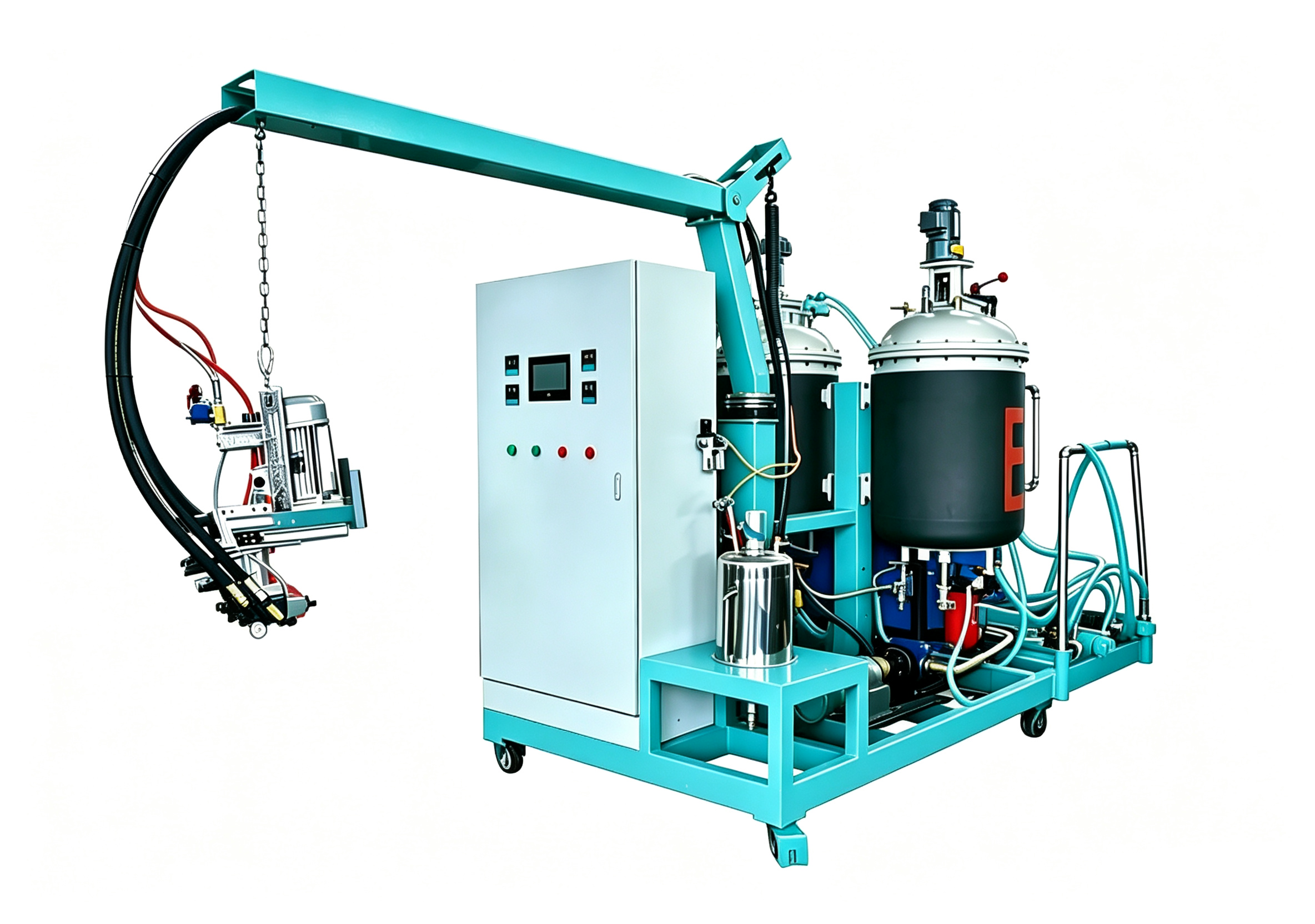

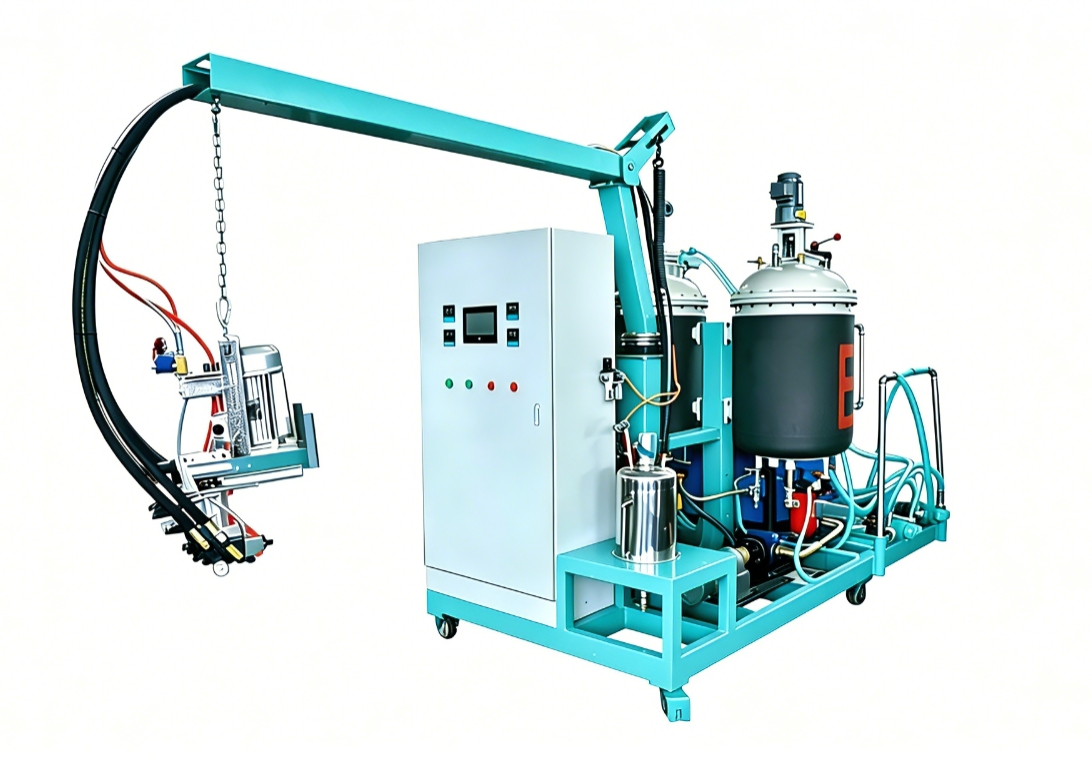

PU Foam Machine for Bicycle Solid Tires
High‑precision foaming system for air‑free polyurethane solid tires with high‑efficiency mass production
Discharge Flow Rate
100～500 g/s
Mix Ratio (A:B)
100 : 90~120
Metering Accuracy
±0.3%
Mixing Uniformity
≥98%
Product Overview
This machine is mainly used for mass production of air‑free polyurethane solid tires for commuter bicycles (including shared bikes), mountain bikes, children's bikes, wheelchairs, golf carts, electric scooters and other medium & light‑duty vehicles.
This PU foam machine is purpose‑built for the mass production of air‑free polyurethane solid tires for a wide range of medium and light‑duty vehicles. The polyurethane microcellular solid structure completely eliminates air leakage and blowout issues inherent to pneumatic tires. Featuring excellent aging and abrasion resistance, the tires enjoy long service life, cutting maintenance frequency and full‑lifecycle costs. Equipped with self‑developed servo‑driven gear metering pumps and high‑shear mixing heads, the machine delivers metering accuracy of ±0.5% and maintains material mixing uniformity above 98%, ensuring uniform cell structure and complete chemical reaction. The intelligent production control system dynamically adjusts foaming temperature in real time with precision within ±1℃, maintaining stable foaming ratio and material hardness across batches. The composite production mode combining single‑cavity and multi‑mold linkage drastically boosts productivity. Line changeover is shortened to within 1.5 hours, enabling flexible response to multi‑variety orders. Adopting environment‑friendly water foaming technology, the machine complies with RoHS & REACH standards and controls raw material loss at 5%–7%, achieving green manufacturing and higher profit margins.
Operation Workflow
Raw Material Preparation & Formula Selection
Prepare polyurethane raw materials (A:B = 100:90–120). Select the appropriate formula for the target tire size (12–29 inches) and tread pattern via the PLC touch screen.
Tank Loading & Temperature Setting
Load materials into the 200 L tanks. The intelligent temperature control system dynamically adjusts foaming temperature with precision within ±1℃ to maintain stable foaming ratio and material hardness.

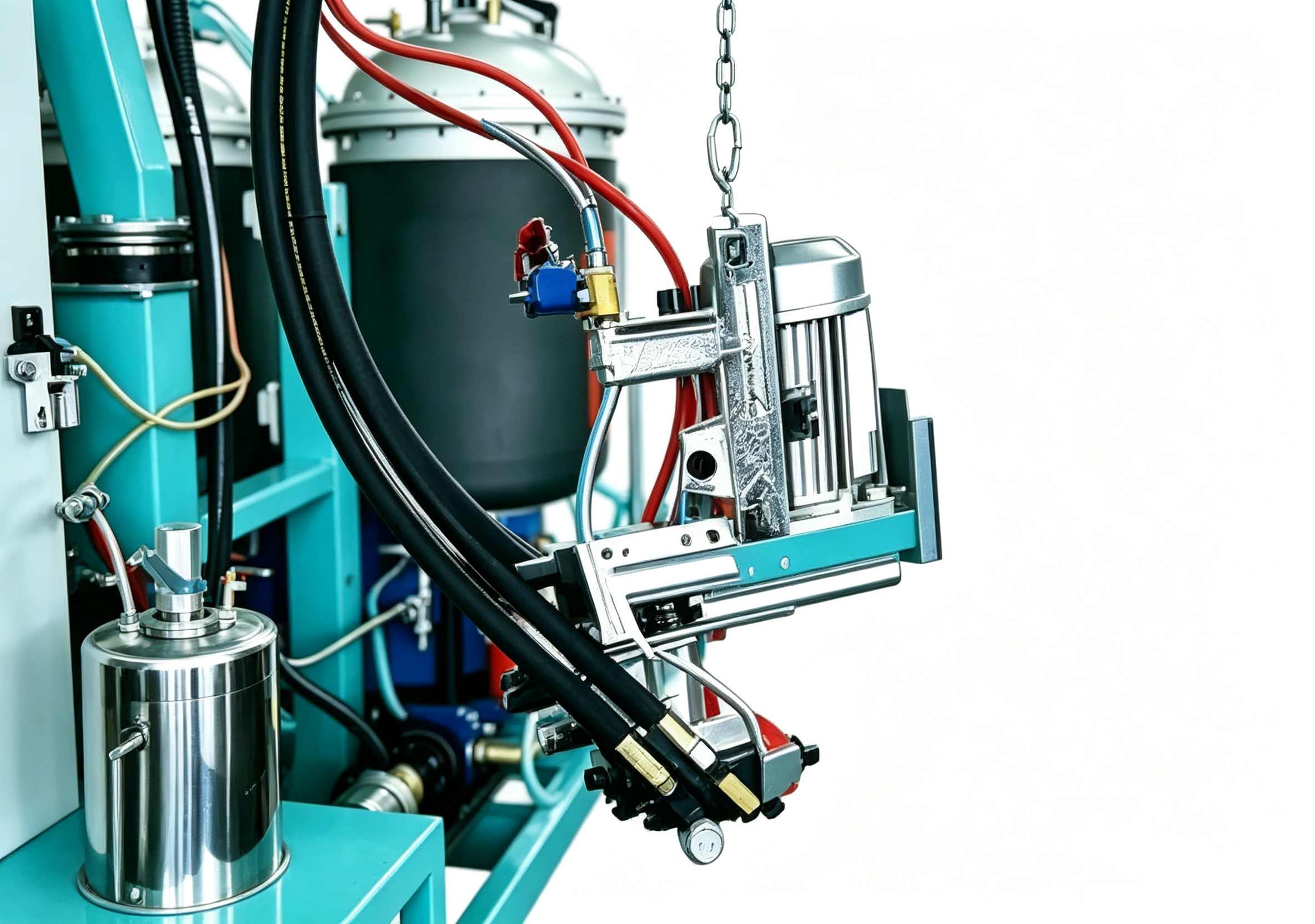

High‑Precision Mixing & Pouring
The servo‑driven gear metering pumps and high‑shear mixing head operate at 4,000–5,000 r/min with metering accuracy ±0.3%. Material mixing uniformity remains above 98% for uniform cell structure and complete reaction.
Multi‑Mold Molding & Curing
The composite production mode combines single‑cavity and multi‑mold linkage to drastically boost productivity. Tires range from 12 to 29 inches with various tread patterns. Line changeover is shortened to within 1.5 hours.
Request a Customized Bicycle Solid Tire Foaming Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the bicycle solid tire PU foam machine. Customizations and modular upgrades are available upon request.
| Technical Parameter | HF-LPM-1A1B-T |
|---|---|
| Discharge Flow Rate | 100–500 g/s |
| Raw Material Mix Ratio (A:B) | 100:90–120 |
| Tank Volume | 200 L |
| Total Motor Power | 15 kW |
| Mixing Head Rotational Speed | 4,000–5,000 r/min |
| Metering Accuracy | ±0.3% |
| Warranty Period | 1 year |
| Net Weight | 1,000 kg |
| Certifications | CE compliant, EN 60204‑1, ISO9001 |
| Brand Name | Haifeng |
Key Features & Advantages
Engineered for high‑precision mixing, mass production efficiency, and eco‑friendly manufacturing of bicycle solid tires.
High‑Precision Mixing System for Superior Tire Performance
Servo‑driven gear metering pumps and high‑shear mixing heads deliver ±0.3% accuracy and mixing uniformity >98%, ensuring uniform cell structure and complete chemical reaction for consistent tire quality.
Eliminate Tire Blowout Risks with Outstanding Durability
Microcellular solid structure completely eliminates air leakage and blowout risks. Excellent aging and abrasion resistance ensure long service life, cutting maintenance frequency and full‑lifecycle costs.
High‑Efficiency Mass Production & Ultra‑Fast Line Change
Single‑cavity + multi‑mold linkage drastically boosts productivity. Supports 12–29 inch tires with various tread patterns. Line changeover ≤1.5 hours for flexible response to multi‑variety orders.
Intelligent Temperature Control & Online Inspection
Dynamic real‑time temperature control with precision ±1℃ maintains stable foaming ratio. Integrated online inspection tests density, hardness and elasticity, with defective auto‑rejection and yield >98%.
Eco‑Friendly Formula for Cost Reduction & Profitability
Water foaming technology replaces polluting processes, complying with RoHS & REACH standards. Raw material loss controlled at 5%–7%, realizing green manufacturing and higher profit margins.
Flexible Modular Upgrade for Full‑Process Automation
Modular upgrade service transforms manual or semi‑automatic lines into fully automatic ones. Complete line covers raw material pretreatment, intelligent mixing, integrated molding and automatic sorting.
Scale Up Your Bicycle Tire Production with High‑Precision Solid Tire Foaming Technology
Our engineering team specializes in polyurethane solid tire solutions. Contact us to discuss your specific tire sizes, tread pattern requirements, and production line automation needs. Modular upgrade services are available for existing lines.
Application Scenarios
Commuter bikes, shared bikes, mountain bikes, children's bikes, wheelchairs, golf carts, and electric scooters.
