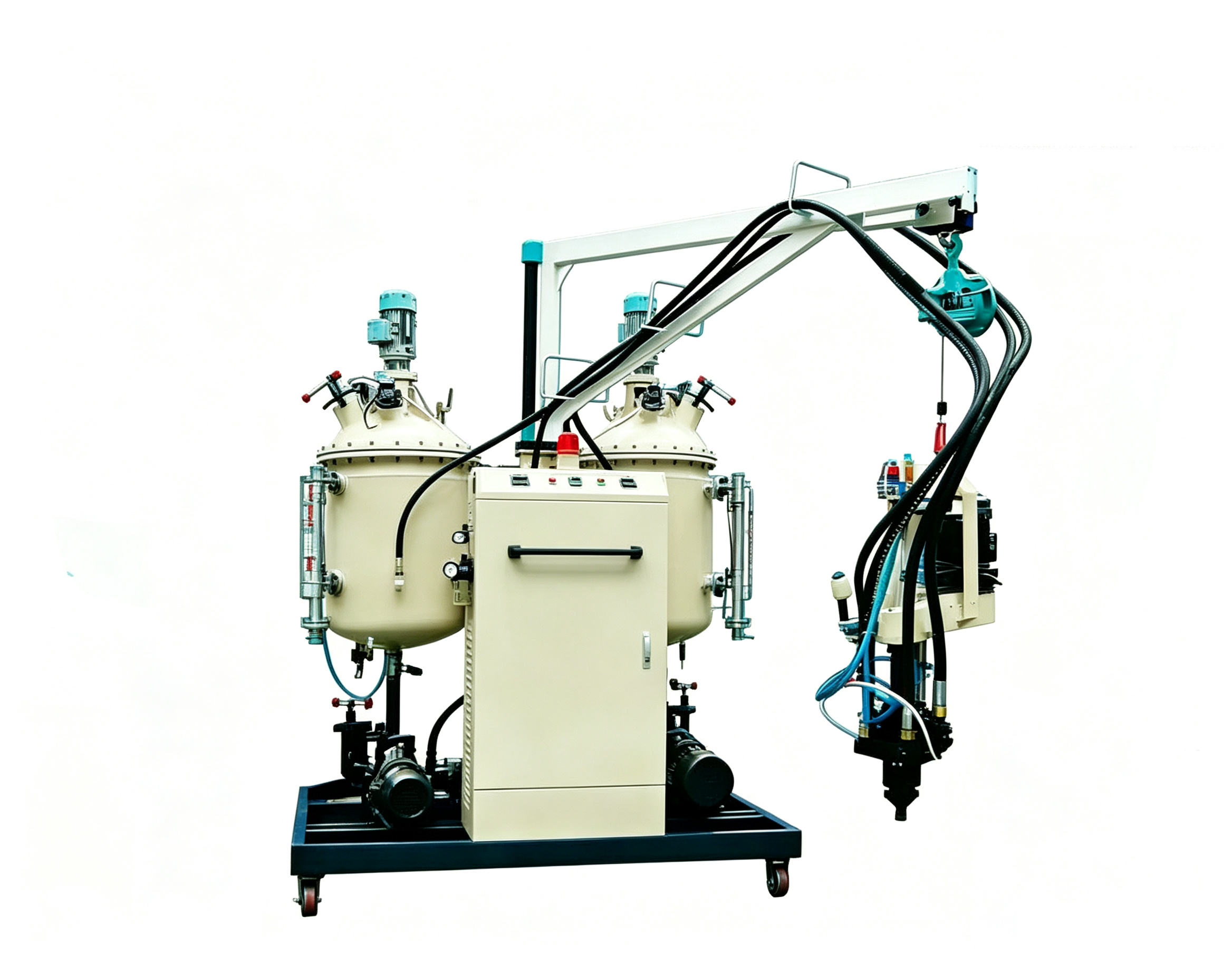

PU Foam Machine for Auto Dashboards
Precision low-pressure foaming system for automotive dashboards with closed-loop flow control
Output Flow Range
250～670 g/s
Mix Ratio (A:B)
100 : 80~120
Metering Accuracy
±0.3%
Mixing Head Speed
3,500‑6,000 rpm
Product Overview
Specially optimized for automotive interior precision molding, with closed-loop flow control and three independent temperature control systems to deliver high-quality, odorless and consistently stable dashboard products for standardized mass production.
Many automotive interior manufacturers face bubble defects, surface cracking, batch color difference and unstable physical properties when producing PU dashboards. Our Haifeng HF-LPM-1A1B-A is specially designed to address these challenges. The machine features closed-loop flow control with Coriolis mass flowmeter for real-time monitoring and PLC-adjusted servo motor dynamic pressure compensation, fundamentally eliminating ratio drift risk and greatly reducing reject rate with precise dimensional consistency. Three independent temperature control units cover raw material storage tanks, full-circuit water jacket for metering pipelines, and mixing head body, ensuring stable material temperature throughout the whole process regardless of seasonal changes, completely eliminating batch color difference and physical property fluctuation. Full PLC automation with touch screen HMI enables one‑click formula recall during mold change, eliminating unreliable manual pouring. The modular design allows flexible integration with existing lines and future upgrades. Finished products combine high strength with light weight, excellent flexibility and impact toughness, with no deformation or peeling after long‑term use. The solvent‑free cleaning process complies with automotive interior environmental standards, ensuring odorless and healthy finished products.
Operation Workflow
Raw Material Preparation & Tank Loading
Load polyol and isocyanate into the 250L standard tanks. Set the three independent temperature control units (tanks, pipelines, mixing head) to the required process temperatures.
Formula Selection & Parameter Setting
Select the appropriate formula from the PLC touch screen for the specific dashboard model. Each mold’s pouring parameters are stored as independent formulas for one‑click recall.
Closed‑Loop Flow Control & Metering
The Coriolis mass flowmeter monitors flow in real time while the PLC adjusts servo motor speed for dynamic pressure compensation, maintaining ratio accuracy within ±0.3% and eliminating drift.
Mixing, Pouring & Molding

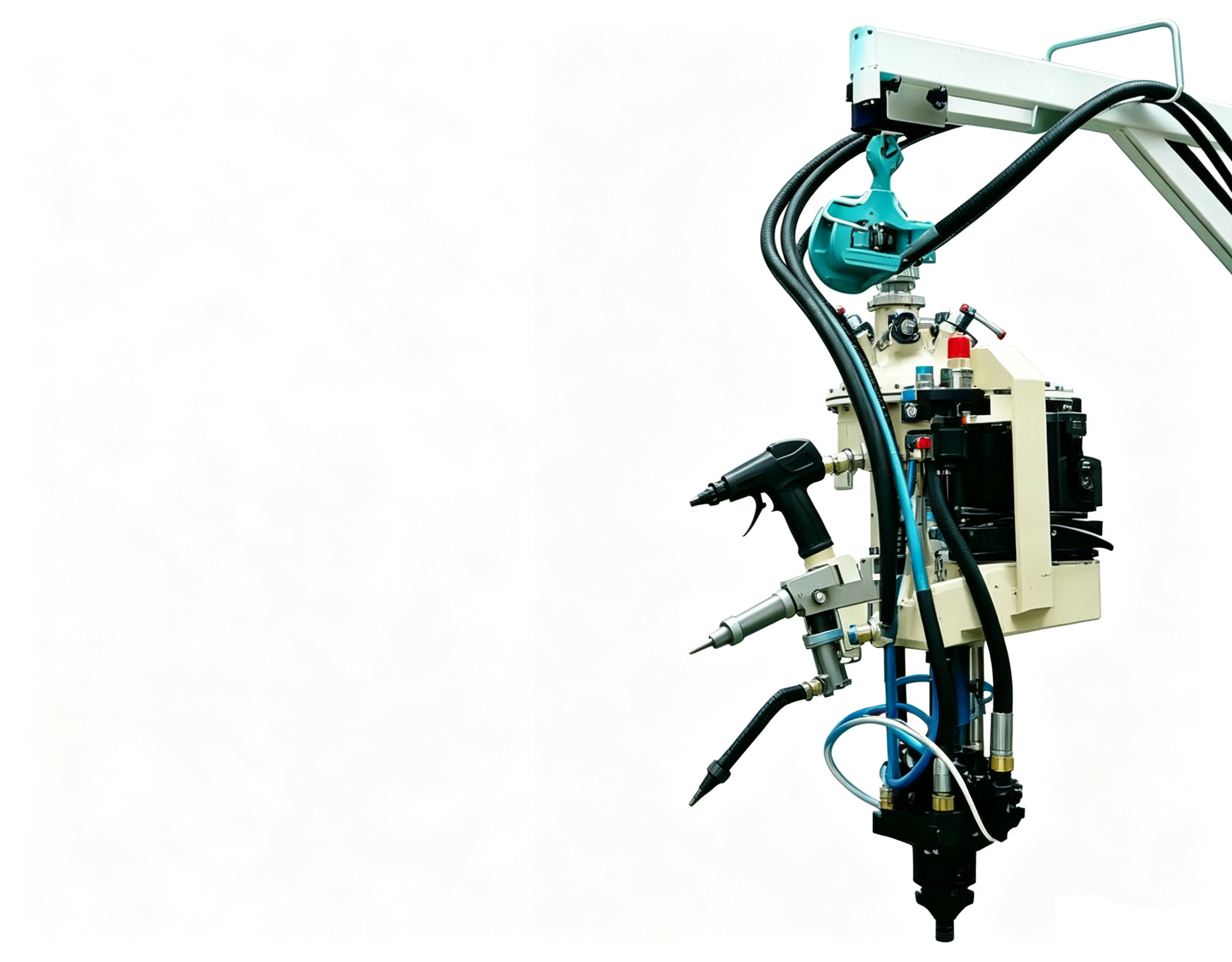

The mixing head operates at 3500–6000 rpm for homogeneous blending. Output flow of 250–670 g/s is injected into the dashboard mold. Temperature stability ensures consistent cream time, gel time and foam microstructure.
Request a Customized Automotive Dashboard Foaming Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the automotive dashboard PU foam machine. Customizations including tank capacity and integration options are available.
| Technical Parameter | HF-LPM-1A1B-A |
|---|---|
| Output Flow | 250–670g/s |
| Mixing Ratio | A:B = 100:80–120 |
| Raw Material Tank Capacity | 250L standard tank |
| Installed Power | 11.5kW |
| Mixing Head Speed | 3500–6000rpm |
| Metering Accuracy | ±0.3% |
| Total Machine Weight | 1300kg |
| Warranty | 1-year full machine warranty |
| Certifications | CE standard, EN 60204-1 electrical safety, ISO9001 quality system. |
| Brand | Haifeng |
Key Features & Advantages
Engineered for precision, consistency, and flexibility in automotive interior foaming.
Closed‑Loop Flow Control for High First‑Pass Yield
Coriolis mass flowmeter with real‑time monitoring and PLC‑adjusted dynamic pressure compensation eliminates ratio drift, greatly reducing reject rate and ensuring precise dimensional consistency.
Three Independent Temperature Control Units
Covers raw material tanks, metering pipelines, and mixing head body. Ensures stable temperature throughout the process regardless of seasonal changes, eliminating batch color difference and property fluctuation.
Full PLC Automation for Labor‑Saving Operation
PLC + touch screen HMI with formula storage. One‑click recall during mold change eliminates manual errors, reduces labor dependence and training costs.
Modular Design for Flexible Line Integration
Split modular architecture allows flexible adjustment of tank volume, mixing head position and manipulator orientation. Easy to disassemble and relocate for future line upgrades.
Premium Finished Performance – Eco‑Friendly & Odorless
Combines high strength, light weight, flexibility and impact toughness. Solvent‑free cleaning complies with automotive interior environmental standards, ensuring odorless and healthy products.
Wide Compatibility with Interior Components
Suitable for instrument panels, steering wheels, door trims, seats, armrests, headrests, sound insulation cotton, and trunk mats. Compatible with rigid, semi‑rigid and flexible PU.
Elevate Your Automotive Interior Production with Precision Dashboard Foaming
Our engineering team specializes in automotive interior PU solutions. We provide full Turnkey Projects for complete production lines. Contact us to discuss your specific dashboard models, quality requirements, and production line integration needs.
Application Scenarios
Dashboards, steering wheels, door trims, seats, armrests, headrests, and trunk mats with PU foam.
