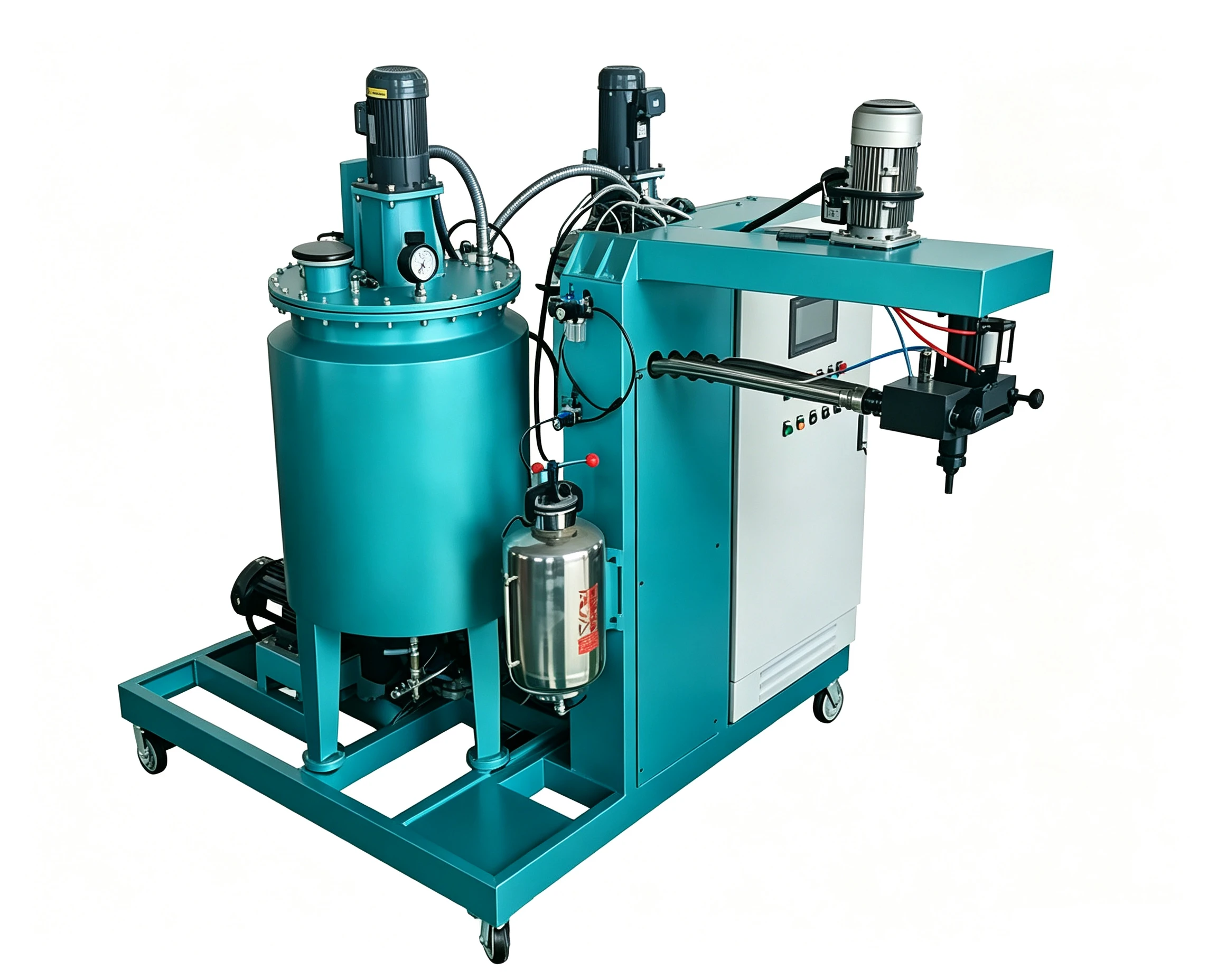

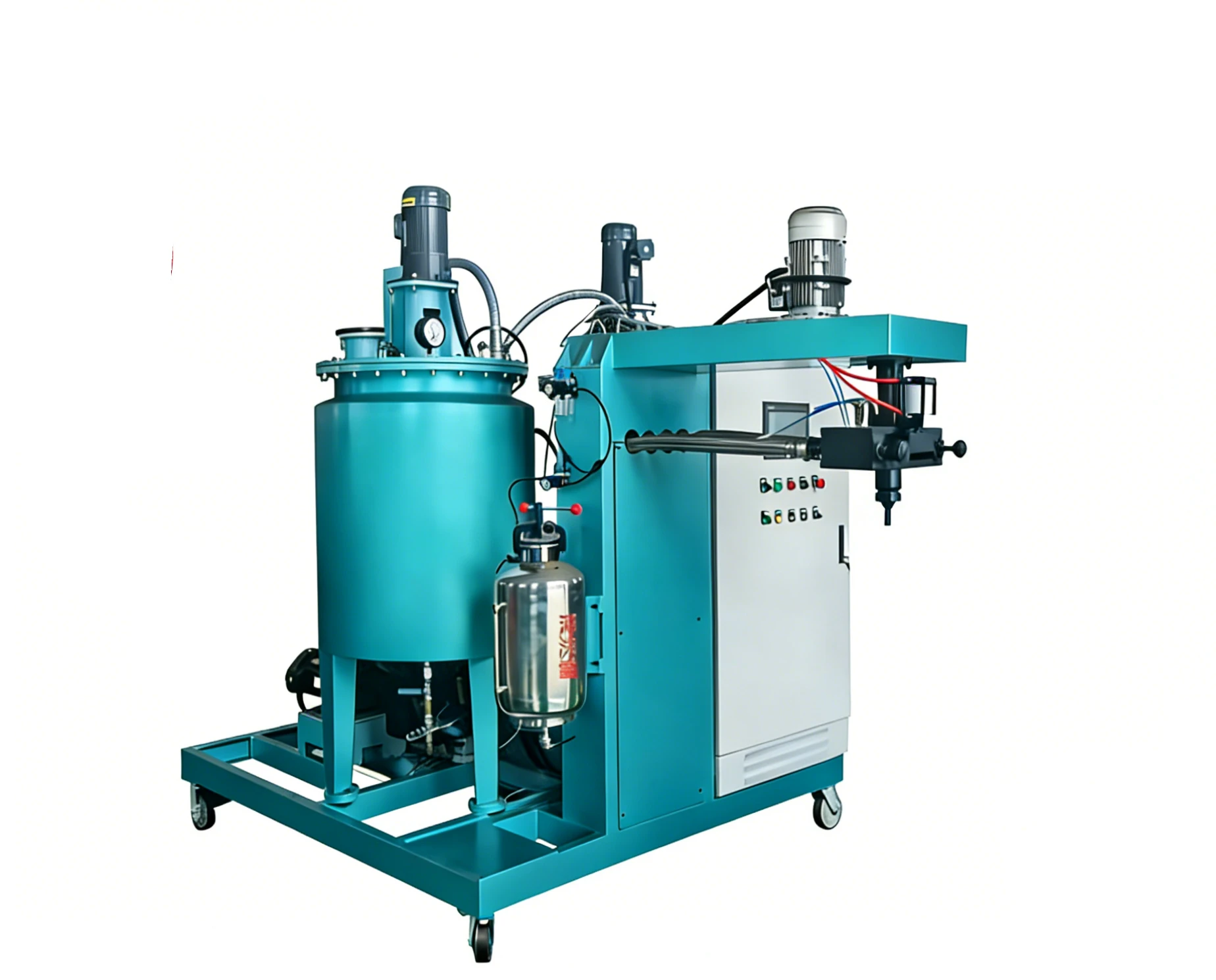

PU Cast Unit for Mine Screen Plate
Large-flow casting system for mining screen plates, supporting wear and impact resistant additives with dual chain extender processes
±0.3% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Specially designed for large-scale production of polyurethane screen plates in mining, metallurgy and coal industries, widely suitable for harsh working conditions such as ore screening, coal screening and metallurgical raw material classification.
This PU cast unit is purpose-built for the large-scale production of polyurethane screen plates used in mining, metallurgy and coal industries. The 2A2B two-component system includes a dedicated wear and impact resistant additive tank, greatly improving the wear and tear resistance of screen plates to withstand harsh mining screening conditions. The system supports flexible switching between MOCA and BDO chain extenders, allowing adjustment of product hardness and strength for different screening scenarios. With large-flow stable pouring (100–1500 g/s), the machine is perfectly suited for large-size screen plate molds, achieving full filling without holes and ensuring uniform product structure. Stable and reliable operation supports mass continuous production, effectively improving production efficiency and yield of mine screen plates. The machine meets the core production requirements of high load, long life and tear resistance for mine screen plates.
Operation Workflow
Raw Material & Additive Preparation
Prepare CPU prepolymer and chain extender (MOCA or BDO) according to the target mix ratio. Select appropriate wear and impact resistant additives and load into the dedicated additive tank.
Tank Loading & Temperature Setting
Load prepolymer into Tank A and chain extender into Tank B. Set Tank A temperature to 30–80°C, and Tank B temperature based on the selected formula (MOCA: 90–115°C; BDO: 25–50°C).
Vacuum Defoaming
Activate the vacuum defoaming system to achieve vacuum level ≤-0.095MPa, removing bubbles to ensure dense, hole-free screen plates with uniform structure.
Large-Flow Metering, Mixing & Casting
The PLC-controlled dynamic metering system (accuracy ≤±0.3% full range) dispenses materials precisely. The mixing head operates at 7000–11000 r/min for homogeneous blending. The large-flow pouring rate (100–1500 g/s) ensures full filling of large-size screen plate molds.
Request a Customized Mine Screen Plate Casting Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the mine screen plate cast unit. Customizations are available upon request.
| Technical Parameter | HF-CPUE-2A2B-Screen |
|---|---|
| Pouring Rate | 100～1500 g/s |
| Raw Material Ratio | MOCA: 100:10~13; BDO: 100:4~6 |
| Tank Capacity | 220 L |
| Mixing Head Speed | 7000～11000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 2A2B two-component + wear & impact resistant additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 11～15 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Features & Advantages
Engineered for durability, impact resistance, and mass production efficiency in mining screening applications.
2A2B Configuration with Wear & Impact Resistant Additives
Greatly improves the wear and tear resistance of screen plates, suitable for harsh mining screening conditions including ore, coal and metallurgical raw material classification.
Large-Flow Stable Pouring
Pouring rate of 100–1500 g/s perfectly suits large-size screen plate molds, achieving full filling without holes and ensuring uniform product structure.
MOCA/BDO Dual Chain Extender Switching
Flexibly adjust product hardness and strength to suit different screening scenarios, from ore screening to coal processing and metallurgical classification.
Stable & Reliable Mass Production
Designed for continuous mass production, effectively improving the production efficiency and yield of mine screen plates while maintaining consistent quality.
Vacuum Defoaming (≤-0.095MPa)
Eliminates bubbles and voids, ensuring dense, hole-free screen plates with consistent mechanical properties for demanding mining applications.
Intelligent PLC Control with Multi-Formula Storage
PLC + touch screen interface with multiple formula memory simplifies operation, reduces errors, and enables rapid changeovers between formulations for different screening applications.
Upgrade Your Mine Screening Operations with Durable PU Screen Plates
Our engineering team specializes in high-performance mining screening solutions. Contact us to discuss your specific ore types, screening conditions, and production capacity requirements.
Application Scenarios
Specially designed for large-scale production of polyurethane screen plates in mining, metallurgy and coal industries, widely suitable for harsh working conditions such as ore screening, coal screening and metallurgical raw material classification. It can achieve high strength, impact resistance and wear resistance through formula switching, meeting the core production requirements of high load, long life and tear resistance for mine screen plates.
