PU Cast Unit for Pipe Lining
High-precision casting system for internal pipeline lining in chemical, mining & wastewater treatment. Supports MOCA anti-corrosion formulations for durable, wear-resistant pipe protection.
Pouring Rate
100 – 1500 g/s
Metering Accuracy
≤ ±0.5%
Tank Configuration
2A2B + Anti-corrosion tank
Certifications
CE, ISO9001
Product Overview
A versatile casting machine for continuous production of polyurethane elastomer linings inside pipes of various diameters, offering exceptional chemical resistance and mechanical durability.

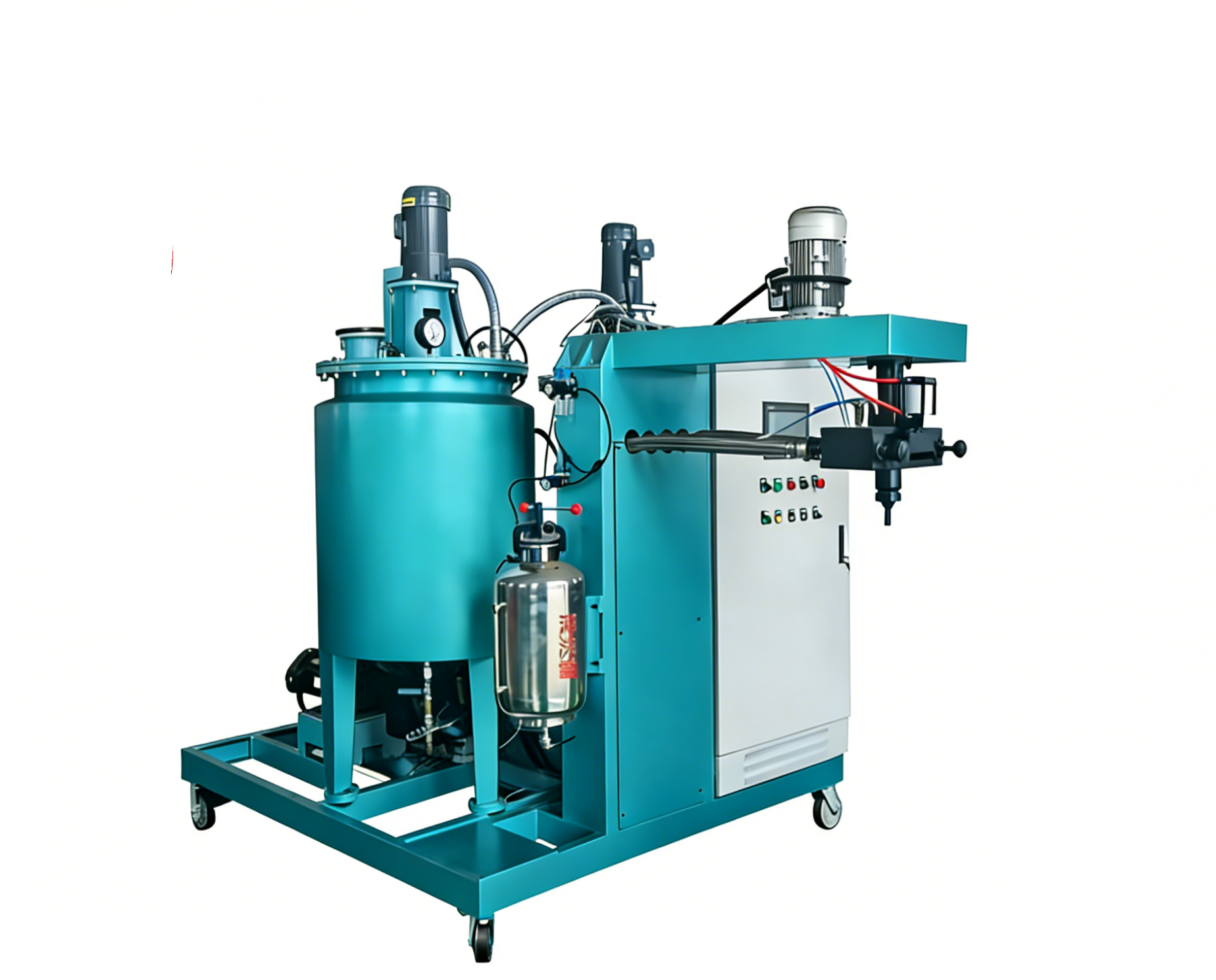

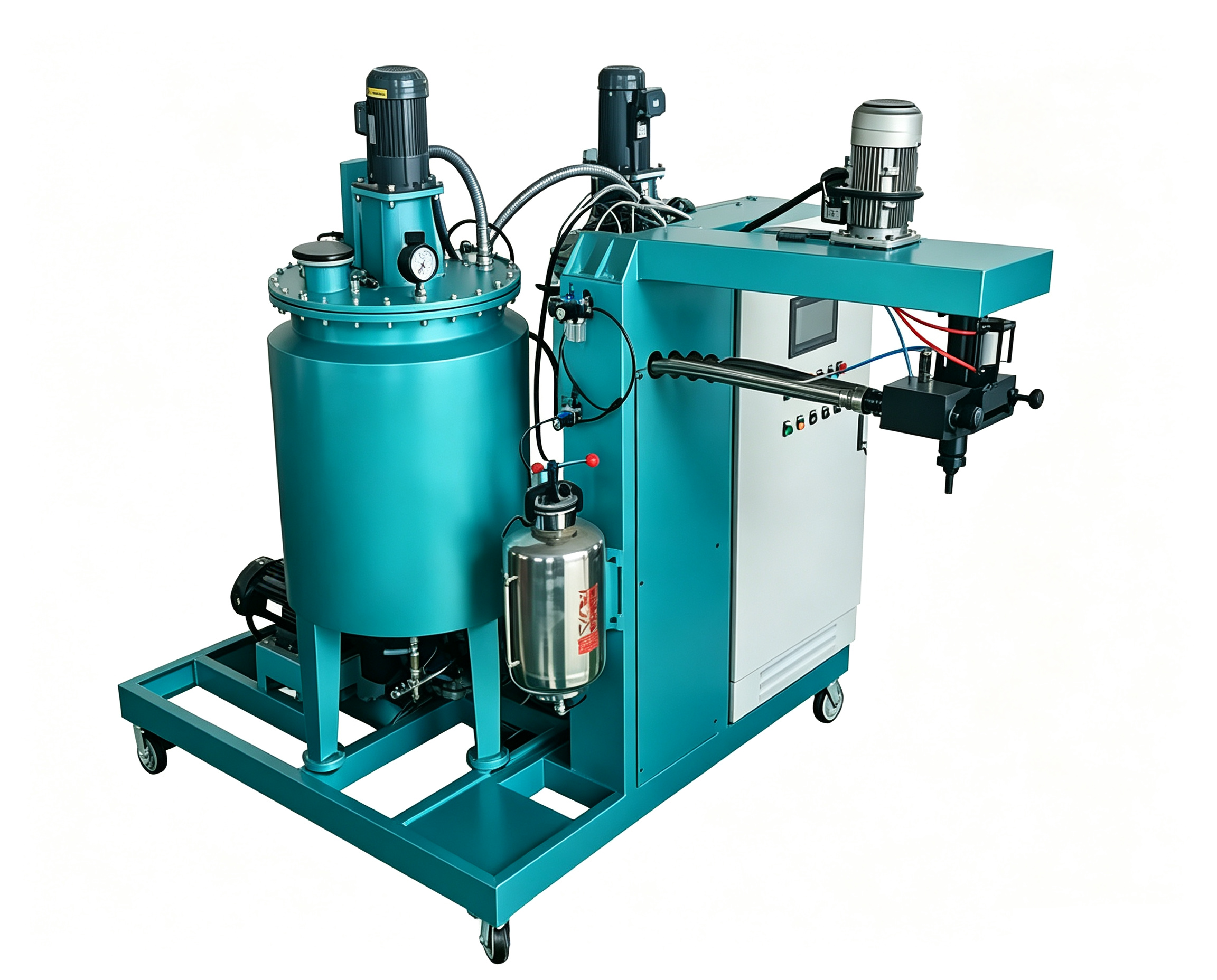

The HF-CPUE-2A2B-PipeLiner is a state-of-the-art polyurethane elastomer casting machine specifically developed for internal pipeline lining applications. It features a 2A2B configuration with an additional anti-corrosion additive tank, enabling precise formulation of MOCA and BDO chain extenders. The system delivers a continuous, stable casting process that ensures uniform liner thickness without voids, significantly extending service life and operational reliability. With advanced PLC control, multiple recipe storage, and high-accuracy metering (≤ ±0.5%), it meets the most stringent requirements for corrosion-resistant and wear-resistant pipe linings in harsh environments.
Pipe Lining Production Workflow
Raw Material Preparation
Load prepolymer and chain extenders (MOCA / BDO) into respective heated tanks; add anti-corrosion agent into the auxiliary tank as required.
Vacuum Degassing
Apply vacuum (≤ -0.095 MPa) to remove moisture and dissolved gases from all components, ensuring bubble-free casting.
Metering & Mixing
Precisely meter the components at the set ratio (e.g., MOCA 100:10~13 or BDO 100:4~6) and mix at high speed (6,000–10,000 rpm) to achieve uniform dispersion.
Pipe Lining Casting & Curing
Inject the mixed elastomer into the rotating pipe mould under controlled temperature and flow rate; allow curing under controlled conditions, then perform final inspection.
Request a Quote for Your Pipe Lining Project
Contact UsTechnical Specifications
All data are based on standard factory testing conditions. Values are for reference; actual performance may vary with formulation and operating environment.
| Technical Parameter | |
|---|---|
| Model | HF‑CPUE‑2A2B‑PipeLiner |
| Output Range | 100 – 1500 g/s |
| Mixing Ratio (MOCA) | 100 : 10 ~ 13 |
| Mixing Ratio (BDO) | 100 : 4 ~ 6 |
| Tank Capacity | 150 / 220 L |
| Mixing Head Speed | 6000 – 10000 r/min |
| Metering Accuracy | ≤ ±0.5% (dynamic full‑scale) |
| Tank Configuration | 2A2B + anti‑corrosion additive tank |
| Temperature Control | A tank: 30~80°C; B tank (MOCA): 90~115°C; BDO: 25~50°C |
| Vacuum Degassing | ≤ -0.095 MPa |
| Cleaning System | High‑pressure circulation cleaning + air purge |
| Power Consumption | 11 – 15 kW |
| Control System | PLC + touch screen + multi‑recipe storage |
| Applicable Systems | CPU prepolymer + MOCA/BDO chain extenders |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Built for corrosion-resistant pipe lining applications
The HF-CPUE-2A2B-PipeLiner integrates high efficiency, precision, durability, and corrosion resistance to fully meet the demands of high-volume continuous pipe lining production.
2A2B + Anti-Corrosion Additive Tank
The dedicated additive tank allows precise incorporation of corrosion inhibitors, significantly improving resistance to acids, alkalis, and aggressive chemicals – ideal for heavy-duty corrosive service.
Continuous Stable Casting Process
Produces linings with uniform thickness and no porosity, ensuring effective long-term protection and reducing the risk of leaks or premature failure.
Dual Chain Extender Flexibility
Supports both MOCA and BDO extenders, enabling quick formulation changeover to suit different media and pipeline requirements.
High-Capacity Output
With a maximum output of 1500 g/s, the machine easily handles large-diameter pipes and high-volume continuous production.
Advanced PLC & Recipe Management
Store multiple recipes; automatic parameter recall ensures repeatability and reduces setup time between batches.
Built-for-Duty Reliability
Robust construction, high-precision metering, and integrated cleaning systems guarantee stable operation even in harsh industrial environments.
Ready to Upgrade Your Pipeline Protection?
Contact our engineering team to discuss your specific pipe lining requirements and get a tailored solution.
Industries & Applications
Designed for internal pipe lining production in chemical, mining, and wastewater treatment industries, meeting the core requirements of abrasion resistance, anti-corrosion, scale prevention, and long-term protection.
