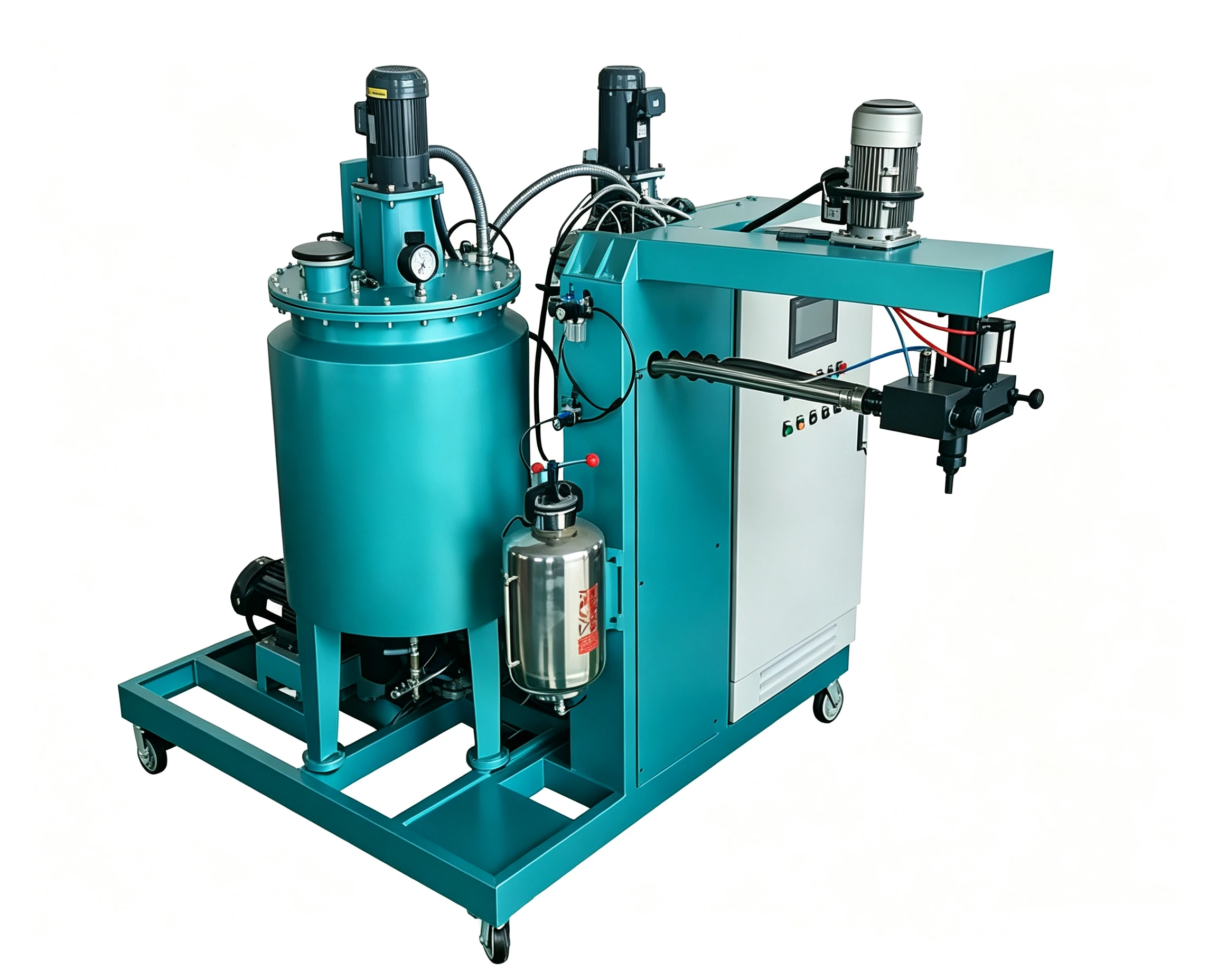

PU Cast Unit for Submarine Cable Block
Specialized casting system for submarine communication/power cable fixing blocks, supporting BDO hydrolysis-resistant corrosion-resistant formula
±0.5% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Specially designed for the production of submarine communication/power cable fixing blocks, widely suitable for casting of cable fixing accessories in deep sea and offshore areas.
This PU cast unit is purpose-built for manufacturing cable fixing blocks used in submarine communication and power cable systems. The 1A1B independent temperature control two-component system supports both MOCA and BDO chain extender processes, with the BDO hydrolysis-resistant formula delivering excellent seawater corrosion resistance for long-term immersion in harsh submarine conditions. Vacuum defoaming (≤-0.095MPa) ensures dense, pore-free products that resist water flow impact and fix cables firmly without loosening. The system supports flexible switching between dual chain extenders, allowing product toughness adjustment to adapt to different sea area requirements. With stable and reliable operation, the machine is ideal for mass production of multi-specification cable fixing blocks, ensuring the stability of submarine cable laying and operation.
Operation Workflow
Raw Material Preparation
Prepare CPU prepolymer and chain extender (MOCA or BDO) according to the target mix ratio. Select the appropriate formula based on the specific sea area application requirements.
Tank Loading & Independent Temperature Setting
Load prepolymer into Tank A and chain extender into Tank B. The 1A1B independent temperature control system allows precise setting: Tank A at 30–80°C, Tank B according to selected formula (MOCA: 90–115°C; BDO: 25–50°C).
Vacuum Defoaming
Activate the vacuum defoaming system to achieve vacuum level ≤-0.095MPa, thoroughly removing bubbles to ensure dense, pore-free products that can withstand high water pressure and flow impact in deep-sea environments.
Metering, Mixing & Casting
The PLC-controlled dynamic metering system (accuracy ≤±0.3% full range) dispenses materials precisely. The mixing head operates at 7000–11000 r/min for homogeneous blending. The pouring rate is adjustable within 80–1000 g/s to accommodate different cable block sizes and specifications.
Request a Customized Submarine Cable Block Casting Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the submarine cable block casting unit. Customizations are available upon request.
| Technical Parameter | HF-CPUE-1A1B-CableFix |
|---|---|
| Pouring Rate | 80～1000 g/s |
| Raw Material Ratio | MOCA: 100:9~12; BDO: 100:4~6 |
| Tank Capacity | 150 / 220 L |
| Mixing Head Speed | 7000～11000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 7.5～11 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Features & Advantages
Engineered for corrosion resistance, durability, and reliable production of submarine cable fixing blocks.
BDO Hydrolysis-Resistant Formula
Excellent seawater corrosion resistance, suitable for long-term immersion in harsh submarine conditions.
Vacuum Defoaming (≤-0.095MPa)
Ensures dense products without pores, resists water flow impact, and fixes cables firmly without loosening.
Dual Chain Extender Flexible Switching
Flexible switching between MOCA and BDO systems allows adjustment of product toughness as needed to adapt to different sea areas.
1A1B Independent Temperature Control
Independent temperature control design ensures stable and reliable operation, suitable for mass production of multi-specification cable fixing blocks.
High-Precision Dynamic Metering
Metering accuracy ≤±0.3% across the full range ensures consistent product quality and dimensional precision.
Intelligent PLC Control with Multi-Formula Storage
PLC + touch screen interface with multiple formula memory simplifies operation, reduces errors, and enables rapid changeovers between formulations for different sea area requirements.
Ensure Reliable Submarine Cable Protection with Our Casting Solution
Our engineering team specializes in offshore and deep-sea cable accessory production. Contact us to discuss your specific sea area conditions, formula requirements, and production capacity needs.
Application Scenarios
Specially designed for the production of submarine communication/power cable fixing blocks, widely suitable for casting of cable fixing accessories in deep sea and offshore areas. Supports BDO hydrolysis-resistant and corrosion-resistant formula, meeting the core needs of long-term submarine immersion, water flow impact resistance and firm fixation, ensuring the stability of submarine cable laying and operation.
