Pipe Insulation High Pressure PU Machine
High‑pressure rigid foam system for HVAC, water supply, chemical & thermal pipeline insulation, with annular pouring, solvent‑free air purge cleaning, and 10‑18 MPa mixing pressure.
Pouring Rate
80～1500 g/s
Dosing Accuracy
≤ ±0.3% full dynamic range
Mix Ratio (A:B)
100 : 100~130
Mixing Pressure
10～18 MPa
Product Overview

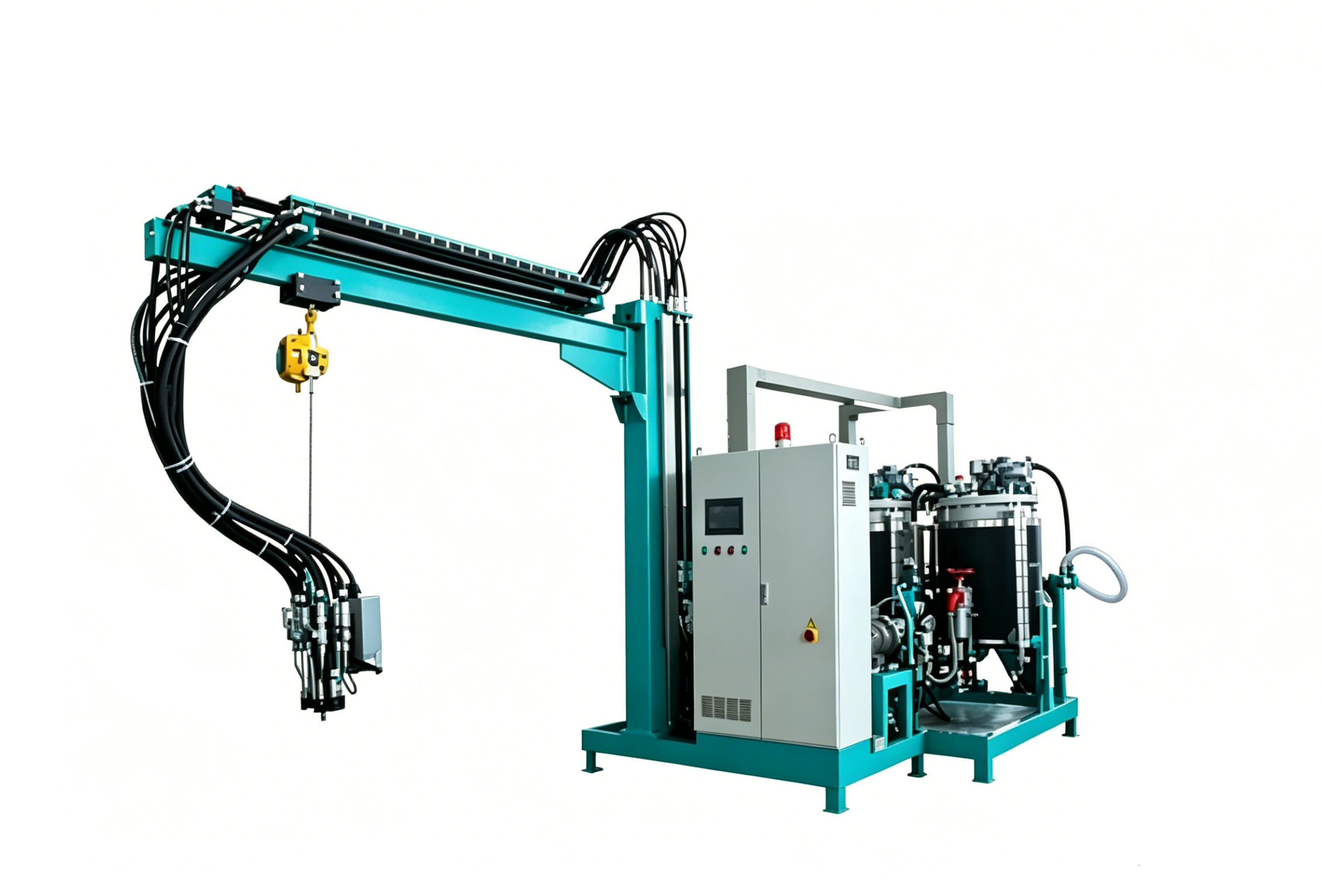

The HF‑HPM‑1A1B‑PipeInsulation is a high‑pressure PU foaming system for annular pipeline insulation, delivering rigid, void‑free foam with accurate proportioning and eco‑friendly cleaning.

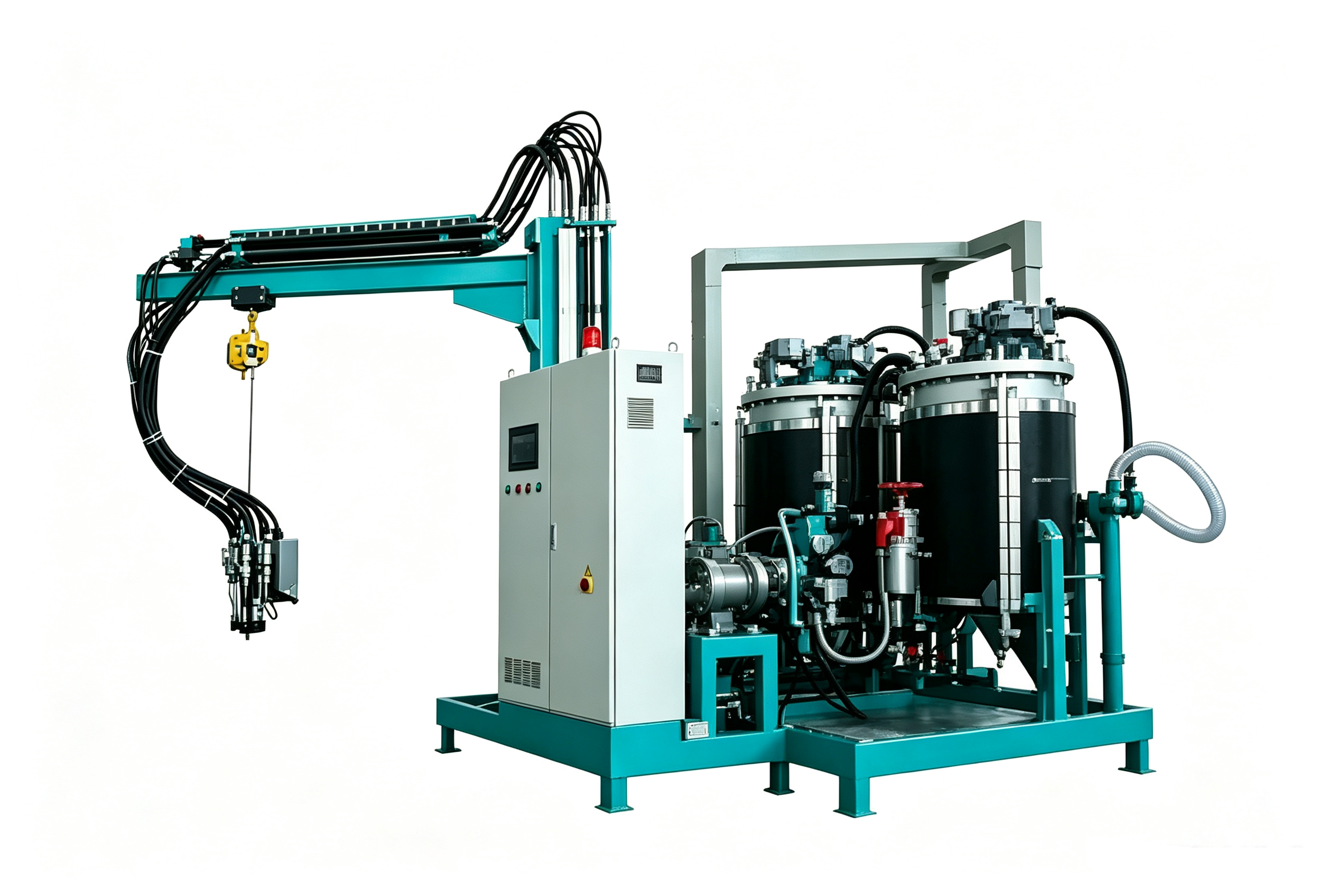

This high‑pressure polyurethane foaming machine is specially designed for thermal insulation of pipelines used in HVAC systems, water supply and drainage, chemical processing, and thermal energy transportation. It supports both direct‑burial pipelines and prefabricated insulation layer pouring, meeting the core requirements of sealed insulation, full filling without gaps, and long‑term corrosion protection. The system features independent temperature‑controlled tanks (100L/150L optional) with circulation stirring, a high‑speed mixing head (8000‑14000 r/min) operating at 10‑18 MPa pressure, and a PLC‑based control system with multi‑formula storage. The annular pouring design ensures full circumferential filling with no voids, while the rigid foam structure bonds firmly to the pipe surface, enhancing the integrity and durability of the insulation layer. The machine is designed for convenient mobility, suitable for both on‑site pipeline construction and factory‑based prefabrication. Its automatic air purge cleaning system is solvent‑free and environmentally friendly, minimizing downtime and chemical waste. With stable and accurate proportioning (A:B = 100:100‑130), the machine delivers uniform insulation layer thickness and high construction consistency across long production runs.
Production Workflow
Material Preparation
Load polyol and isocyanate into temperature‑controlled tanks (100L or 150L), set to 20‑45°C with circulation stirring.
Recipe Selection & Ratio Setting
Choose stored formula on PLC touch screen; set A:B ratio (100:100‑130) and pouring rate (80‑1500 g/s) per pipe diameter and insulation thickness.
Annular High‑Pressure Pouring
Position mixing head around pipe; inject PU foam at 10‑18 MPa and 8000‑14000 r/min, ensuring full circumferential fill with no gaps.
Curing & Air Purge Cleaning
Allow foam to cure and bond to pipe surface; trigger automatic air purge cleaning to prepare head for next pour without solvents.
Request a Quote for Your Pipeline Insulation Project
Get a QuoteTechnical Specifications
Specifications are based on standard configurations at ambient conditions. Tank sizes and pouring rates can be customized for specific pipe diameters and insulation requirements.
| Technical Parameter | HF-HPM-1A1B-PipeInsulation |
|---|---|
| Pouring Rate | 80～1500 g/s |
| Mix Ratio | A：B=100：100~130 |
| Tank Capacity | 100L / 150L (Optional, Per Tank) |
| Mixing Head Speed | 8000～14000 r/min |
| Dosing Accuracy | ≤±0.3% (Full Dynamic Range) |
| Tank Configuration | 1A1B Two-Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 20～45℃ |
| Mixing Pressure | 10～18 MPa |
| Vacuum Defoaming | None |
| Cleaning System | Automatic Air Purge Cleaning (Solvent-Free & Eco-Friendly) |
| Power | 5.5～7.5 kW |
| Control System | PLC + Touch Screen + Multi-Formula Storage |
| Application System | Polyurethane Rigid Foam Insulation System |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Key Advantages
Six engineering benefits that ensure void‑free, uniform, and durable polyurethane insulation for pipelines in HVAC, water, chemical, and thermal applications.
Annular Pouring with Full Filling
Designed specifically for annular pipe insulation, ensuring complete circumferential fill with no gaps, delivering superior thermal sealing and long‑term protection.
High‑Speed High‑Pressure Mixing
Mixing head operates at 8000‑14000 r/min and 10‑18 MPa, producing uniform rigid foam with fine cell structure and strong adhesion to pipe surfaces.
Stable & Accurate Proportioning
Closed‑loop metering with ≤±0.3% accuracy ensures consistent A:B ratio (100:100‑130), resulting in uniform insulation thickness and high construction quality.
Solvent‑Free Air Purge Cleaning
Automatic air purge cleaning system eliminates the need for chemical solvents, reducing environmental impact, simplifying maintenance, and lowering operating costs.
Versatile for Site & Factory Use
Compact and mobile design supports both on‑site pipeline construction and factory‑based prefabrication, adapting to different project requirements with ease.
Intelligent PLC Control
Touch screen with multi‑formula storage enables quick recipe recall and one‑click switching, with full data traceability for batch quality control.
Let’s Insulate Your Pipeline Network Efficiently
Our engineering team will help you select the right tank capacity, mixing head configuration, and mobility setup for your specific pipe diameters and insulation thickness requirements.
Industries & Applications
The HF‑HPM‑1A1B‑PipeInsulation is specifically designed for thermal insulation of pipelines in HVAC systems, water supply and drainage networks, chemical processing plants, and thermal energy transmission lines. It supports both direct‑burial pipeline insulation and prefabricated insulation layer pouring, making it ideal for large‑scale municipal projects, industrial pipe networks, and district heating/cooling systems. The machine delivers rigid polyurethane foam that fully fills the annular space, providing sealed insulation, corrosion protection, and long‑term thermal efficiency.
Download the Full Technical Brochure & Pipe Insulation Guide
Request Specs & PricingComplete Your Production Line
Integrate the product with our full range of auxiliary equipment for a turnkey polyurethane processing system.
