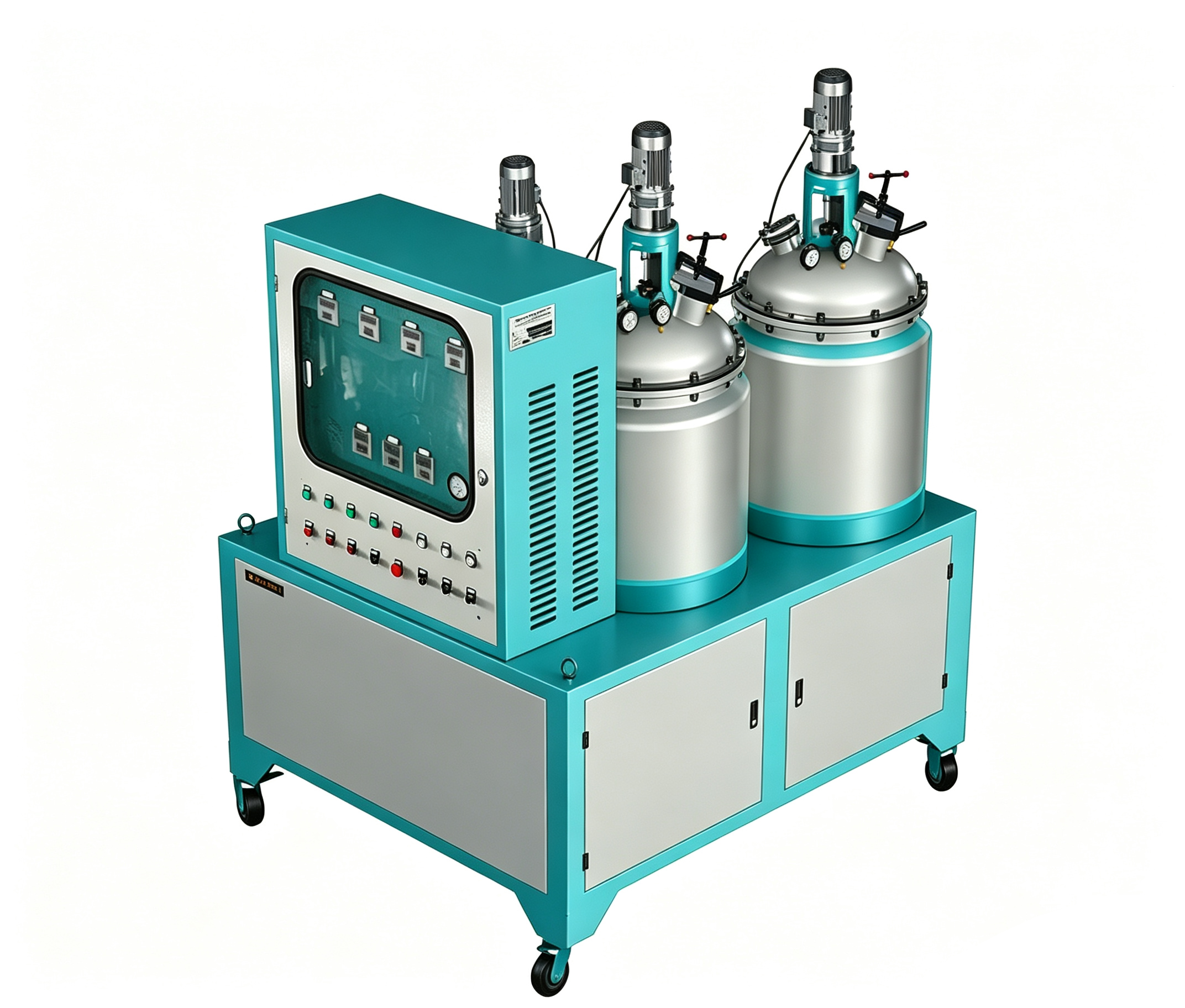

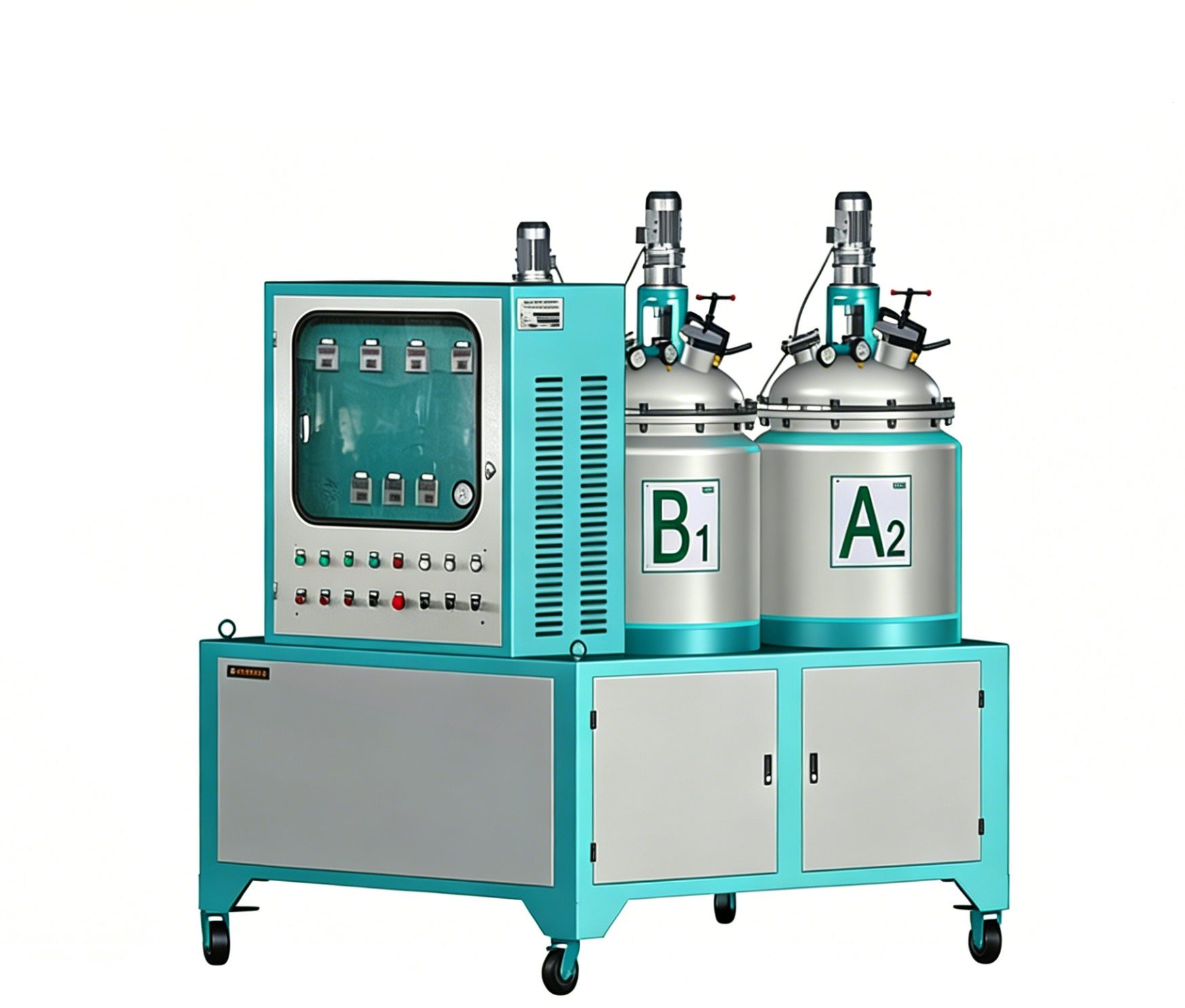

Pillow Soft Sponge Low Pressure PU Machine
Low‑pressure PU system for memory pillows, neck pillows & hydrophilic cotton cores, with 3A3B six‑tank multi‑formula design, ±0.8% accuracy, and solvent‑free cleaning.
Pouring Rate
50～1000 g/s
Mix Ratio (A:B)
1:1～1:4 (continuously adjustable)
Mixing Head Speed
3,000‑4,500 r/min (common)
Metering Accuracy
≤ ±0.8% full range
Product Overview
The HF‑LPM‑3A3B‑Soft‑Pillow is a low‑pressure PU system for memory pillows, with 3A3B six‑tank multi‑formula storage and fine‑flow control for soft, consistent cores.
This low‑pressure polyurethane foaming machine is specially developed for producing soft sponge pillow cores, including memory pillows, neck pillows, hydrophilic cotton pillows, and children's pillows. It features a 3A3B six‑tank configuration with 120L/220L capacity options, enabling multi‑formula storage for slow‑rebound, hydrophilic cotton, and other pillow formulations, with one‑key switching for multi‑category production. The machine delivers a pouring rate from 50 to 1000 g/s with a continuously adjustable A:B ratio of 1:1‑1:4. The mixing head speed operates up to 8600 r/min, with a typical range of 3000‑4500 r/min for soft foam applications. Dynamic metering accuracy is maintained at ≤±0.8% full range, ensuring consistent material proportioning. The special soft foaming process produces fine, uniform cells and a soft hand feel, ensuring comfort and quality consistency across batches. The small‑flow fine pouring control is perfectly suited for small pillow molds, reducing material waste and improving utilization. The small‑capacity tanks combined with high‑precision metering allow fast material changes, making the machine ideal for frequent sample trial production and small‑batch flexible production. The automatic air‑purge cleaning system is solvent‑free and eco‑friendly, simplifying maintenance. With a low power consumption of 5.5‑7.5 kW, the machine is cost‑effective for pillow core factories that handle multiple product categories.
Production Workflow
Material & Recipe Preparation
Load polyol and isocyanate into the selected 3A3B tanks (120L or 220L); choose stored recipe (memory, hydrophilic, etc.) on PLC touch screen.
Ratio & Flow Setting
Set A:B ratio (1:1‑1:4) and pouring rate (50‑1000 g/s) per pillow type and mold size.
Fine‑Flow Pouring & Foaming
Mixed PU material is poured into pillow molds at controlled low flow; material foams and cures to form soft, fine‑cell core.
Demolding & Air‑Purge Cleaning
Open mold after curing; remove finished pillow core; automatic air‑purge cleaning cleans the mixing head without solvents.
Request a Quote for Your Pillow Production Line
Contact UsTechnical Specifications
Specifications are based on standard configurations at ambient conditions. Tank capacities and mixing head speeds can be customized upon request.
| Technical Parameter | HF-LPM-3A3B-Soft-Pillow |
|---|---|
| Pouring Rate | 50~1000g/s |
| Mixing Ratio | 1:1~1:4 continuously adjustable |
| Tank Capacity | 120/220L |
| Mixing Head Speed | 0~8600r/min (Common: 3000~4500r/min) |
| Dynamic Metering Accuracy | ≤±0.8% (Full range) |
| Tank Configuration | 3A3B Six tanks |
| Cleaning System | Automatic air-purge cleaning (solvent-free, eco-friendly) |
| Power | 5.5~7.5kW |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Advantages
Six engineering benefits that deliver flexible, high‑quality pillow core production with fine cells, soft feel, and low material waste.
3A3B Six‑Tank Multi‑Formula Design
Stores slow‑rebound, hydrophilic cotton, and other pillow formulations simultaneously; one‑key switching enables rapid changeover between different pillow types without lengthy cleaning.
Small‑Flow Fine Pouring Control
Precise low‑flow pouring (down to 50 g/s) perfectly suits small pillow molds, reducing material waste and improving raw material utilization.
Special Soft Foaming Process
Produces fine, uniform cells with a soft, comfortable hand feel, ensuring consistent quality and comfort across all pillow cores.
Small Tank Capacity + High‑Precision Metering
120L/220L tanks enable fast material changes; ≤±0.8% metering accuracy ensures stable ratio control even with frequent formula switching—ideal for sample trials.
Solvent‑Free Air‑Purge Cleaning
Automatic air‑purge system eliminates chemical solvents, reducing environmental impact and simplifying maintenance for frequent product changeovers.
Cost‑Effective for Small‑Batch Flexible Production
Low power consumption (5.5‑7.5 kW) and compact design make it affordable for small‑to‑medium pillow factories, supporting multi‑category production with minimal operating costs.
Start Your Comfortable Pillow Production Today
Haifeng supplies full‑series PU foaming equipment, professional pillow molds, and turnkey production solutions—covering equipment selection, installation, operator training, and full‑lifecycle after‑sales support.
Industries & Applications
The HF‑LPM‑3A3B‑Soft‑Pillow is specially used for foaming of memory pillows, neck pillows, hydrophilic cotton pillows, children's pillows, and other pillow cores. It supports multi‑formula storage and quick switching, making it ideal for sample trials and small‑batch flexible production in multi‑category pillow core factories, as well as for R&D and new product development.
