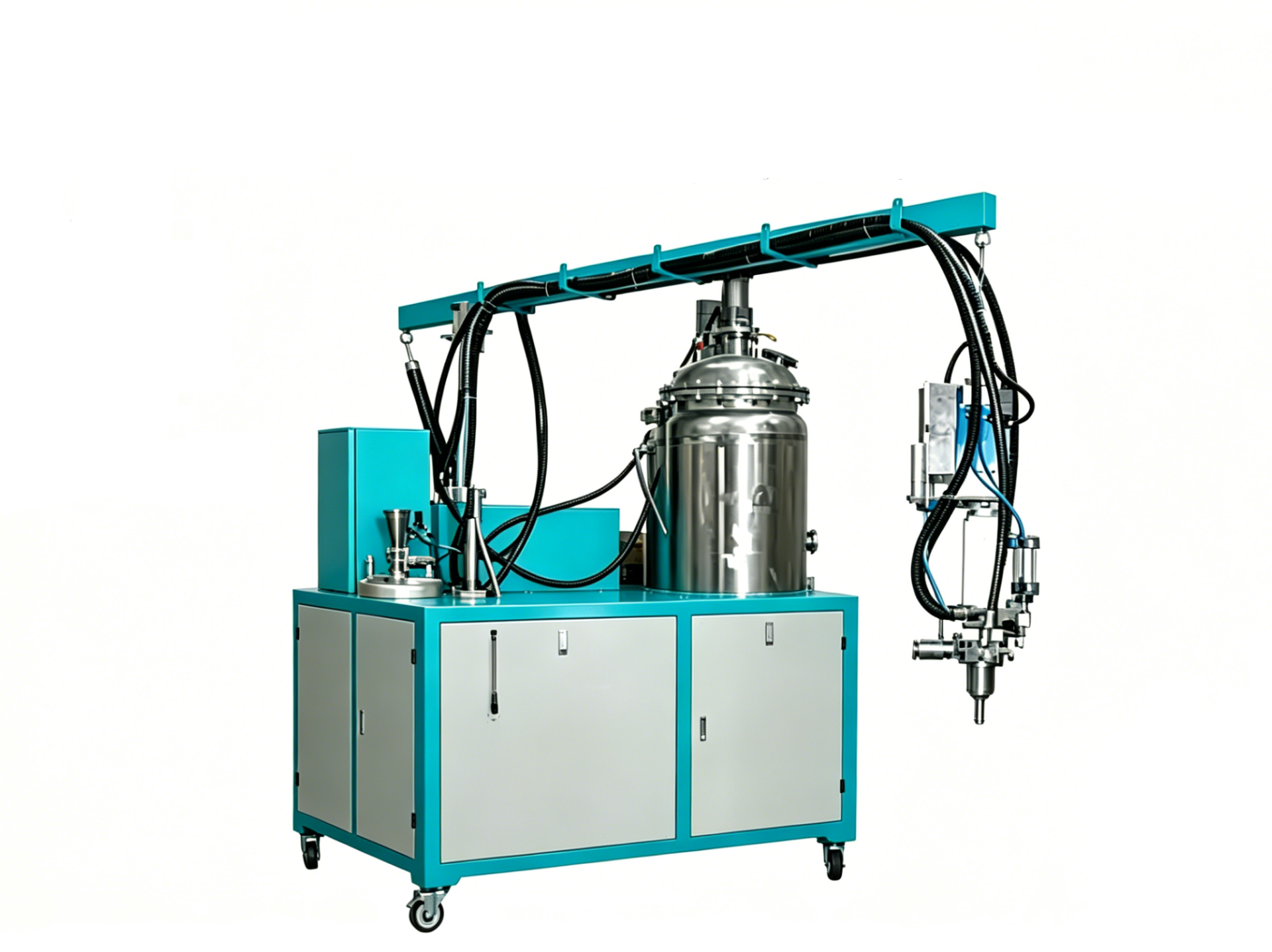

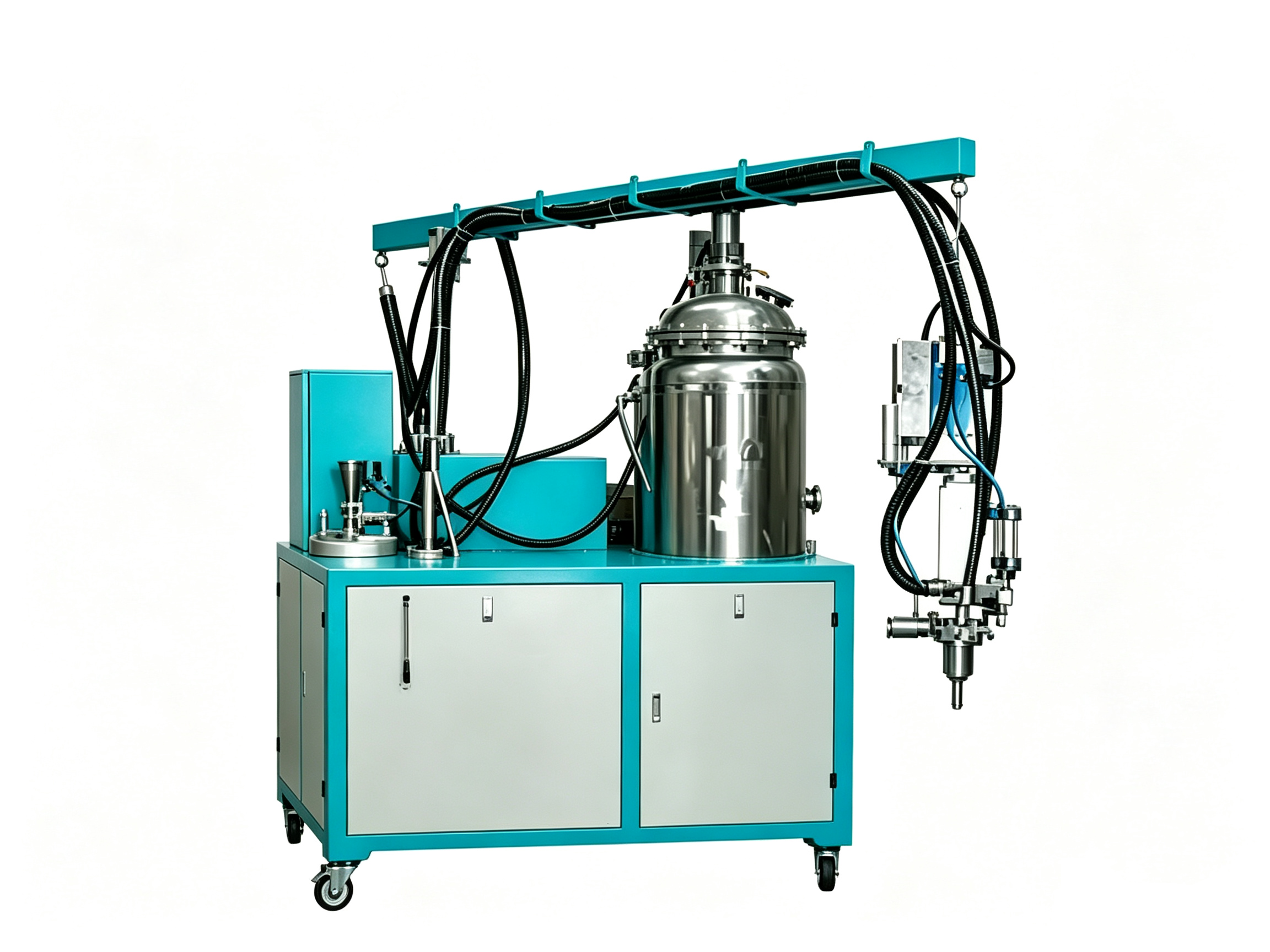

Medical Sponge PU Foam Pouring Machine
Precision pouring system for medical polyurethane sponge with ISO13485 and sterile production
Pouring Rate
50～1000 g/s
Mix Ratio (Medical Polyol:MDI)
100 : 85~95
Metering Accuracy
≤ ±0.3% full range
Foaming Pressure
0.5～2.0 MPa
Product Overview
Specially designed for precision pouring of medical polyurethane sponge, stably producing wound dressings, medical pads, hemostatic sponges and other medical consumables.
This medical sponge PU foam pouring machine is purpose-built for the precision production of medical polyurethane sponge consumables, including wound dressings, medical pads, and hemostatic sponges. The 1A1B exclusive medical formula with independent temperature and pressure control ensures no cross‑contamination, perfectly suited for small‑batch, multi‑specification medical sponge production. Dynamic full‑range high‑precision metering with ≤±0.3% accuracy ensures uniform foam density and fine cells, delivering finished products with stable and consistent absorption performance. The special medical‑grade raw material adaptation system complies with medical biocompatibility standards, ensuring finished products are safe and non‑irritating for human contact. All material contact parts are manufactured from 316L stainless steel and paired with a sterile cleaning system, making the machine directly applicable to medical sterile workshops. The whole machine meets medical production standards of biocompatibility, high absorbency and sterility, and can be directly used for large‑scale production of human‑contact medical sponge products with CE, ISO9001, and ISO13485 certifications.
Operation Workflow
Medical‑Grade Raw Material Loading
Load medical‑grade polyether polyol and medical‑grade isocyanate (MDI) into the 100/150 L tanks according to the target mix ratio (100:85–95) under sterile conditions.
Sterile Tank Loading & Temperature Setting
Set Tank A temperature to 25–45°C and Tank B to 20–40°C. The 1A1B independent temperature and pressure control system ensures optimal medical foam formulation conditions.
Dynamic Full‑Range High‑Precision Metering & Mixing

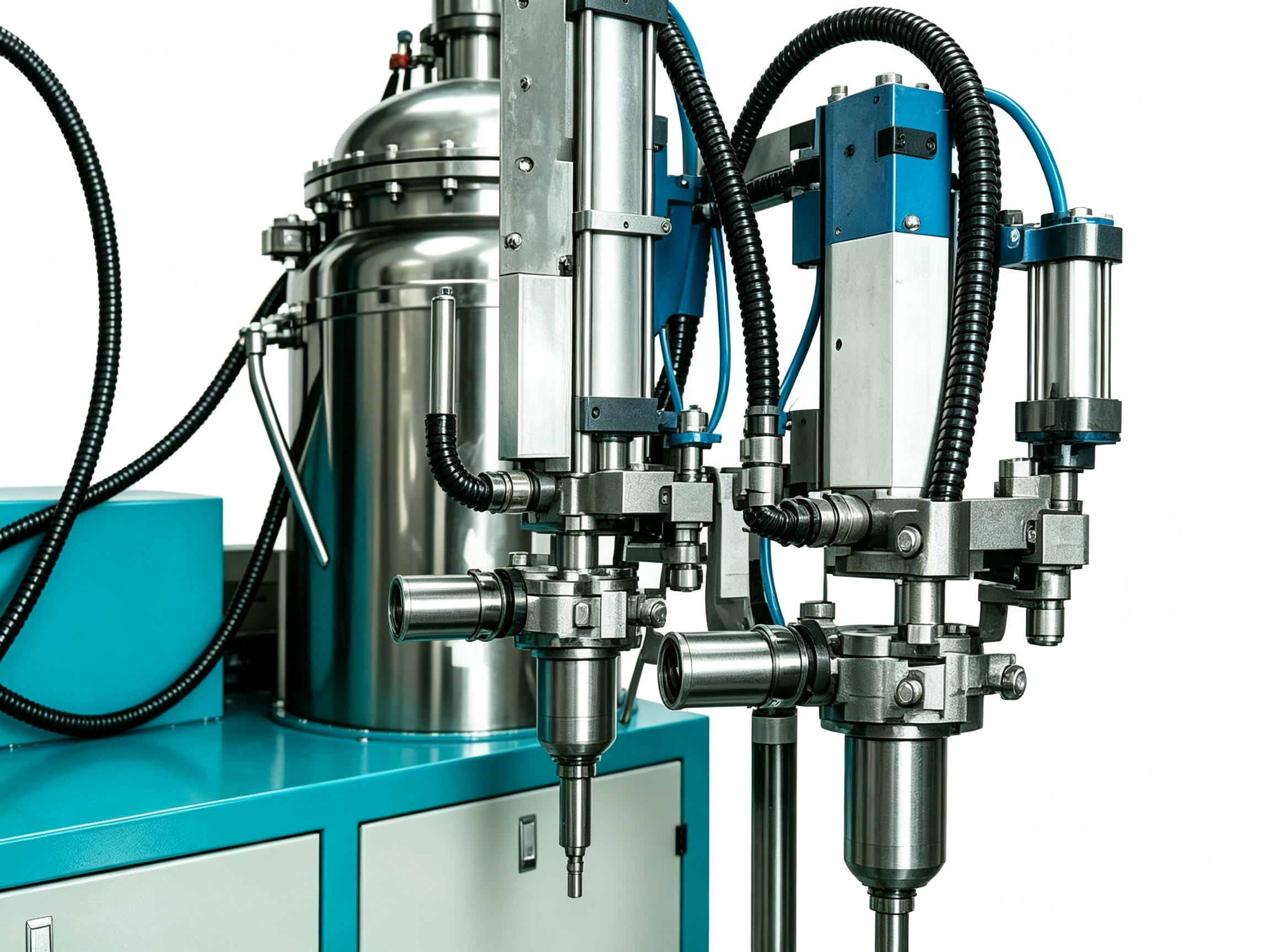

The PLC‑controlled dynamic metering system (accuracy ≤±0.3% full range) dispenses materials precisely. The mixing head operates at 5000–9000 r/min under foaming pressure of 0.5–2.0 MPa for homogeneous blending.
Medical Sponge Pouring & Sterile Molding
The mixed material is poured into sterile molds. Uniform foam density and fine cells ensure stable and consistent absorption performance for wound dressings, medical pads, and hemostatic sponges.
Request a Customized Medical Sponge Pouring Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the medical sponge PU foam pouring machine. Customizations including tank capacity are available upon request.
| Technical Parameter | HF-Sponge-1A1B-Medical Sponge |
|---|---|
| Pouring Rate | 50–1000 g/s |
| Raw Material Ratio | Medical‑grade polyether polyol : Medical‑grade isocyanate (MDI) = 100:85–95 |
| Tank Capacity (Optional) | 100 / 150 L |
| Mixing Head Speed | 5000–9000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 1A1B two‑component independent temperature control |
| Material Temperature Control (Tank A) | 25–45℃ |
| Material Temperature Control (Tank B) | 20–40℃ |
| Foaming Pressure | 0.5–2.0 MPa |
| Cleaning System | Sterile circulating cleaning + air purge cleaning |
| Power | 5.5–8 kW |
| Control System | PLC + touch screen + multi‑formula storage |
| Warranty | 1 year |
| Certifications | CE, ISO9001, ISO13485 |
Key Features & Advantages
Engineered for sterility, biocompatibility, and precision in medical sponge manufacturing.
1A1B Exclusive Medical Formula
Independent temperature and pressure control with no cross‑contamination, perfectly suitable for small‑batch, multi‑specification medical sponge production.
Dynamic Full‑Range High‑Precision Metering
≤±0.3% accuracy ensures uniform foam density and fine cells, delivering finished products with stable and consistent absorption performance.
Medical‑Grade Raw Material Adaptation System
Complies with medical biocompatibility standards, ensuring finished products are safe, non‑irritating, and suitable for direct human contact.
316L Stainless Steel + Sterile Cleaning System
All material contact parts are manufactured from 316L stainless steel. Paired with a sterile circulating cleaning system, the machine is directly applicable to medical sterile workshops.
ISO13485 Medical Device Certification
Holds ISO13485 certification alongside CE and ISO9001, ensuring full compliance with medical device quality management standards.
PLC Intelligent Control with Multi‑Formula Storage
PLC + touch screen interface with multi‑formula storage simplifies operation and enables rapid changeovers between different medical sponge specifications.
Advance Your Medical Sponge Production with ISO13485‑Compliant Pouring Technology
Our engineering team specializes in medical polyurethane solutions. Contact us to discuss your specific medical sponge applications, biocompatibility requirements, and sterile production needs.
Application Scenarios
Wound dressings, medical pads, hemostatic sponges with sterile, biocompatible PU foam.
