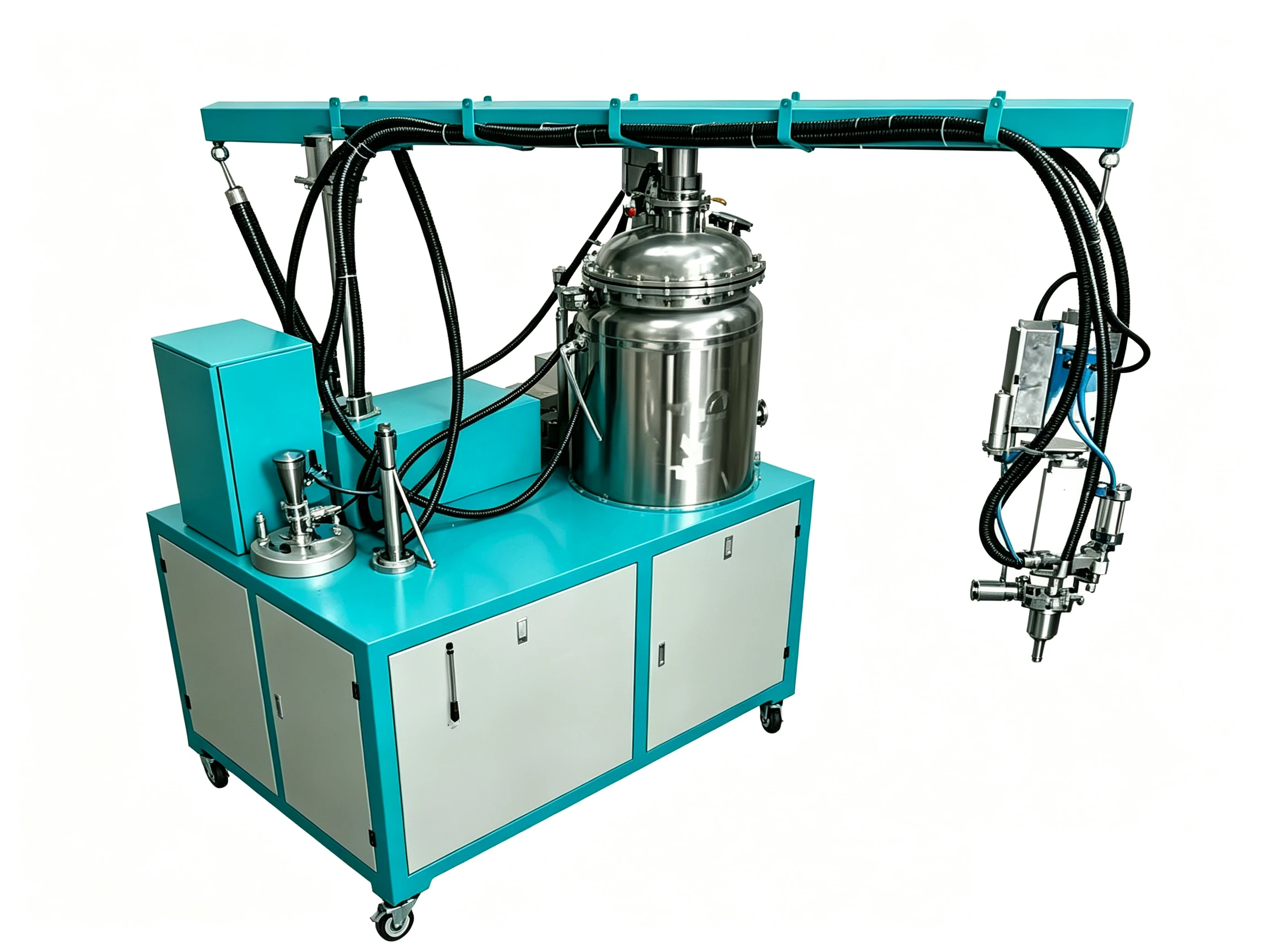

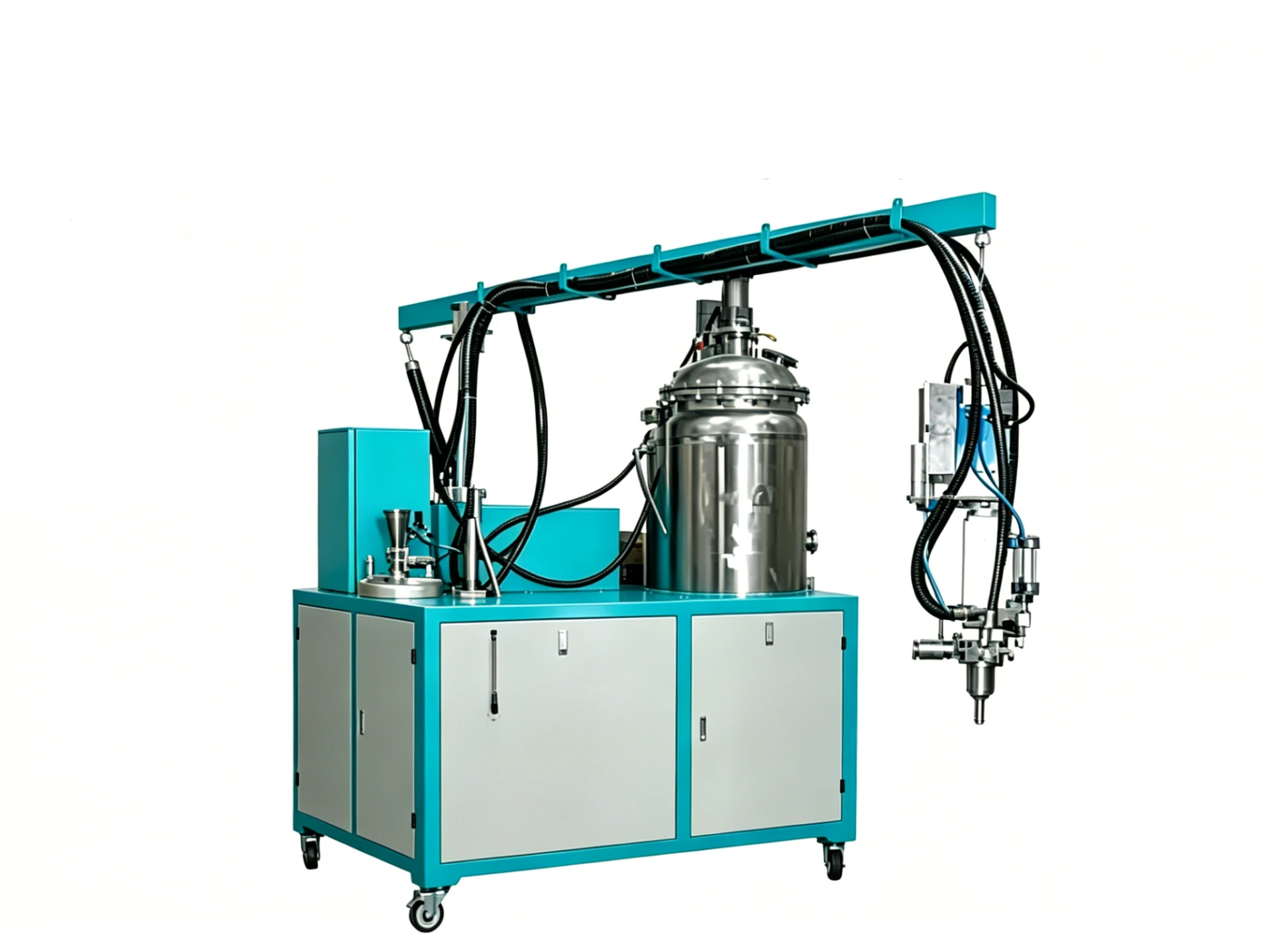

Mattress Soft Sponge Low Press PU Machine
High-flow efficient pouring system for soft polyurethane sponge mattresses, suitable for large-scale continuous production lines
±0.3% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Specially used for mass production of soft polyurethane sponge mattresses for household, hotel, student dormitory.
This low-pressure PU foaming machine is specially designed for the mass production of soft polyurethane sponge mattresses for household, hotel, and student dormitory applications. The 1A1B double tank configuration with independent pressure and temperature control ensures stable and continuous supply for long-hour operation in mass production. The high-flow efficient pouring design (500–5000 g/s) is perfectly suited for large mattress molds, delivering high productivity and full molding without defects. The special mixing process for soft foam produces uniform cells and stable resilience, ensuring mattress comfort and durability for end users. High-precision metering combined with an eco-friendly cleaning system ensures uniform quality across all production batches, meeting modern factory environmental and quality control requirements. The machine stably foams high-resilience and slow-resilience mattress cores and comfort layers, suitable for large-scale continuous production lines and meeting the efficient production needs of mattress factories.
Operation Workflow
Raw Material Preparation
Prepare polyol and isocyanate components according to the target mix ratio (continuously adjustable from 1:1 to 1:4). Select the appropriate formulation for high-resilience or slow-resilience foam requirements.
Tank Loading & Temperature/Pressure Setting
Load polyol into Tank A and isocyanate into Tank B. The 1A1B double tank system with independent pressure and temperature control ensures stable material conditioning for long-hour continuous operation.
High-Flow Mixing & Pouring
The PLC-controlled metering system (accuracy ≤±1.0% full range) dispenses materials precisely. The mixing head speed is adjustable within 0–8600 r/min (common operating range: 3000–5000 r/min) for optimal soft foam cell structure. The high-flow pouring rate (500–5000 g/s) ensures rapid and full filling of large mattress molds.
Foaming & Curing
The mixed soft foam material is poured into mattress molds. The special mixing process for soft foam produces uniform cells and stable resilience, ensuring mattress comfort and durability.
Request a Customized Mattress Foaming Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the mattress soft sponge low-pressure PU machine. Customizations are available upon request.
| Technical Parameter | HF-LPM-1A1B-Soft-Mattress |
|---|---|
| Pouring Rate | 500~5000g/s |
| Mixing Ratio | 1:1~1:4 continuously adjustable |
| Tank Capacity | 120/220/500/1000L |
| Mixing Head Speed | 0~8600r/min (Common: 3000~5000r/min) |
| Dynamic Metering Accuracy | ≤±1.0% (Full range) |
| Tank Configuration | 1A1B Double tanks |
| Cleaning System | Automatic air-purge cleaning (solvent-free, eco-friendly) |
| Power | 7.5~15kW |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Features & Advantages
Engineered for efficiency, consistency, and eco-friendly production in mattress manufacturing.
1A1B Double Tanks with Independent Pressure & Temperature Control
Provides stable and continuous material supply for long-hour operation in mass production, ensuring consistent foam quality across all batches.
High-Flow Efficient Pouring Design
Pouring rate of 500–5000 g/s is perfectly suited for large mattress molds, delivering high productivity and full molding without defects.
Special Mixing Process for Soft Foam
Produces uniform cells and stable resilience, ensuring mattress comfort and durability. Supports both high-resilience and slow-resilience foam formulations.
High-Precision Dynamic Metering
Metering accuracy ≤±1.0% across the full range ensures uniform product quality, meeting the stringent quality control requirements of modern mattress factories.
Solvent-Free Eco-Friendly Cleaning System
Automatic air-purge cleaning enables fast production line changeovers with zero pollution, meeting modern factory environmental standards.
Intelligent PLC Control with Recipe Storage
PLC + touch screen interface with recipe storage function simplifies operation, enables precise parameter adjustment, and supports fast changeovers between different mattress specifications.
Scale Up Your Mattress Production with High-Efficiency Soft Foaming
Our engineering team specializes in mattress industry foaming solutions. Contact us to discuss your specific mattress types, foam formulations, and production capacity requirements.
Application Scenarios
Specially used for mass production of soft polyurethane sponge mattresses for household, hotel, student dormitory. Stably foams high-resilience and slow-resilience mattress cores and comfort layers, suitable for large-scale continuous production lines, meeting efficient production needs of mattress factories.
