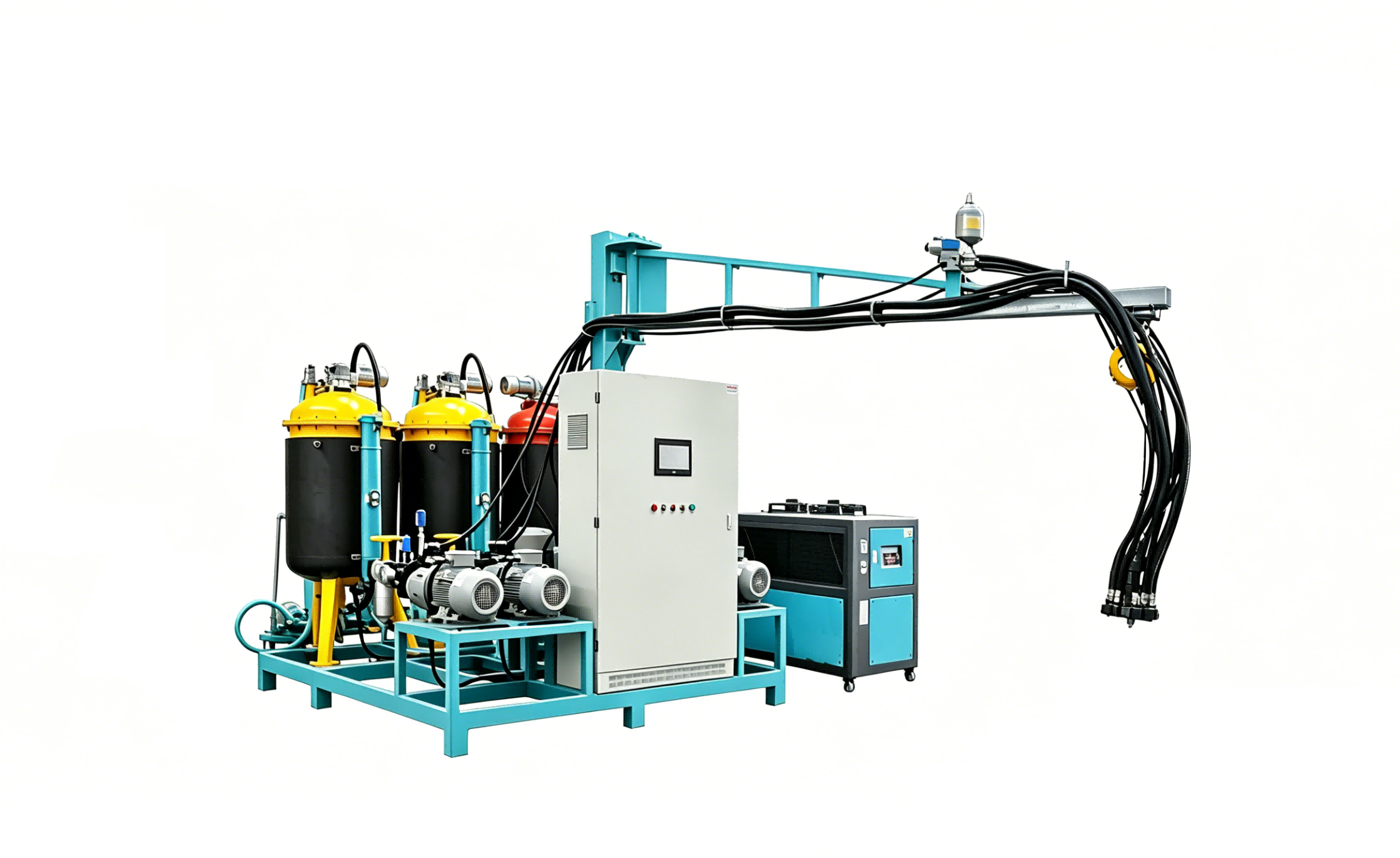

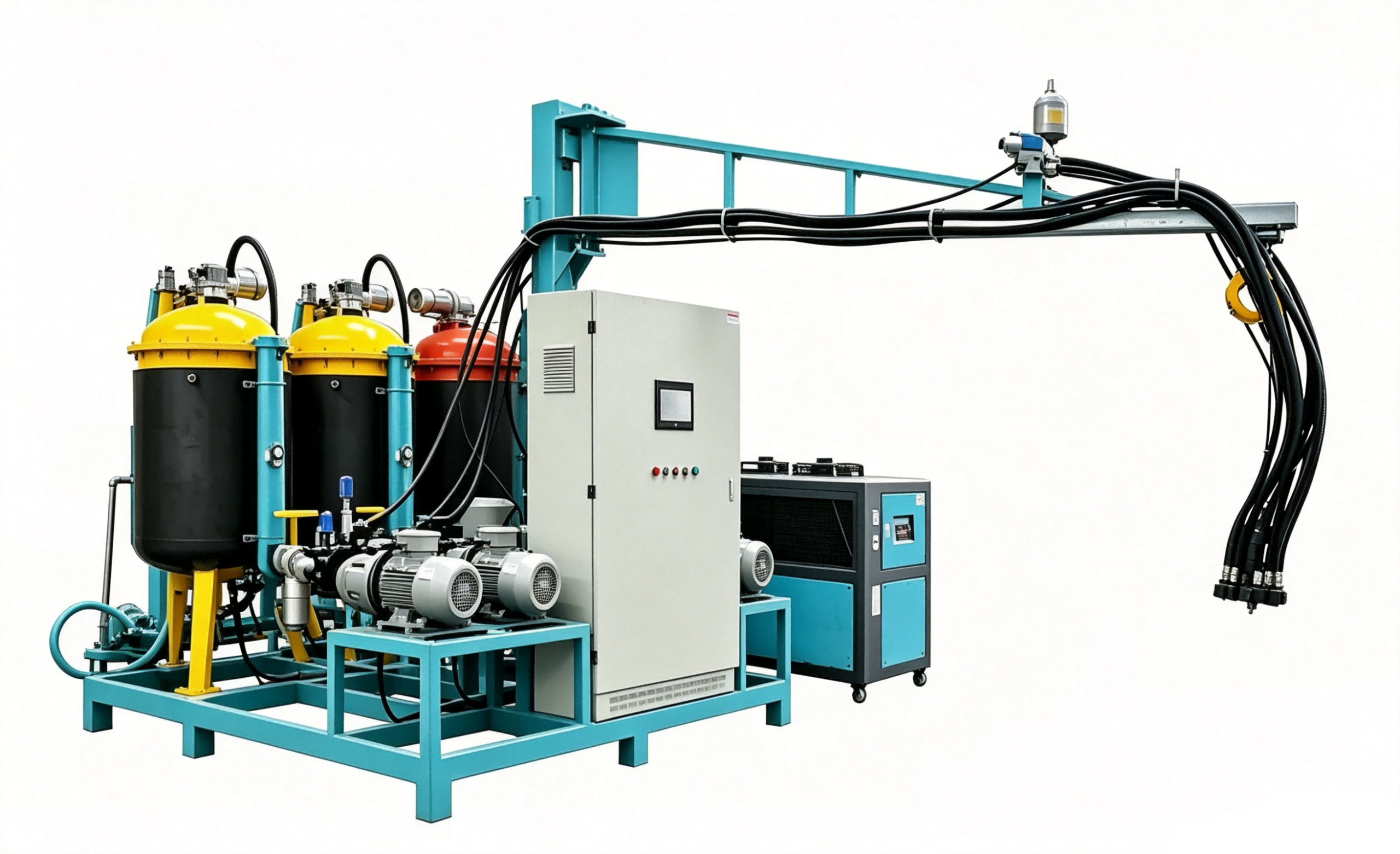

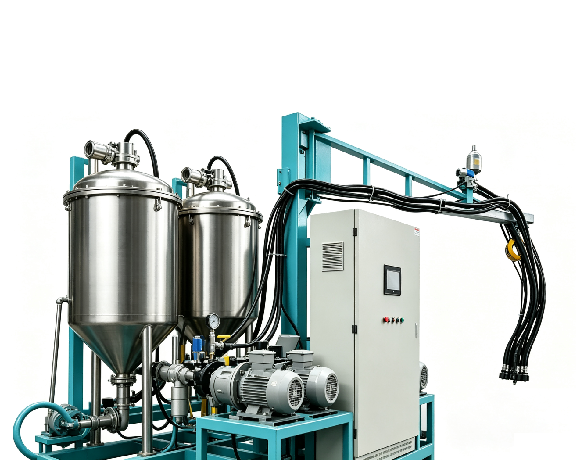

Large Building Part RIM Composite PU Machine
RIM composite molding system for prefabricated building components with fiber-reinforced structural PU
±0.5% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Suitable for the production of prefabricated exterior wall components, architectural decorative parts, and large-scale lightweight structural parts.
This RIM composite PU machine is purpose-built for the production of prefabricated building components, including exterior wall panels, architectural decorative parts, and large-scale lightweight structural elements. The system supports fiber-reinforced structural polyurethane formulations, delivering finished products with light weight, high strength, weather resistance, anti-aging properties, and dimensional stability—meeting the stringent requirements of modern prefabricated construction. The 1A1B two-component system with independent temperature control and circulation stirring ensures consistent material quality. The large-flow stable discharge capability (100–2000 g/s) supports the overall pouring molding of large-shaped building components. High-precision metering closed-loop control with ≤±0.3% accuracy ensures minimal deformation and superior dimensional uniformity. The intelligent one-key switching of multiple formulas flexibly adapts to batch production of various types of building composite components, supporting both mass production and customized processing. The finished products meet building standards for compression resistance and weather resistance.
Operation Workflow
Fiber-Reinforced Raw Material Preparation
Prepare polyether polyol and isocyanate according to the target mix ratio (100:90~110). Select appropriate fiber-reinforced formulation and ensure proper conditioning for optimal composite properties.
Tank Loading & Temperature/Pressure Setting
Load polyol into Tank A and isocyanate into Tank B. The 1A1B independent temperature control system maintains 25–45°C with circulation stirring. Set mixing pressure to 150–200 bar for high-pressure homogenization.
High-Pressure Homogenization & Large-Flow Dispensing
The PLC-controlled dosing system (accuracy ≤±0.3% full dynamic range) dispenses materials precisely. High-pressure mixing ensures homogeneous fiber dispersion. The large-flow pouring rate (100–2000 g/s) enables overall pouring molding of large-shaped building components.
Mold Filling, Venting & Curing
Inject the composite material into the component mold. The mold negative pressure venting system removes trapped air, while high-pressure homogenization ensures complete fiber wet-out. Finished products feature light weight, high strength, weather resistance and dimensional stability.
Request a Customized Building Component RIM Molding Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the large building part RIM composite PU machine. Customizations including tank capacity and formula options are available.
| Technical Parameter | HF-RIM-1A1B-BuildingParts |
|---|---|
| Pouring Rate | 100～2000 g/s |
| Mix Ratio | Polyether: Isocyanate = 100:90~110 |
| Tank Capacity | 200L / 300L (Optional, Per Tank) |
| Dosing Accuracy | ≤±0.3% (Full Dynamic Range) |
| Tank Configuration | 1A1B Two-Component Independent Temp Control + Circulation Stirring |
| Temperature Control | 25～45℃ |
| Mixing Pressure | 150～200 bar |
| Venting System | Mold Negative Pressure Venting + High-Pressure Homogenization |
| Cleaning System | High-Pressure Circulation Cleaning + Air Purging |
| Power | 15～22 kW |
| Control System | PLC + Touch Screen + Multi-Formula Storage |
| Application System | Fiber-reinforced structural polyurethane RIM composites |
| Warranty | 1 Year |
| Certification | CE, ISO9001 |
Key Features & Advantages
Engineered for lightweight, high-strength, and weather-resistant building component production.
Fiber-Reinforced Structural Formulations
Finished products feature light weight, high strength, compression resistance, weather resistance, anti-aging and dimensional stability, meeting modern prefabricated building standards.
Large-Flow Stable Discharge
Pouring rate of 100–2000 g/s meets the overall pouring molding requirements of large-shaped building components with consistent quality.
High-Precision Metering Closed-Loop Control
Dosing accuracy ≤±0.3% ensures minimal deformation of finished products and superior dimensional uniformity across all production batches.
One-Key Multi-Formula Switching
Intelligent formula storage and switching flexibly adapts to batch production of various types of building composite components, reducing changeover time.
High-Pressure Homogenization + Mold Venting
Combines high-pressure homogenization (150–200 bar) with mold negative pressure venting to ensure complete fiber wet-out and void-free structural integrity.
1A1B Independent Temperature Control with Circulation Stirring
Precise temperature control from 25–45°C with continuous circulation stirring ensures uniform material consistency and reliable reaction conditions.
Modernize Your Prefabricated Building Production with RIM Composite Technology
Our engineering team specializes in building component composite molding solutions. Contact us to discuss your specific component types, fiber-reinforced formulation requirements, and production capacity needs.
Application Scenarios
Exterior wall panels, architectural decor, lightweight structural parts for prefabricated construction.
