Industrial Anti-Corrosion PU Spray Machine
High-pressure spray system for industrial anti-corrosion with 240bar steady-flow output
±0.3% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Suitable for anti-corrosion spraying construction of chemical pipelines, inner and outer walls of storage tanks, steel structures, sewage treatment facilities, marine engineering, industrial floors, etc.

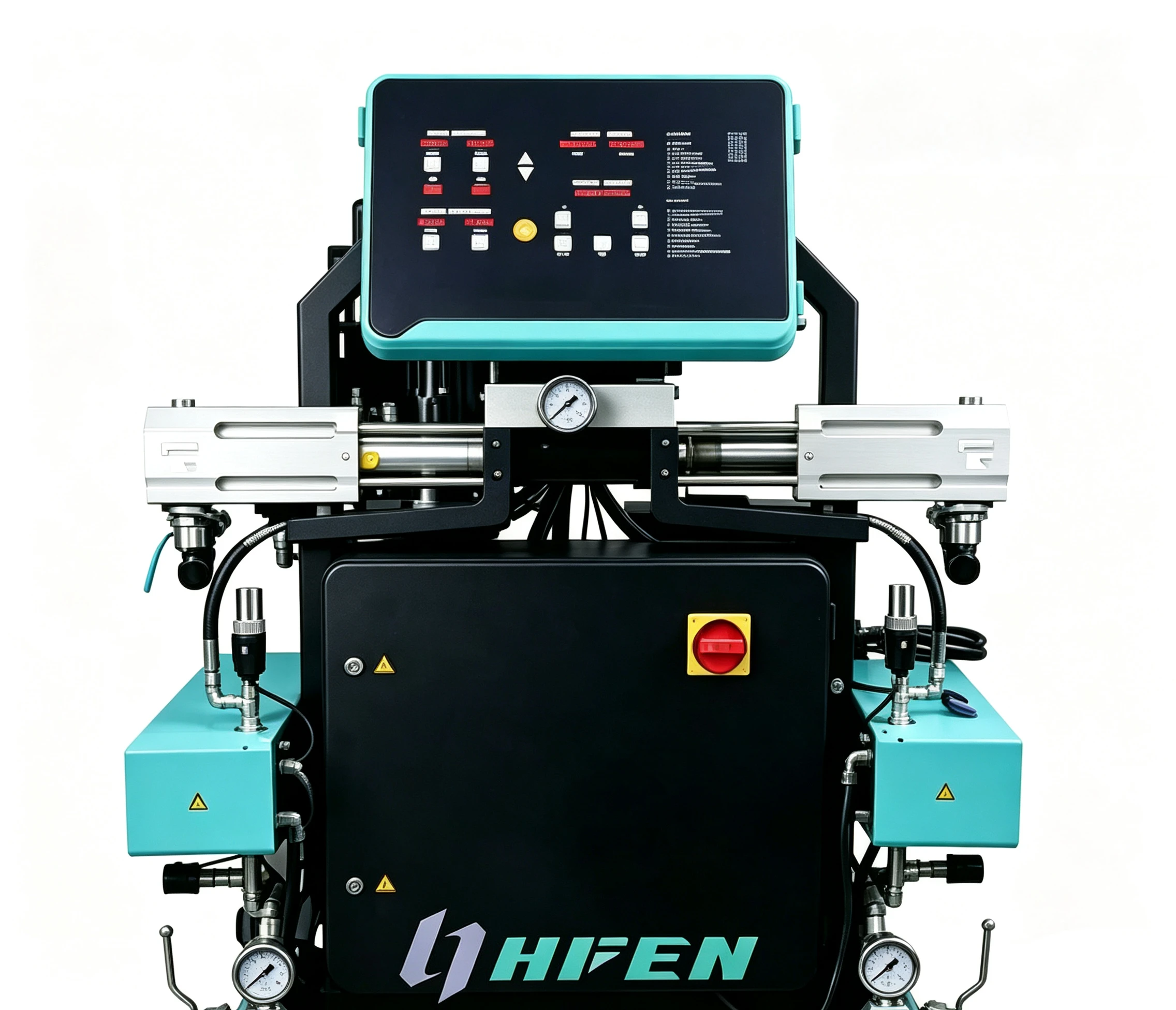

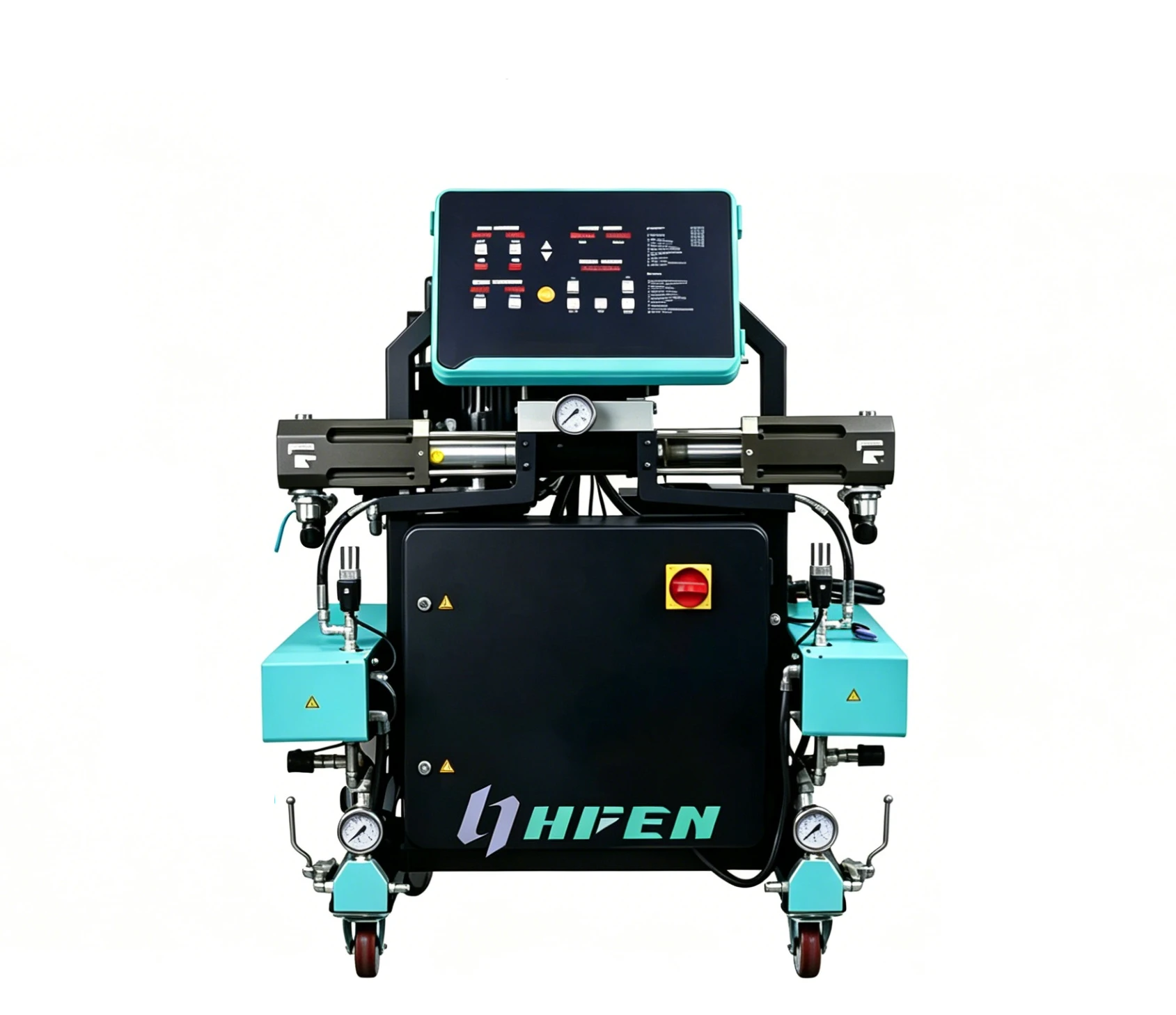

This PU spray machine is purpose-built for anti-corrosion spraying construction in demanding industrial environments, including chemical pipelines, storage tank walls, steel structures, sewage treatment facilities, marine engineering, and industrial floors. The hydraulic-driven system delivers high-pressure steady-flow output with maximum pressure of 240bar and flow rates up to 15kg/min@110bar, ensuring dense and uniform coating with stable adhesion. The equipment is compatible with polyurethane, polyurea and other anti-corrosion materials, providing excellent anti-aging and corrosion resistance for industrial long-term protection. Equipped with a hydraulic oil cooling system, the machine supports long-term continuous operation with stable running status. Accurate ratio of two-component materials ensures uniform coating performance and controllable construction quality. The system meets the construction requirements of anti-corrosion protection in industrial scenarios.
Operation Workflow
Equipment Setup & Material Loading
Position the spray machine at the construction site. Load anti-corrosion materials (PU, polyurea, etc.) into the 2-tank system. Connect to 3PE 400V 50/60Hz power supply.
Parameter Setting & Heater Activation
Activate the 12kW heater and set temperature parameters. Configure the hydraulic drive system for the required flow and pressure according to material specifications.
High-Pressure Steady Flow Spraying
Activate the spraying process. The system delivers maximum flow of 15kg/min@110bar, 9kg/min@160bar, and 7kg/min@240bar with max pressure of 240bar for dense, uniform coating with stable adhesion.
Continuous Operation & Quality Monitoring
The hydraulic oil cooling system supports long-term continuous operation. Monitor coating quality to ensure uniform performance and precise two-component ratio control.
Request a Customized Industrial Anti-Corrosion Spray Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the industrial anti-corrosion PU spray machine. Customizations are available upon request.
| Technical Parameter | HF-SP-2HF-Pro |
|---|---|
| Max Flow | 15kg/min@110bar, 9kg/min@160bar, 7kg/min@240bar |
| Max Pressure | 240bar |
| Drive Mode | Hydraulic Drive |
| Tank Quantity | 2 Tanks |
| Power Supply | 3PE 400V 50/60Hz |
| Heater Power | 12kW |
| Max Hose Length | 93m(Insulation)/78m(Polyurea) |
| Weight | 232kg(Without Oil) |
Key Features & Advantages
Engineered for high-pressure performance, material versatility, and long-term reliability in industrial anti-corrosion applications.
240bar High-Pressure Steady Flow Output
Delivers dense and uniform coating with stable adhesion, ensuring superior anti-corrosion protection in demanding industrial environments.
Multiple Anti-Corrosion Material Compatibility
Compatible with polyurethane, polyurea and other anti-corrosion materials, providing excellent anti-aging and corrosion resistance for long-term industrial protection.
Hydraulic Oil Cooling System
Supports long-term continuous operation with stable running status, ensuring consistent performance during extended construction projects.
Accurate Two-Component Ratio Control
Ensures uniform coating performance and controllable construction quality with precise material proportioning across all batches.
Flexible Flow & Pressure Options
Offers multiple operating points: 15kg/min@110bar, 9kg/min@160bar, and 7kg/min@240bar for different material and application requirements.
Extended Hose Length Support
Supports up to 93m insulated hose and 78m polyurea hose, enabling convenient access to large industrial structures and facilities.
Protect Your Industrial Assets with High-Performance Anti-Corrosion Spraying Technology
Our engineering team specializes in industrial anti-corrosion spraying solutions. Contact us to discuss your specific application requirements, material specifications, and project scale.
Application Scenarios
Chemical pipelines, storage tanks, steel structures, sewage facilities, marine engineering, industrial floors.
