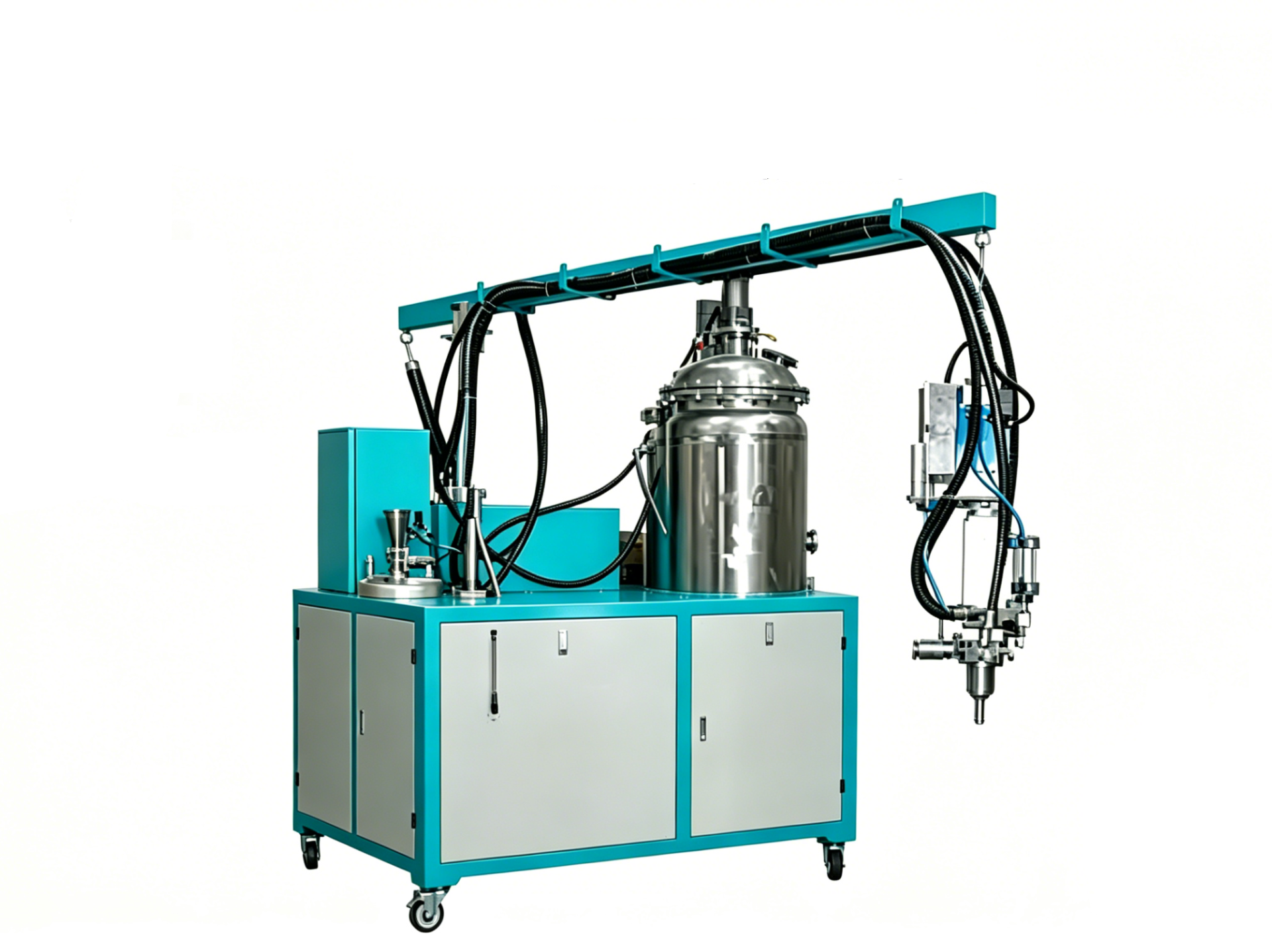

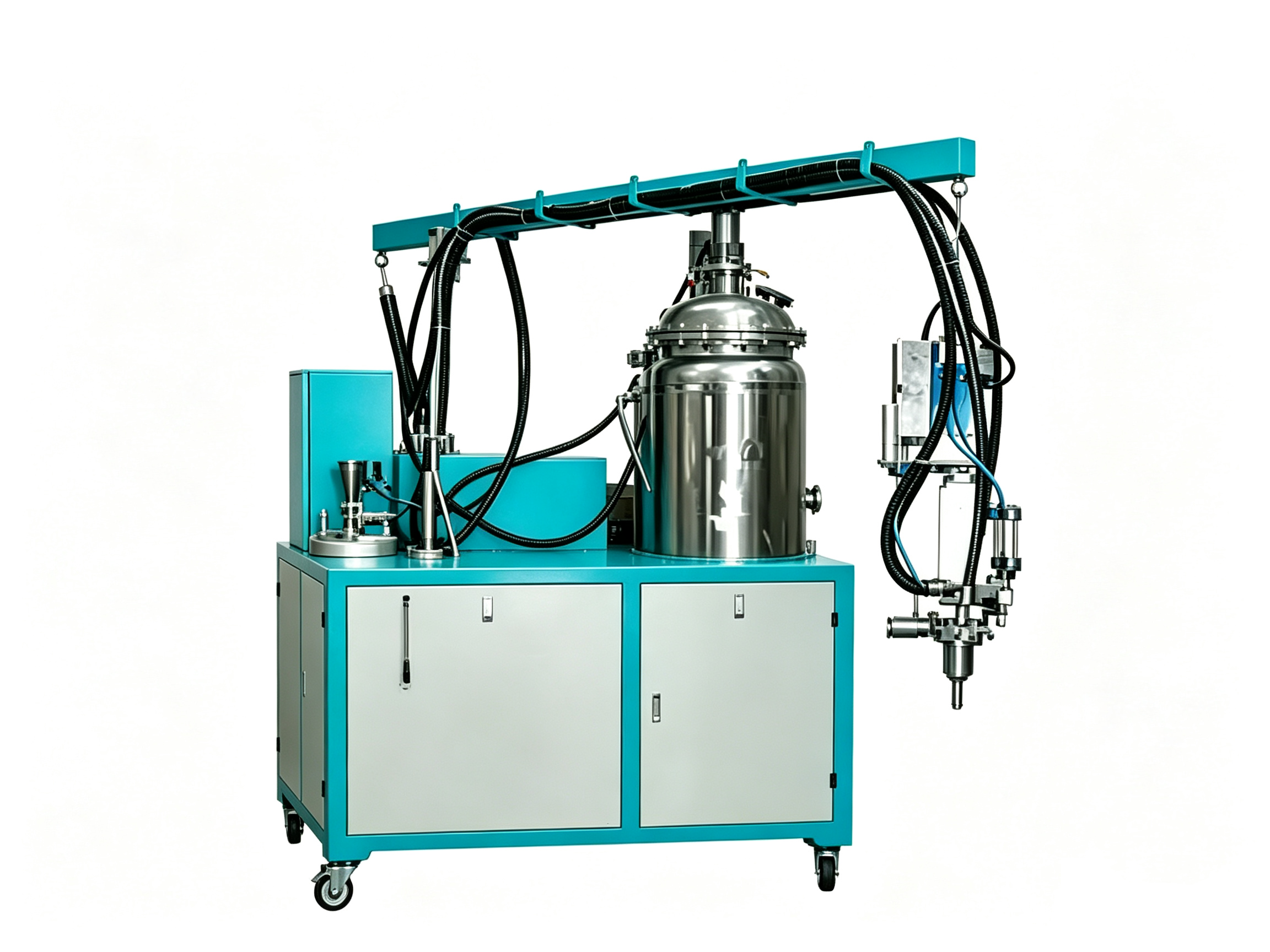

Hydrophilic Sponge PU Foam Pouring Machine
Precision pouring system for hydrophilic polyurethane sponge with high water absorption and biocompatibility
Pouring Rate
50～1000 g/s
Mix Ratio (Polyol:Isocyanate)
100 : 85~95
Metering Accuracy
≤ ±0.3% full range
Foaming Pressure
0.5～2.0 MPa
Product Overview
Specially developed for hydrophilic polyurethane sponge pouring molding, suitable for high water absorption products such as wound dressings, incontinence care, maternal and infant products, beauty sponges.
This hydrophilic sponge PU foam pouring machine is purpose-built for the production of high water absorption care products. The 1A1B exclusive single hydrophilic formula ensures stable performance without cross-contamination, making it ideal for small-batch, multi-specification hydrophilic sponge production. Ultra-high precision metering control with ≤±0.3% accuracy produces fine cells and high open cell rate, ensuring stable water absorption and retention from the equipment end. The special hydrophilic modified raw material adaptation system enables fast wetting without liquid rejection, perfect for various care applications. Precise temperature and pressure control during the foaming process ensures uniform softness and improves skin-friendly experience. The machine stably guarantees core characteristics of high water absorption, water retention and softness, meeting strict production requirements of care products with CE, ISO9001, and ISO 10993 Biocompatibility certifications.
Operation Workflow
Raw Material Preparation
Prepare hydrophilic modified polyether polyol and isocyanate (TDI/MDI) according to the target mix ratio (100:85–95). Load materials into the 100/150 L tanks.
Tank Loading & Temperature Setting
Load polyol into Tank A and isocyanate into Tank B. Set Tank A temperature to 25–45°C and Tank B to 20–40°C for optimal hydrophilic foam formulation.
Ultra-High Precision Metering & Mixing

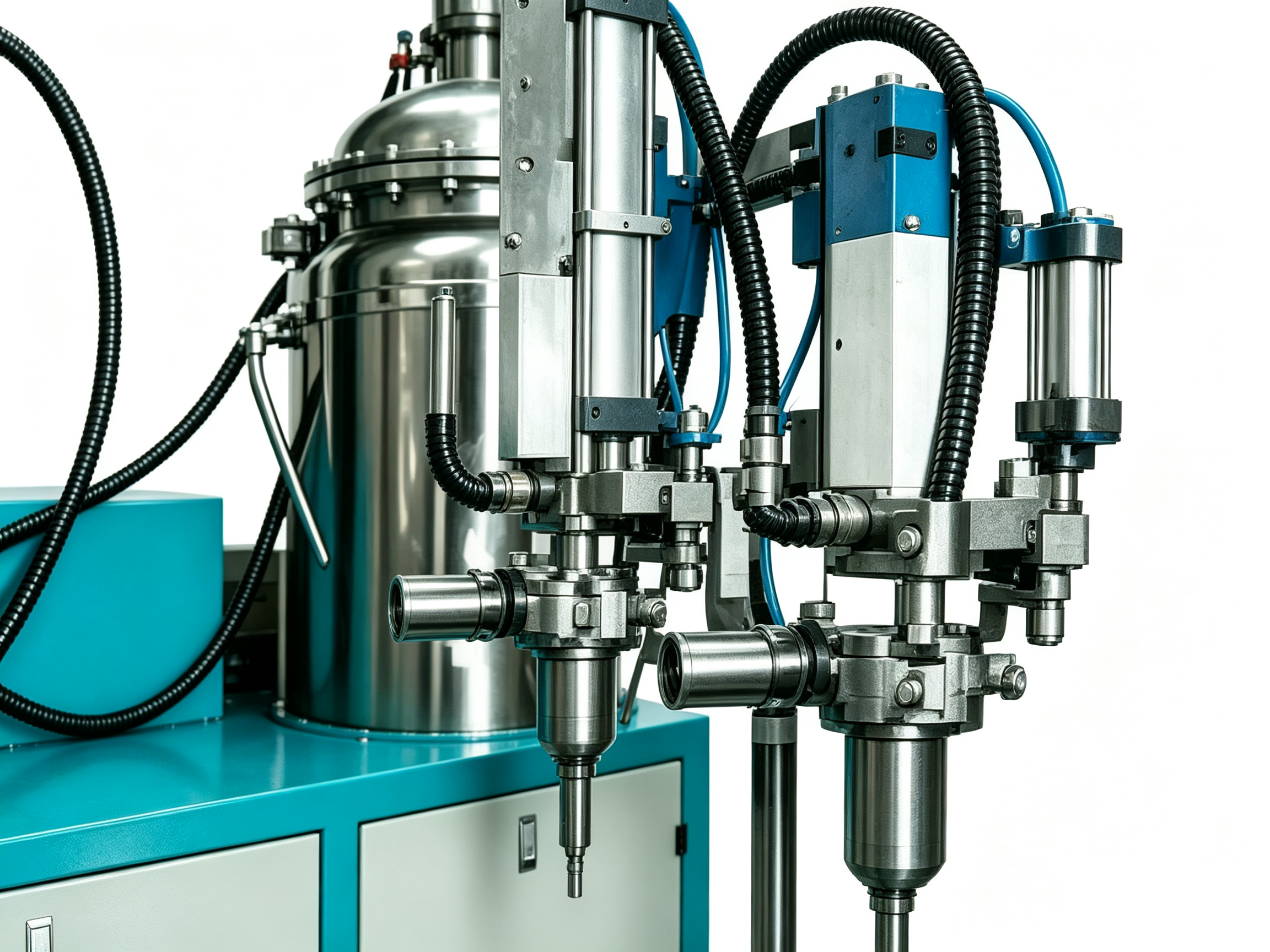

The PLC-controlled dynamic metering system (accuracy ≤±0.3% full range) dispenses materials precisely. The mixing head operates at 5000–9000 r/min under foaming pressure of 0.5–2.0 MPa for homogeneous blending.
Hydrophilic Sponge Pouring & Molding
The mixed material is poured into molds for hydrophilic sponge formation. Fine cells with high open cell rate ensure stable water absorption and retention. Uniform softness is achieved through precise temperature and pressure control.
Request a Customized Hydrophilic Sponge Pouring Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the hydrophilic sponge PU foam pouring machine. Customizations including tank capacity are available upon request.
| Technical Parameter | HF-Sponge-1A1B-HydrophilicSponge |
|---|---|
| Pouring Rate | 50–1000 g/s |
| Raw Material Ratio | Hydrophilic modified polyether polyol : Isocyanate (TDI/MDI) = 100:85–95 |
| Tank Capacity (Optional) | 100 / 150 L |
| Mixing Head Speed | 5000–9000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 1A1B two-component independent temperature control |
| Material Temperature Control (Tank A) | 25–45℃ |
| Material Temperature Control (Tank B) | 20–40℃ |
| Foaming Pressure | 0.5–2.0 MPa |
| Cleaning System | Automatic circulating cleaning + air purge cleaning |
| Power | 5.5–8 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Warranty | 1 year |
| Certifications | CE, ISO9001, ISO 10993 Biocompatibility |
Key Features & Advantages
Engineered for high water absorption, biocompatibility, and production flexibility in hydrophilic sponge manufacturing.
1A1B Exclusive Single Hydrophilic Formula
Stable performance without cross-contamination, suitable for small-batch, multi-specification hydrophilic sponge production with fast, clean changeovers.
Ultra-High Precision Metering Control
Metering accuracy ≤±0.3% produces fine cells and high open cell rate, ensuring stable water absorption and retention from the equipment end.
Special Hydrophilic Modified Raw Material Adaptation System
Enables fast wetting without liquid rejection, perfect for wound dressings, incontinence care, maternal and infant products, and beauty sponges.
Precise Temperature & Pressure Control Foaming Process
Ensures uniform softness and improves skin-friendly experience, meeting the strict quality requirements of care products.
Biocompatibility Certification
Holds ISO 10993 Biocompatibility certification alongside CE and ISO9001, ensuring safety for medical and skin-contact applications.
PLC Intelligent Control with Multi-Formula Storage
PLC + touch screen interface with multi-formula storage simplifies operation and enables rapid changeovers between different sponge specifications.
Enhance Your Care Product Production with High-Performance Hydrophilic Sponge Technology
Our engineering team specializes in hydrophilic polyurethane solutions. Contact us to discuss your specific product applications, biocompatibility requirements, and production capacity needs.
Application Scenarios
Wound dressings, incontinence care, maternal/infant products, beauty sponges with high water absorption.
