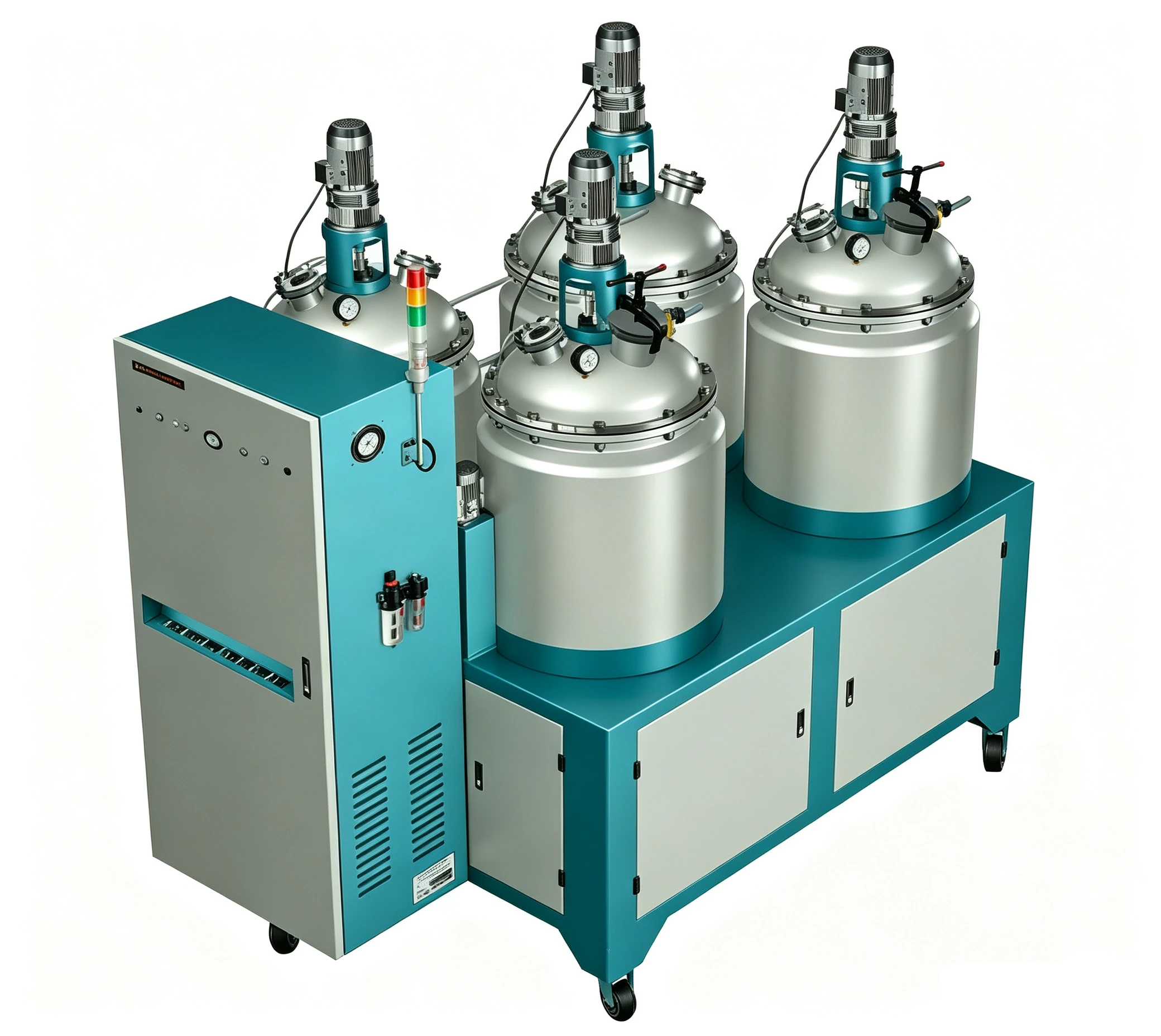

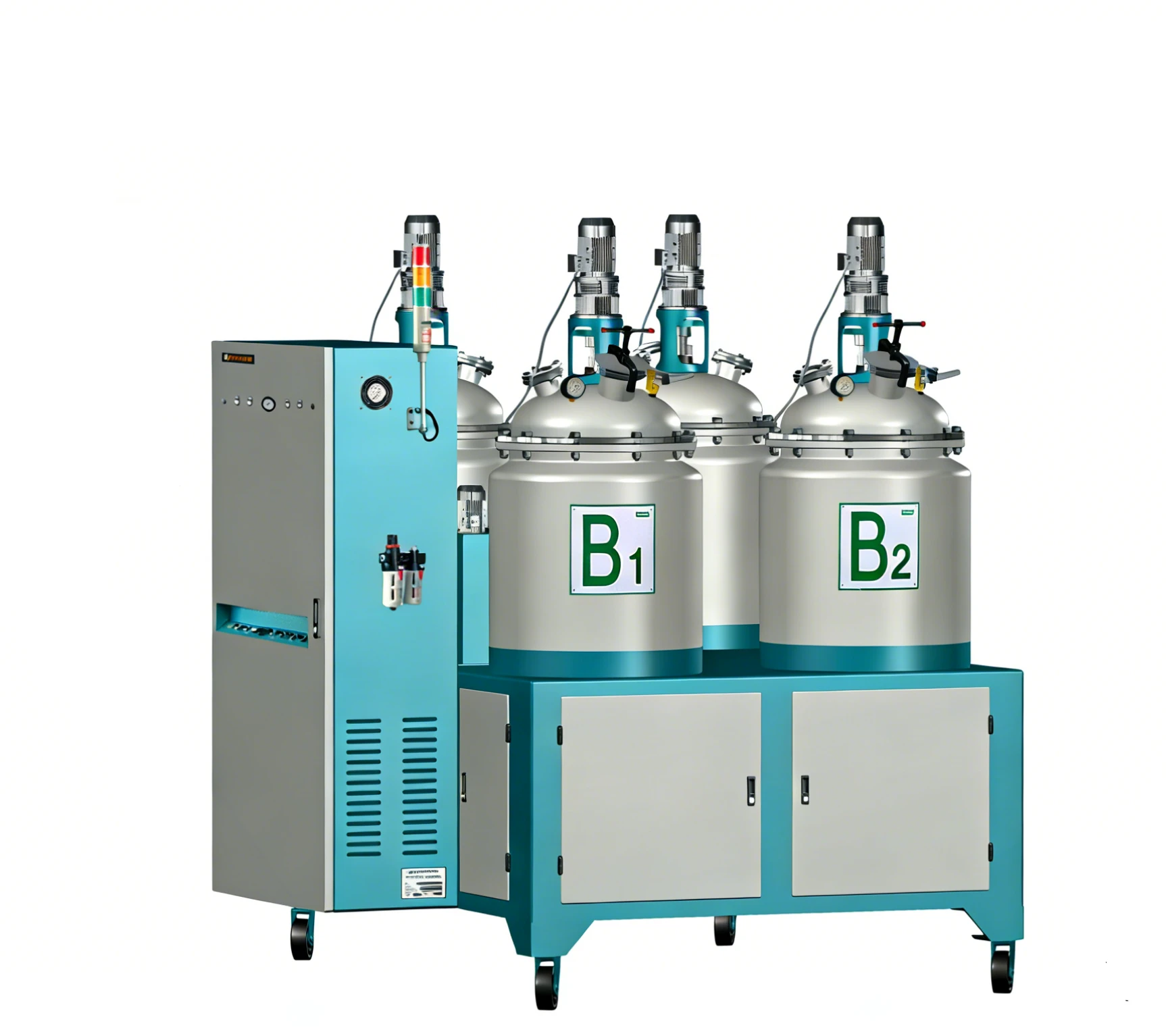

HF-LPM-2A2B-R Cold Storage PU Foam Machine
2A2B four-tank multi-formula rigid foam system for cold storage, cold chain warehouses, storage boards and refrigerated carriages
±0.3% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Specially designed for polyurethane rigid foam insulation of cold storage, cold chain warehouses, cold storage boards and refrigerated carriages.
This low-pressure PU foam machine is purpose-built for polyurethane rigid foam insulation of cold storage facilities, cold chain warehouses, cold storage boards, and refrigerated carriages. The 2A2B four-tank multi-formula system is perfectly suited for complex cold storage rigid foam formulations, ensuring stable material supply without cross-contamination and enabling seamless switching between different formulations. The ultra-high flow wide-range pouring capability (300–6000 g/s) is ideal for cold storage boards and large boxes, delivering full molding without defects and effectively improving insulation quality. Special high-speed mixing (10,000–15,000 r/min) combined with precise temperature control (20–60°C) for rigid foam produces high closed cell rate and low thermal conductivity, ensuring long-term stable insulation performance. The solvent-free eco-friendly cleaning system with stable and reliable operation meets long-hour continuous production needs. The machine meets large-size and high-thickness filling requirements, stably guaranteeing high thermal insulation, flame retardancy, and low thermal conductivity for large-scale cold chain production.
Operation Workflow
Multi-Formula Raw Material Preparation
Prepare polyol and isocyanate components for up to four different formulations. The 2A2B four-tank system enables flexible switching between formulations without cross-contamination.
Tank Loading & Precise Temperature Setting
Load materials into the 2A2B four-tank system. Set precise temperature control within 20–60°C for each tank to ensure optimal material conditioning for rigid foam formulations.
High-Speed Mixing & Ultra-High Flow Pouring
The PLC-controlled metering system (accuracy ≤±1.0% full range) dispenses materials precisely. The mixing head operates at 10,000–15,000 r/min for high-speed rigid foam blending. The ultra-high flow pouring rate (300–6000 g/s) ensures full filling of large cold storage boards and boxes.
Foaming, Curing & Quality Inspection
The mixed rigid foam is injected into cold storage board or box molds. High-speed mixing combined with precise temperature control ensures high closed cell rate and low thermal conductivity for long-term stable insulation performance.
Request a Customized Cold Storage Rigid Foaming Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the cold storage rigid foam PU machine. Customizations are available upon request.
| Technical Parameter | HF-LPM-2A2B-R-ColdStorage | |
|---|---|---|
| Pouring Rate | 300~6000g/s | – |
| Raw Material Ratio | 1:1~1:3 continuously adjustable | – |
| Tank Capacity | 120/220/500/1000L | – |
| Mixing Head Speed | 10000~15000r/min | – |
| Dynamic Metering Accuracy | ≤±1.0% (Full range) | – |
| Tank Configuration | 2A2B four-tank multi-formula system | – |
| Material Temperature Control | 20~60℃ precise temperature control | – |
| Cleaning System | Automatic air-purge + pipeline circulating cleaning (solvent-free, eco-friendly) | – |
| Power | 15~22kW | – |
| Control System | PLC + touch screen + multi-formula storage | – |
| Warranty | 1 year | – |
| Certifications | CE, ISO9001 | – |
Key Features & Advantages
Engineered for complex formulation flexibility, high thermal efficiency, and eco-friendly mass production in cold chain insulation.
2A2B Four-Tank Multi-Formula System
Perfectly suited for complex cold storage rigid foam formulations, providing stable material supply without cross-contamination and enabling seamless switching between different formulas.
Ultra-High Flow Wide-Range Pouring
Pouring rate of 300–6000 g/s is ideal for cold storage boards and large boxes, delivering full molding without defects and effectively improving insulation quality.
Special High-Speed Mixing for Rigid Foam
Mixing head operates at 10,000–15,000 r/min, producing high closed cell rate and low thermal conductivity for long-term stable insulation performance.
Precise Temperature Control (20~60℃)
Ensures optimal material conditioning for rigid foam formulations, guaranteeing consistent quality and reliable insulation properties across all production batches.
Solvent-Free Eco-Friendly Cleaning System
Automatic air-purge + pipeline circulating cleaning enables fast changeovers with zero pollution, meeting modern factory environmental standards.
Intelligent PLC Control with Multi-Formula Storage
PLC + touch screen interface with multi-formula storage simplifies operation, enables precise parameter adjustment, and supports fast changeovers between different cold storage product specifications.
Scale Up Your Cold Chain Insulation Production with High-Performance Rigid Foaming
Our engineering team specializes in cold chain rigid foam solutions. Contact us to discuss your specific cold storage requirements, insulation performance targets, and production capacity needs.
Application Scenarios
Specially designed for polyurethane rigid foam insulation of cold storage, cold chain warehouses, cold storage boards and refrigerated carriages. It meets large-size and high-thickness filling needs, stably guarantees high thermal insulation, flame retardancy and low thermal conductivity, suitable for large-scale cold chain production.
