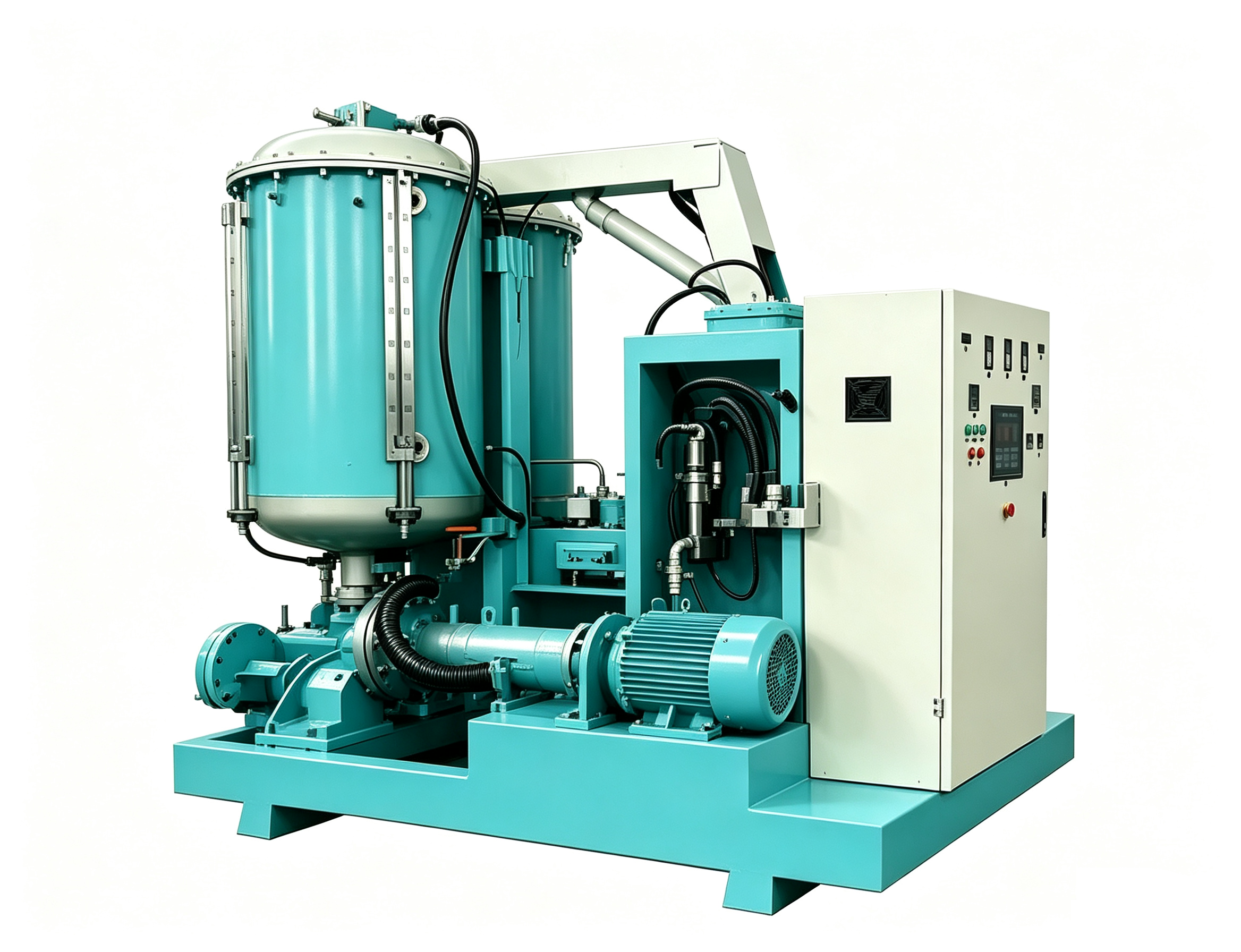

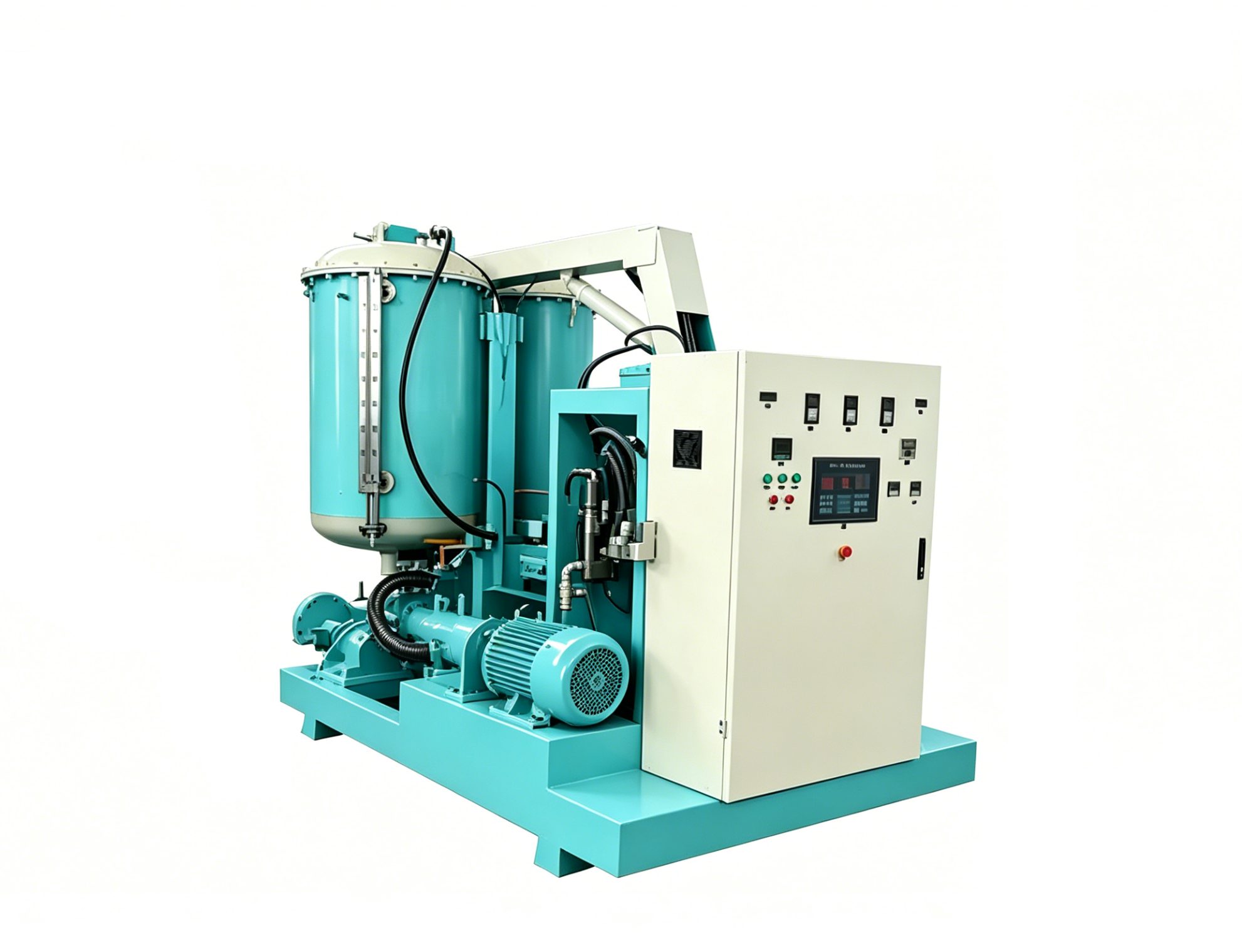

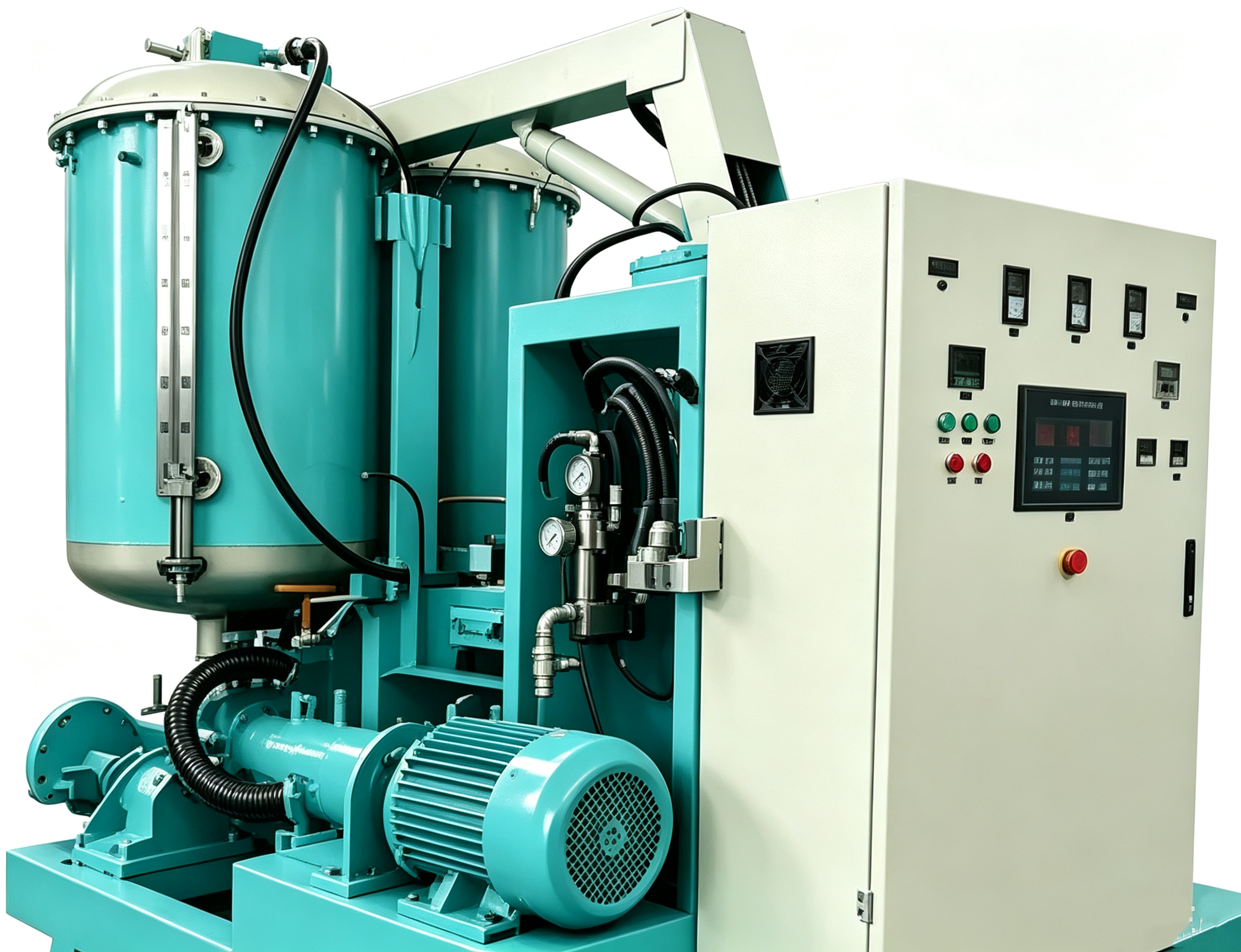

General RIM PU Molding Machine – Model HF‑RIM‑PU‑2A2B
High‑pressure RIM system for carbon fiber, fiberglass & fiber‑reinforced composites, with wide flow range (100‑2000 g/s) for automotive, agricultural, marine & building parts.
Pouring Rate Range
100～2000 g/s
Dosing Accuracy
≤ ±0.3% full dynamic range
Mix Ratio
100:90~110 (Polyether:Isocyanate)
Mixing Pressure
150～200 bar
Product Overview
The HF‑RIM‑PU‑2A2B is a high‑capacity RIM system delivering precise two‑component metering and high‑pressure mixing for carbon, glass, and fiber‑reinforced polyurethane parts.
This advanced RIM‑PU molding machine is engineered for reaction injection molding of fiber‑reinforced composites, covering a wide range of industries including automotive (interior/exterior trims), agricultural machinery components, water sports equipment, and large‑scale building structures. It features independent temperature‑controlled tanks (200L/300L optional) with circulation stirring, a high‑pressure mixing head that ensures homogeneous material blending, and a PLC‑based control system with multi‑formula storage for quick changeover. The pouring rate is adjustable from 100 to 2000 g/s, enabling both delicate precision parts and large‑sized integral components to be produced on the same platform. Mold negative pressure venting combined with high‑pressure homogenization guarantees bubble‑free, high‑strength parts. The cleaning system uses high‑pressure circulation and air purging to minimize maintenance.
Production Workflow
Material Preparation
Load polyether and isocyanate into separate tanks (200L/300L), set temperature (25‑45℃) and start circulation stirring.
Recipe Selection & Ratio Setting
Choose stored recipe on touch screen; adjust mix ratio (100:90‑110) and flow rate (100‑2000 g/s) per part requirement.
High‑Pressure Mixing & Injection
Pump components to mixing head at 150‑200 bar; impact mixing creates homogeneous resin; inject into mold with negative pressure venting for void‑free fill.
Demolding & Cleaning
After curing, demold part; run high‑pressure circulation cleaning and air purge to prepare head for next batch.
Request a Quote for Your RIM‑PU Production Needs
Get a QuoteTechnical Specifications
Specifications are measured under standard ambient conditions (25°C). Actual values may depend on material formulation and mold design.
| Technical Parameter | HF‑RIM‑PU‑2A2B |
|---|---|
| Pouring Rate | 100～2000 g/s |
| Mix Ratio | Polyether: Isocyanate = 100:90~110 |
| Tank Capacity | 200L / 300L (Optional, Per Tank) |
| Dosing Accuracy | ≤ ±0.3% (full dynamic range) |
| Temperature Control Range | 25～45℃ |
| Mixing Pressure | 150～200 bar |
| Venting System | Mold negative pressure venting + high‑pressure homogenization |
| Cleaning System | High‑pressure circulation cleaning + air purging |
| Power Consumption | 15～22 kW |
| Control System | PLC + touch screen + multi‑formula storage |
| Applicable Materials | Carbon fiber / fiberglass / fiber‑reinforced PU composites |
| Warranty | 1 year |
| Certification | CE, ISO9001 |
Key Advantages
Six core benefits that make this machine ideal for flexible, high‑quality production of fiber‑reinforced polyurethane components across multiple industries.
High‑Pressure Homogeneous Mixing
Ensures compact and stable composite structure, delivering consistent mechanical properties for both thin‑walled trims and thick‑section structural parts.
Extremely Wide Adjustable Output
Flow rate from 100 to 2000 g/s covers small precision components (e.g., automotive interior details) and large‑scale integral moldings (e.g., building panels, boat hulls).
Accurate Metering & Proportioning
Closed‑loop ratio control keeps deviation ≤±0.3%, ensuring high finished‑product yield even with varying fiber‑reinforced formulations.
Multi‑Formula Storage & Quick Changeover
PLC stores multiple recipes; fast switching enables flexible production of different parts without lengthy setup, maximizing equipment utilization.
Robust Tank & Temperature Management
Optional 200L/300L tanks with independent temperature control and circulation stirring maintain stable material viscosity for consistent dosing.
Efficient Cleaning & Low Maintenance
High‑pressure circulation cleaning combined with air purging reduces downtime and extends service life of the mixing head and seals.
Let’s Discuss Your Composite Molding Project
Our specialists will help you select the optimal tank capacity, mixing head configuration, and automation features for your specific production volume and part geometry.
Industries & Applications
The HF‑RIM‑PU‑2A2B is widely adopted in automotive interior and exterior parts (bumpers, roof panels, door trims), agricultural machinery components (fenders, hoods), water sports equipment (kayaks, surfboards, jet ski parts), and large‑scale building components (insulated panels, structural frames). It supports carbon fiber, fiberglass, and other fiber‑reinforced polyurethane systems, making it a versatile solution for both customized prototypes and high‑volume mass production.
