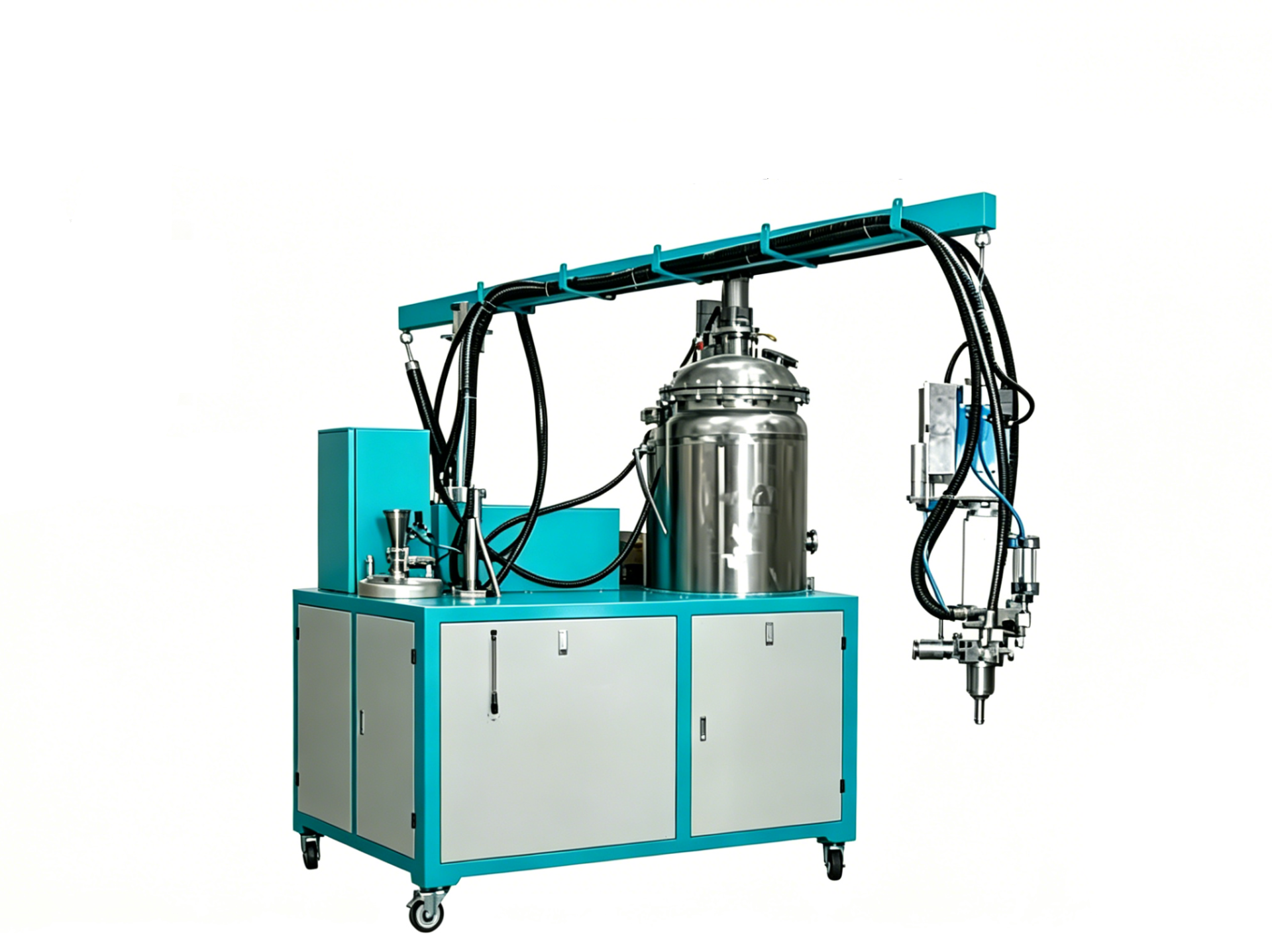

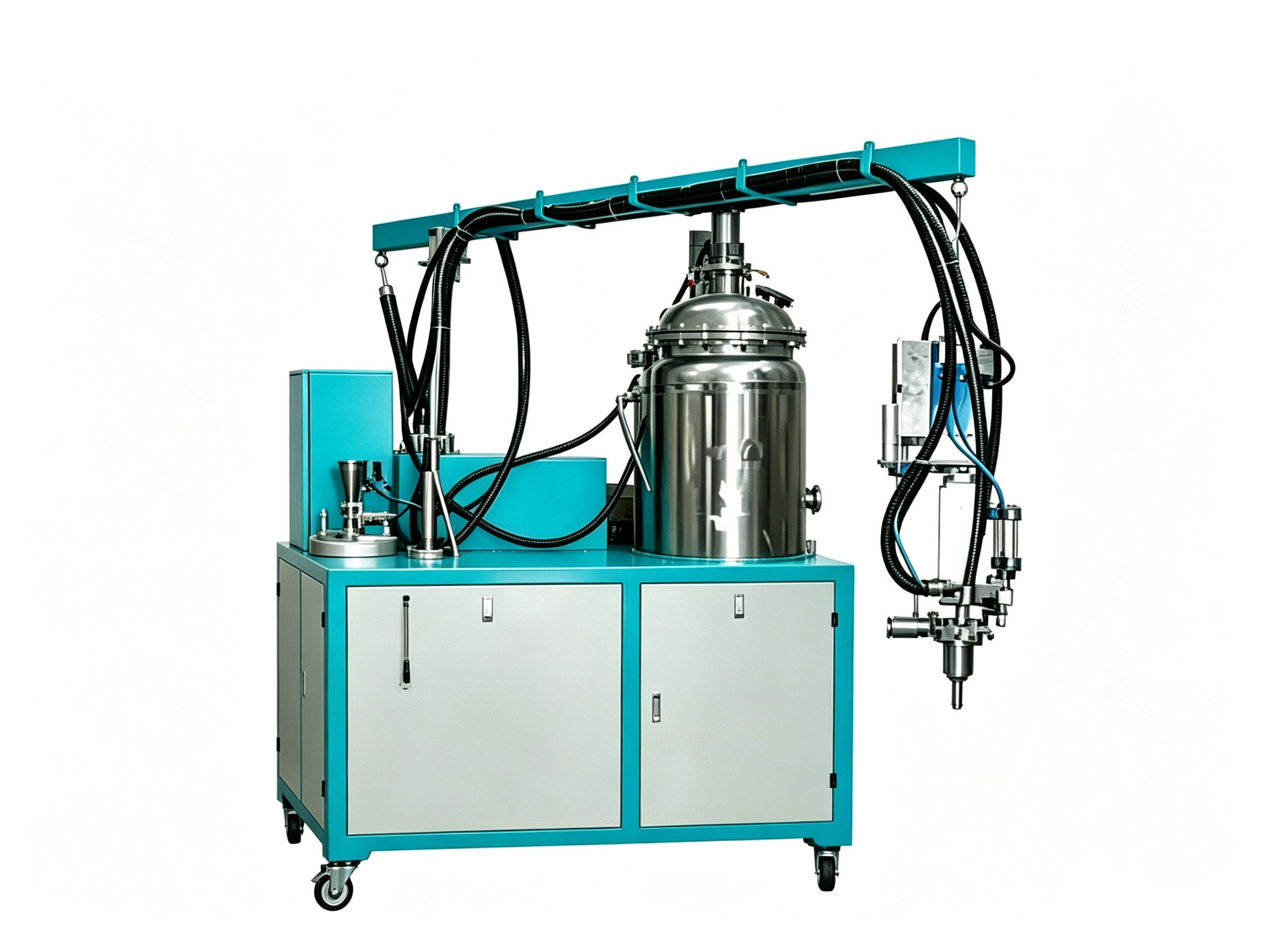

General Foam PU Pouring Machine
Versatile pouring system for general polyurethane foam with 2A2B main tanks and functional additive tank
Pouring Rate
100～2500 g/s
Mix Ratio (Polyol:Isocyanate)
100 : 80~110
Metering Accuracy
≤ ±0.3% full range
Foaming Pressure
0.8～2.0 MPa
Product Overview
Specially built for general polyurethane foam pouring molding, widely suitable for foam production in furniture, automotive interiors, packaging, sports equipment and other industries.
This general foam PU pouring machine is purpose-built for flexible, semi-rigid, and rigid foam production across multiple industries. The 2A2B main tanks plus functional additive tank enable quick switching of flame retardant, antistatic, and other functional formulas, greatly expanding application scenarios. The wide-flow precise pouring design (100–2500 g/s) is perfectly suited for large mold production, effectively improving product qualification rate and production stability. The multi-formula flexible compatible system allows foam switching without core parts replacement, with one‑key operation that improves line efficiency. Dual guarantee of precise temperature control and dynamic metering supports long‑hour continuous operation, stably meeting mass order delivery requirements. The machine holds CE, ISO9001, and RoHS 2.0 certifications.
Operation Workflow
Raw Material & Additive Preparation
Prepare polyether polyol and isocyanate (TDI/MDI) according to the target mix ratio (100:80–110). Load functional additives (flame retardant, antistatic, etc.) into the dedicated additive tank.
Tank Loading & Temperature Setting
Load polyol into Tanks A1/A2 and isocyanate into Tanks B1/B2. Set Tank A temperature to 25–50°C and Tank B to 20–40°C for optimal foam formulation.
Precision Metering, Mixing & Pouring

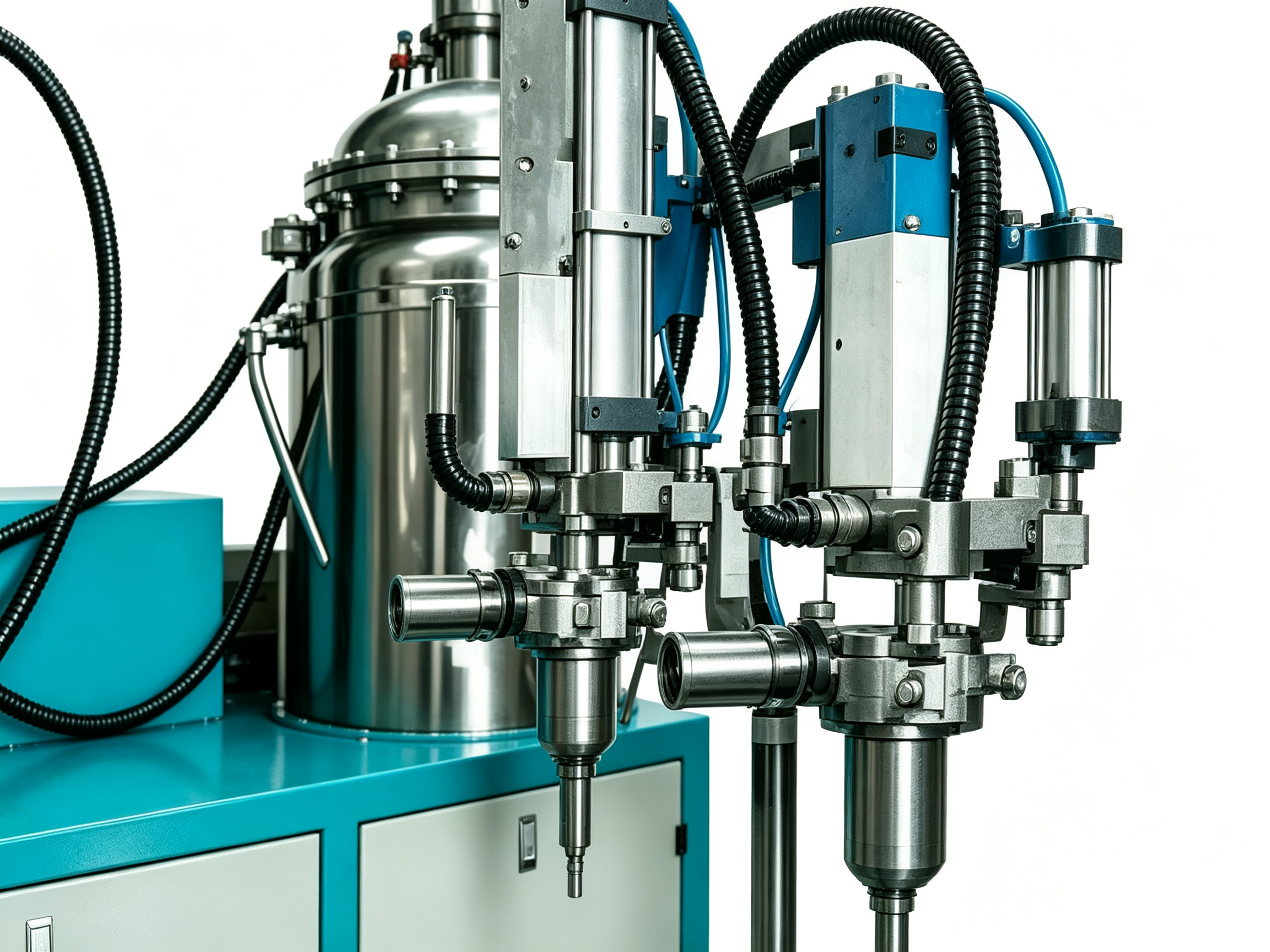

The PLC-controlled dynamic metering system (accuracy ≤±0.3% full range) dispenses materials precisely. The mixing head operates at 4000–8000 r/min under foaming pressure of 0.8–2.0 MPa. The pouring rate range is 100–2500 g/s for different mold sizes.
Foam Molding & Curing
The mixed material is poured into molds for foam formation. The multi-formula flexible compatible system supports flexible, semi-rigid, and rigid foam switching without core parts replacement.
Request a Customized General Foam Pouring Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the general foam PU pouring machine. Customizations including tank capacity and additive options are available upon request.
| Technical Parameter | HF-Sponge-2A2B-GeneralSponge |
|---|---|
| Pouring Rate | 100–2500 g/s |
| Raw Material Ratio | Polyether polyol : Isocyanate (TDI/MDI) = 100:80–110 |
| Tank Capacity (Optional) | 220 / 300 L |
| Mixing Head Speed | 4000–8000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 2A2B main tanks + functional additive tank |
| Material Temperature Control (Tank A) | 25–50℃ |
| Material Temperature Control (Tank B) | 20–40℃ |
| Foaming Pressure | 0.8–2.0 MPa |
| Cleaning System | High-pressure circulating cleaning + air purge cleaning |
| Power | 7.5–15 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Warranty | 1 year |
| Certifications | CE, ISO9001, RoHS 2.0 |
Key Features & Advantages
Engineered for versatility, efficiency, and multi‑formula flexibility in general foam production.
2A2B Main Tanks with Functional Additive Tank
Enables quick switching of flame retardant, antistatic, and other functional formulas, greatly expanding application scenarios across multiple industries.
Wide‑Flow Precise Pouring Design
Pouring rate of 100–2500 g/s is perfectly suited for large mold production, effectively improving product qualification rate and production stability.
Multi‑Formula Flexible Compatible System
Supports flexible, semi‑rigid, and rigid foam switching without core parts replacement. One‑key operation improves line efficiency and reduces changeover time.
Precise Temperature Control & Dynamic Metering
Dual‑guarantee system supports long‑hour continuous operation, stably meeting mass order delivery with consistent product quality.
Wide Industry Application Coverage
Suitable for foam production in furniture, automotive interiors, packaging, sports equipment, and other industries with diverse density and hardness requirements.
PLC Intelligent Control with Multi‑Formula Storage
PLC + touch screen interface with multi‑formula storage simplifies operation, enables one‑key formula switching, and supports efficient production line management.
Expand Your Foam Production Capabilities with Versatile General Foam Pouring Technology
Our engineering team specializes in general polyurethane foam solutions. Contact us to discuss your specific foam types, functional additive requirements, and production capacity needs.
Application Scenarios
Furniture, automotive interiors, packaging, sports equipment, and industrial foam products.
