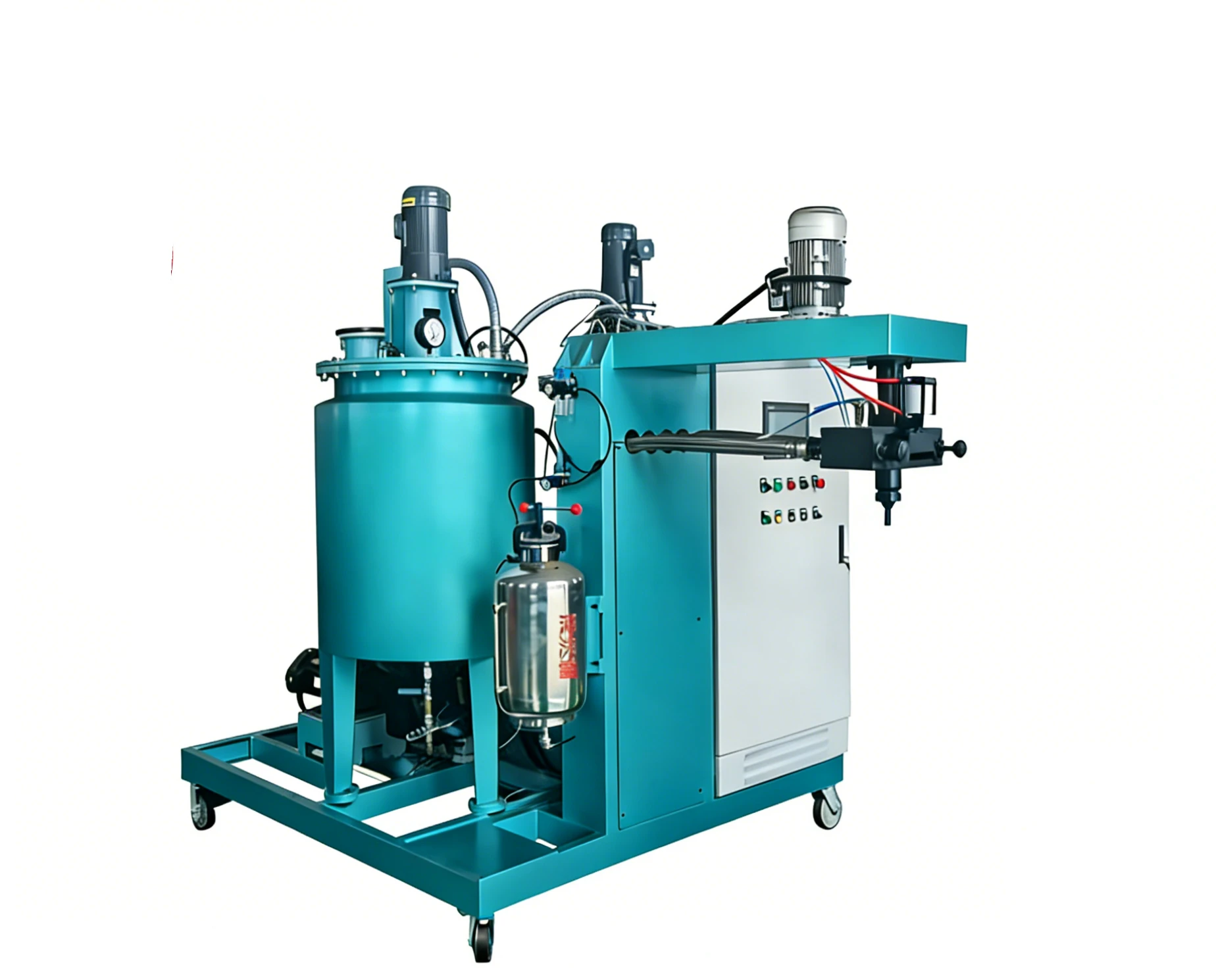

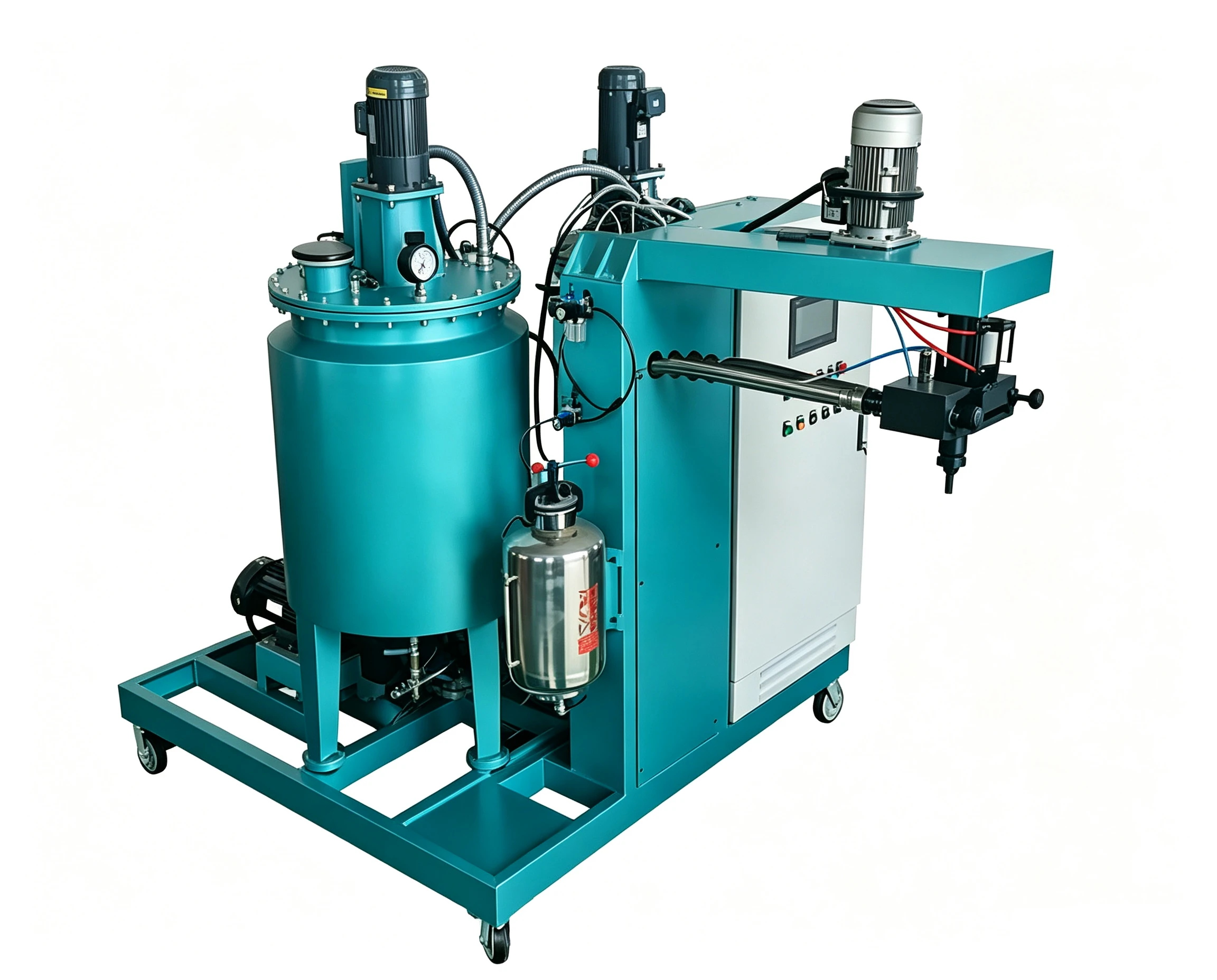

Extrusion Roller PU Casting Machine
Heavy-duty casting system for polyurethane rollers used in extrusion industry, supporting wear-resistant additives and dual chain extender processes
±0.3% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Specially designed for the production of polyurethane rollers for extrusion industry, widely suitable for extrusion molding equipment such as plastic, rubber and metal plates.
This PU casting machine is purpose-built for manufacturing polyurethane rollers used in extrusion production lines. The 2A2B two-component system includes a dedicated wear-resistant additive tank, compatible with reinforcing fillers to produce rubber layers that are wear-resistant, tear-resistant, and stable under pressure without deformation after long-term extrusion. The system supports flexible switching between MOCA and BDO chain extenders, allowing adjustment of hardness and resilience to suit different material extrusion conditions. Dynamic precise metering and temperature control ensure uniform rubber layer hardness, minimal compression set, and stable operation, guaranteeing the dimensional accuracy of extruded products while avoiding scratches and deformation. With strong adhesion between the rubber layer and the roller core, the machine delivers stable and reliable operation for long-term continuous production, extending roller service life and adapting to high-load continuous operation across various extrusion production lines.
Operation Workflow
Raw Material & Additive Preparation
Prepare CPU prepolymer and chain extender (MOCA or BDO) according to the target mix ratio. Select appropriate wear-resistant additives and reinforcing fillers, and load into the dedicated additive tank.
Tank Loading & Temperature Setting
Load prepolymer into Tank A and chain extender into Tank B. Set Tank A temperature to 30–80°C, and Tank B temperature based on the selected formula (MOCA: 90–115°C; BDO: 25–50°C).
Vacuum Defoaming
Activate the vacuum defoaming system to achieve vacuum level ≤-0.095MPa, removing bubbles from all components to ensure dense, pore-free rubber layers with consistent mechanical properties.
Precision Metering, Mixing & Casting
The PLC-controlled dynamic metering system (accuracy ≤±0.3% full range) dispenses materials precisely. The mixing head operates at 7000–11000 r/min for homogeneous blending. The pouring rate is adjustable within 60–1100 g/s to accommodate different roller specifications.
Request a Customized Extrusion Roller Casting Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the extrusion roller PU casting machine. Customizations are available upon request.
| Technical Parameter | HF-CPUE-2A2B-Roller-Extrusion |
|---|---|
| Pouring Rate | 60～1100 g/s |
| Raw Material Ratio | MOCA: 100:9~12; BDO: 100:3~6 |
| Tank Capacity | 150 / 220 L |
| Mixing Head Speed | 7000～11000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 2A2B two-component + wear-resistant additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | High-pressure circulating cleaning + air purge cleaning |
| Power | 7.5～11 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Features & Advantages
Engineered for wear resistance, stability, and long-term reliability in high-load extrusion roller production.
2A2B Configuration with Wear-Resistant Additive Tank
Compatible with reinforcing fillers, producing rubber layers that are wear-resistant and tear-resistant, stable under pressure and not deformed after long-term extrusion.
Dynamic Precise Metering & Temperature Control
Ensures uniform rubber layer hardness, minimal compression set, and stable operation, guaranteeing the molding accuracy of extruded products.
MOCA/BDO Dual Chain Extender Switching
Flexibly adjust hardness and resilience to suit different material extrusion conditions, from plastics and rubber to metal plates.
Strong Adhesion & Extended Service Life
Strong adhesion between rubber layer and roller core ensures stable and reliable operation for long-term continuous production, prolonging roller service life.
Vacuum Defoaming (≤-0.095MPa)
Produces dense, pore-free rubber layers with consistent quality, eliminating defects that could compromise extrusion performance.
Intelligent PLC Control with Multi-Formula Storage
PLC + touch screen interface with multiple formula memory simplifies operation, reduces manual errors, and enables rapid changeovers between formulations for different extrusion line requirements.
Optimize Your Extrusion Production Line with Durable Roller Solutions
Our engineering team specializes in high-load extrusion roller casting. Contact us to discuss your specific material conditions, hardness requirements, and production capacity needs.
Application Scenarios
Specially designed for the production of polyurethane rollers for extrusion industry, widely suitable for extrusion molding equipment such as plastic, rubber and metal plates. Used for material guiding, pressing and conveying, meeting the core needs of high-load extrusion, wear resistance, deformation resistance and stable operation, ensuring the dimensional accuracy of extruded products, avoiding scratches and deformation, and adapting to high-load continuous operation of various extrusion production lines.
