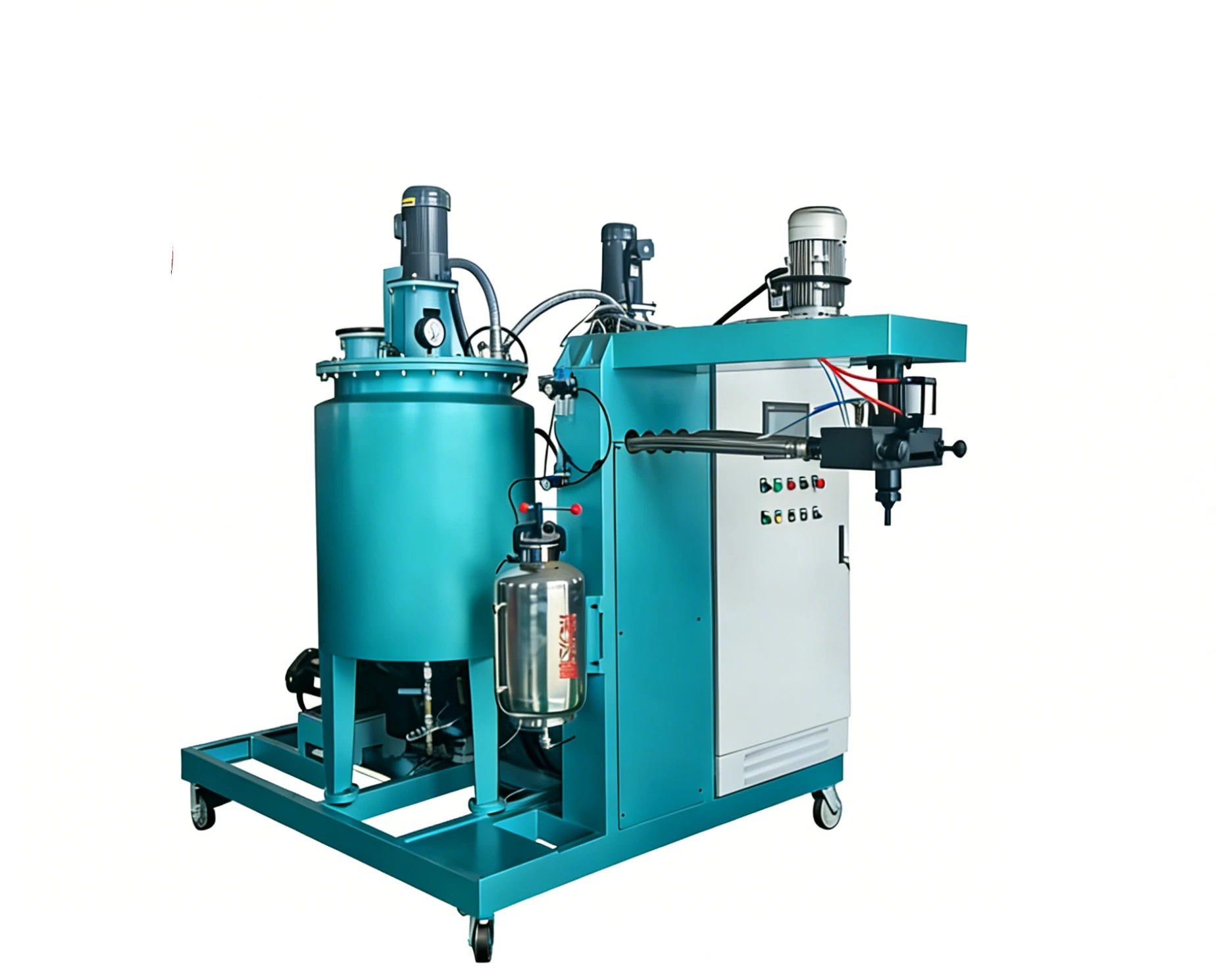

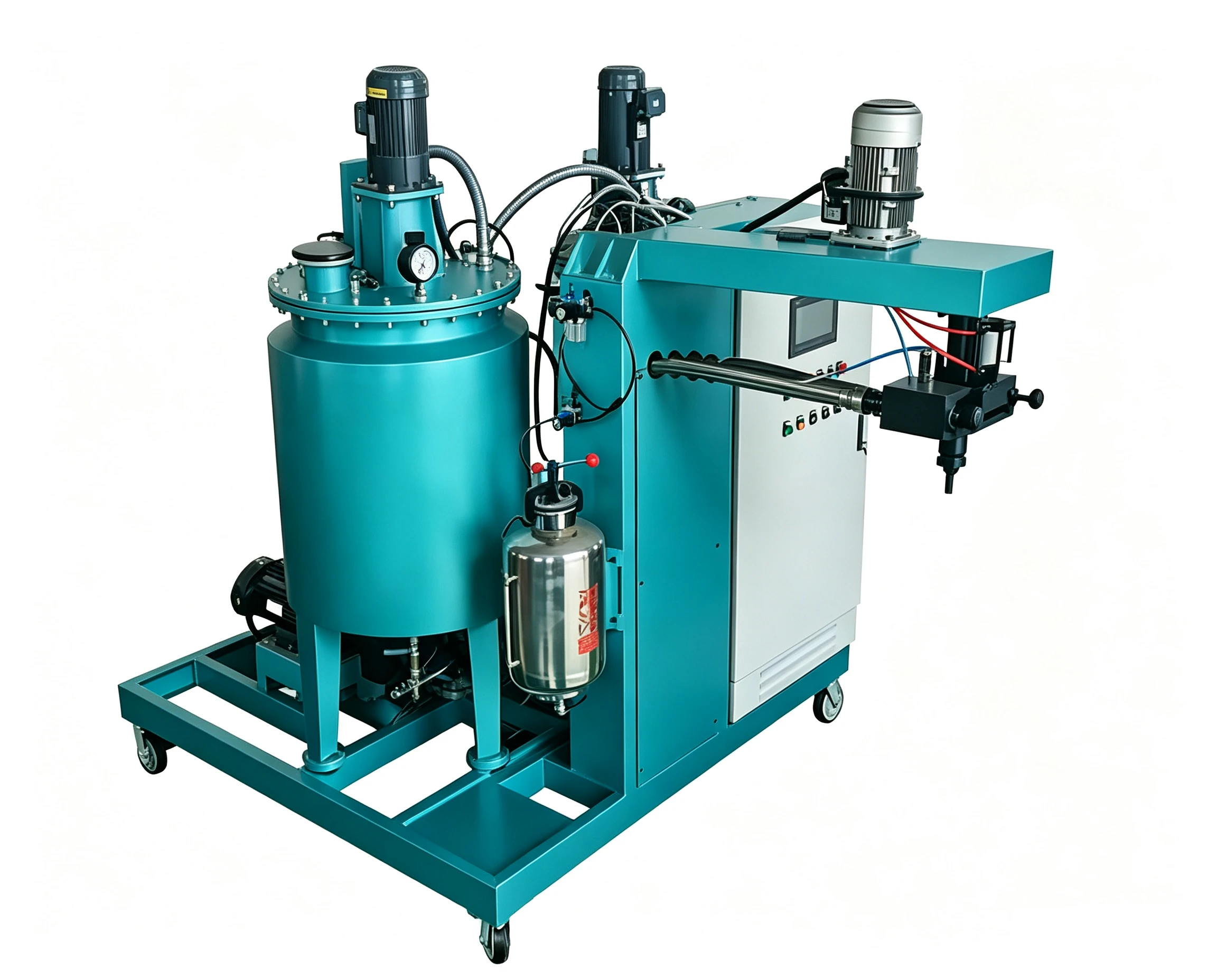

Dyeing Roller PU Elastomer Casting Machine
Corrosion-resistant casting system for dyeing industry rollers, featuring anti-corrosion additives and high-flow stable pouring
±0.3% Accuracy
Ratio precision
loT Ready
Remote monitoring
30% Energy Save
vs.conventional
2-4 Components
Flexible config
Product Overview
Specially designed for large-scale production of polyurethane rollers in the dyeing industry, widely suitable for key dyeing processes such as pad dyeing, printing and mercerizing.
This PU elastomer casting machine is purpose-built for the large-scale production of polyurethane rollers used in the dyeing industry, including pad dyeing rollers, printing rollers, and mercerizing rollers. The 2A2B two-component system includes a dedicated anti-corrosion additive tank, producing rubber layers that are acid, alkali and dye resistant, suitable for stable production in harsh dyeing conditions with high temperature and humidity. High-flow stable pouring (80–1200 g/s) is ideal for large-size dyeing roller molds, ensuring full filling and strong adhesion to prolong roller service life. The system supports flexible switching between MOCA and BDO chain extenders, allowing process adjustment according to roller types to balance corrosion resistance and elasticity. With stable continuous operation, the machine delivers smooth roller surfaces without cloth sticking, effectively improving dyeing production efficiency. The machine meets the production needs of high elasticity, wear resistance and uniform liquid transfer, improving the color uniformity of dyed products.
Operation Workflow
Raw Material & Additive Preparation
Prepare CPU prepolymer and chain extender (MOCA or BDO) according to the target mix ratio (MOCA: 100:10~13; BDO: 100:4~6). Select anti-corrosion additives and load into the dedicated additive tank.
Tank Loading & Temperature Setting
Load prepolymer into Tank A and chain extender into Tank B. Set Tank A temperature to 30–80°C, and Tank B temperature based on selected formula (MOCA: 90–115°C; BDO: 25–50°C).
Vacuum Defoaming
Activate the vacuum defoaming system to achieve vacuum level ≤-0.095MPa, removing bubbles to ensure dense, void-free rubber layers with consistent mechanical properties.
High-Flow Metering, Mixing & Casting
The PLC-controlled dynamic metering system (accuracy ≤±0.3% full range) dispenses materials precisely. The mixing head operates at 6000–10000 r/min for homogeneous blending. The high-flow pouring rate (80–1200 g/s) ensures full filling of large-size dyeing roller molds.
Request a Customized Dyeing Roller Casting Solution
Get a QuoteTechnical Specifications
Standard configuration parameters for the dyeing roller PU elastomer casting machine. Customizations are available upon request.
| Technical Parameter | HF-CPUE-2A2B-Roller-Dyeing |
|---|---|
| Pouring Rate | 80～1200 g/s |
| Raw Material Ratio | MOCA: 100:10~13; BDO: 100:4~6 |
| Tank Capacity | 220 L |
| Mixing Head Speed | 6000～10000 r/min |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Tank Configuration | 2A2B two-component + anti-corrosion additive tank |
| Material Temperature Control | Tank A: 30~80℃; Tank B: MOCA(90~115℃)/BDO(25~50℃) |
| Vacuum Defoaming | Vacuum ≤-0.095MPa |
| Cleaning System | Automatic circulation + air purge cleaning |
| Power | 11～15 kW |
| Control System | PLC + touch screen + multi-formula storage |
| Applicable System | CPU Prepolymer + MOCA/BDO Chain Extender |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Features & Advantages
Engineered for corrosion resistance, durability, and efficiency in demanding dyeing production environments.
2A2B Configuration with Anti-Corrosion Additive Tank
Rubber layer is acid, alkali and dye resistant, suitable for stable production in harsh dyeing conditions with high temperature and humidity.
High-Flow Stable Pouring
Pouring rate of 80–1200 g/s is ideal for large-size dyeing roller molds, ensuring full filling and strong adhesion to prolong roller service life.
MOCA/BDO Dual Chain Extender Switching
Flexibly adjust process according to roller types, balancing corrosion resistance and elasticity for pad dyeing, printing and mercerizing rollers.
Smooth Roller Surface Without Cloth Sticking
Stable continuous operation delivers smooth roller surfaces, effectively improving dyeing production efficiency and preventing fabric defects.
Vacuum Defoaming (≤-0.095MPa)
Eliminates bubbles and voids, ensuring dense rubber layers with consistent mechanical properties for uniform liquid transfer.
Intelligent PLC Control with Multi-Formula Storage
PLC + touch screen interface with multiple formula memory simplifies operation, reduces errors, and enables rapid changeovers between formulations for different roller types.
Upgrade Your Dyeing Production Line with Durable Roller Solutions
Our engineering team specializes in dyeing industry roller casting solutions. Contact us to discuss your specific roller types, dyeing conditions, and production capacity requirements.
Application Scenarios
Specially designed for large-scale production of polyurethane rollers in the dyeing industry, widely suitable for key dyeing processes such as pad dyeing, printing and mercerizing. It can produce special rollers including pad dyeing rollers, printing rollers and mercerizing rollers. The machine adapts to high temperature and humidity dyeing conditions, ensures the rollers are acid and alkali resistant, dye resistant, and meets the production needs of high elasticity, wear resistance and uniform liquid transfer, improving the color uniformity of dyed products.
