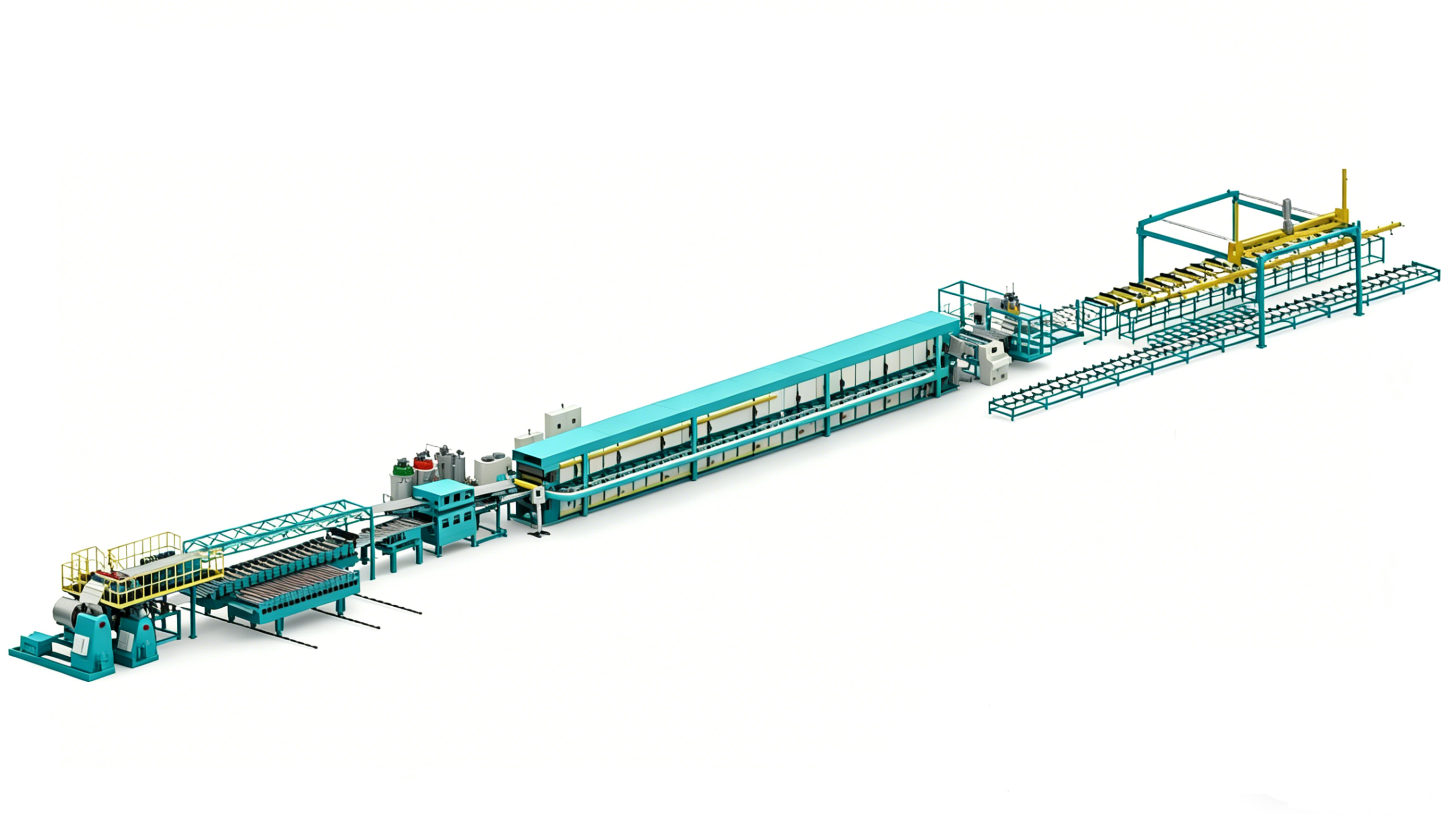

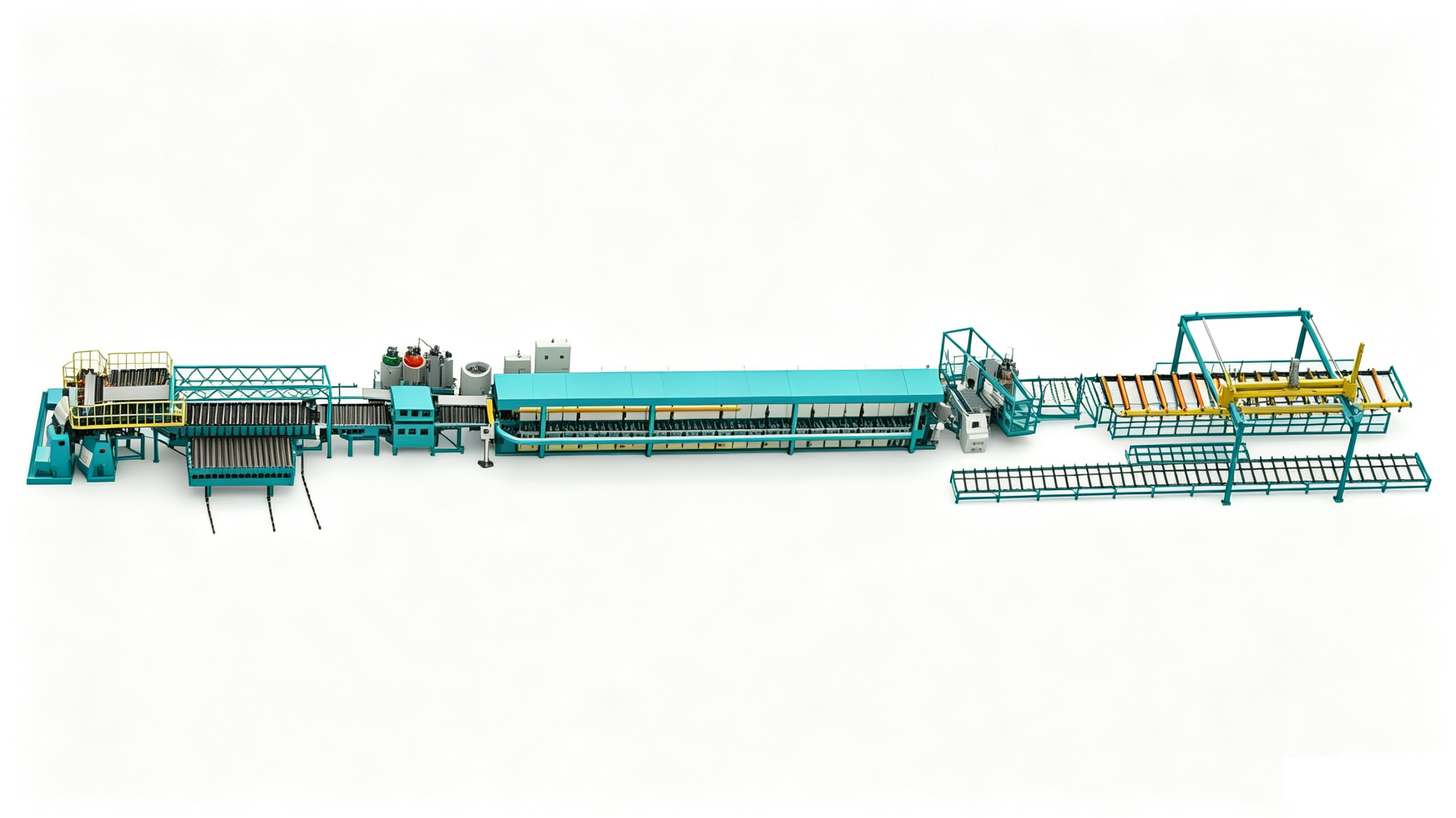

Continuous PU Sandwich Panel Production Line
Fully‑continuous rigid foam system for building insulation & cold storage panels, with stepless speed regulation (1‑15 m/min), 30‑200 mm thickness, and full‑line linkage control.
Production Line Speed
1～15 m/min (stepless)
Metering Accuracy
≤ ±0.3% full range
Panel Thickness Range
30～200 mm
Mixing Pressure
10～18 MPa
Product Overview
The HF‑CLPS‑Continuous is a fully‑automated continuous PU panel line with stepless speed control, delivering uniform rigid foam for building, cold storage & prefab applications.
This continuous polyurethane sandwich panel production line is specially designed for large‑scale, high‑volume manufacturing of insulation panels used in building exterior walls, cold storage walls, clean workshops, and prefabricated buildings. It supports composite with various facing materials including color steel, aluminum foil, and paper honeycomb, meeting the core requirements of uniform panel density, thermal insulation, flame retardancy, compression resistance, and standard dimensional accuracy. The system features independent temperature‑controlled tanks (200L/300L) with two‑component independent temperature management (20‑45℃), a high‑pressure mixing head (10‑18 MPa) with dynamic metering accuracy of ≤±0.3%, and a PLC‑based full‑line linkage control system with touch screen interface. The production line speed is continuously adjustable from 1 to 15 m/min via stepless speed regulation, enabling rapid switching between different panel thicknesses (30‑200 mm) and specifications. The heating system employs precise roller and mold temperature control to ensure optimal curing conditions. The cleaning system combines automatic circulation and air purge cleaning, completely solvent‑free and environmentally friendly, reducing maintenance time and chemical waste. This line significantly improves production efficiency and capacity while maintaining consistent quality across large‑scale operations.
Production Workflow
Continuous Lamination & Conveying
Feed top and bottom facing materials (color steel, aluminum foil, etc.) into the continuous laminator; set line speed (1‑15 m/min) per panel thickness and cure requirements.
Recipe Selection & Ratio Setting
Choose stored formula on PLC touch screen; set A:B ratio (100:100‑130) and temperature parameters (20‑45℃) for the specific panel type.

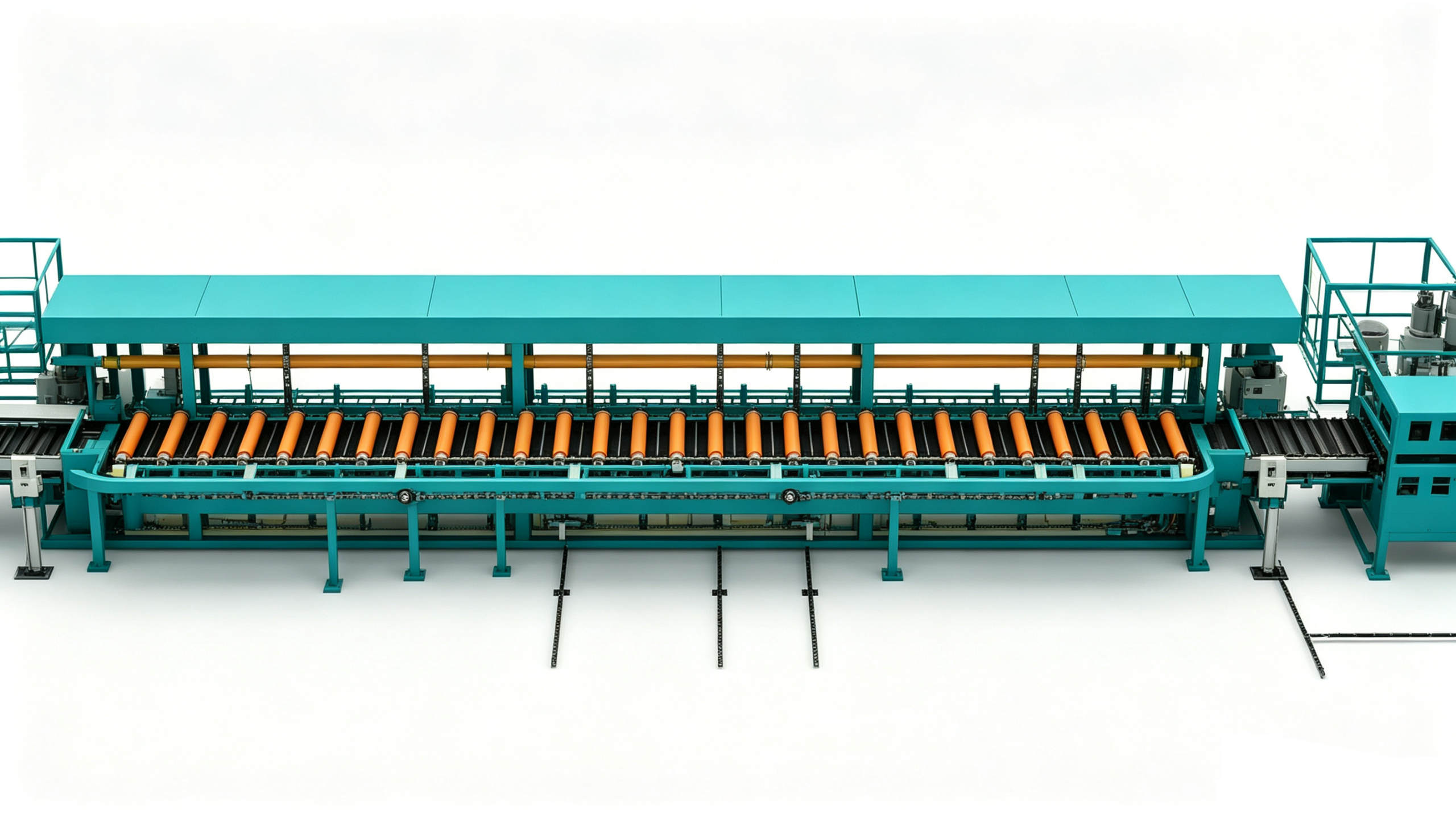

High‑Pressure Pouring & Curing
PU rigid foam is injected between facing layers at 10‑18 MPa; panel travels through heated rollers/molds for controlled curing and expansion.
Cutting, Stacking & Cleaning
Continuous panel is cut to specified lengths, stacked for packing; automatic circulation + air purge cleaning prepares mixing head for ongoing production.
Request a Quote for Your Continuous Panel Production Line
Get a QuoteTechnical Specifications
Specifications are based on standard configurations at ambient conditions. Custom speeds, thickness ranges, and facing material compatibility available upon request.
| Technical Parameter | HF-CLPS-Continuous |
|---|---|
| Production Line Speed | 1～15 m/min (Stepless Speed Regulation) |
| Mixing Pressure | 10～18 MPa |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Raw Material Ratio | Polyether : Isocyanate = 100:100~130 |
| Tank Capacity | 200 / 300 L |
| Material Temperature Control | 20～45℃ (Two-component Independent Control) |
| Heating System | Precise Roller/Mold Temperature Control |
| Cleaning System | Automatic Circulation + Air Purge Cleaning (Solvent-free & Eco-friendly) |
| Control System | PLC + Touch Screen + Full-line Linkage Control |
| Applicable System | Polyurethane Rigid Foam Insulation System |
| Applicable Panel Thickness | 30～200 mm |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Advantages
Six engineering benefits that enable high‑capacity, automated production of rigid foam sandwich panels with consistent quality and low operating costs.
Continuous Full‑Line Automatic Production
Stepless speed regulation (1‑15 m/min) ensures maximum throughput and flexibility; integrated conveying, pouring, curing, cutting, and stacking in one continuous process.
High‑Pressure Precise Mixing & Foaming
Produces fine, uniform panel cells with no voids or faults, ensuring consistent thermal insulation and compression resistance up to standard specifications.
Accurate Two‑Component Metering & Ratio
Dynamic metering accuracy of ≤±0.3% and ratio control (100:100‑130) maximize raw material utilization, reducing production loss and costs.
Full‑Line Linkage Intelligent Control
PLC + touch screen integrates all production sections; real‑time monitoring and automated adjustments enable rapid switching between multiple panel specifications and thicknesses.
Multi‑Material Facing Compatibility
Supports various facing materials including color steel, aluminum foil, paper honeycomb, and custom composites, offering versatility for different insulation applications.
Solvent‑Free Eco‑Friendly Cleaning
Automatic circulation + air purge cleaning eliminates chemical solvents, reduces environmental impact, and simplifies maintenance for continuous long‑run production.
Let’s Build Your Continuous Panel Production Capacity
Our engineering team will help you select the optimal line speed, tank capacity, heating configuration, and facing material compatibility for your specific insulation panel portfolio and volume targets.
Industries & Applications
The HF‑CLPS‑Continuous is specially designed for large‑scale production of polyurethane sandwich panels used in building exterior wall insulation systems, cold storage and freezer walls, clean workshops and pharmaceutical facilities, prefabricated building components, and industrial insulation panels. It supports composite with color steel, aluminum foil, paper honeycomb, and other facing materials, meeting the growing demand for energy‑efficient, flame‑retardant, and structurally sound insulation products in the building materials industry.
Product Video
Full demonstration of the HF‑CLPS‑Continuous line producing color‑steel‑faced sandwich panels with automatic cutting and stacking.
