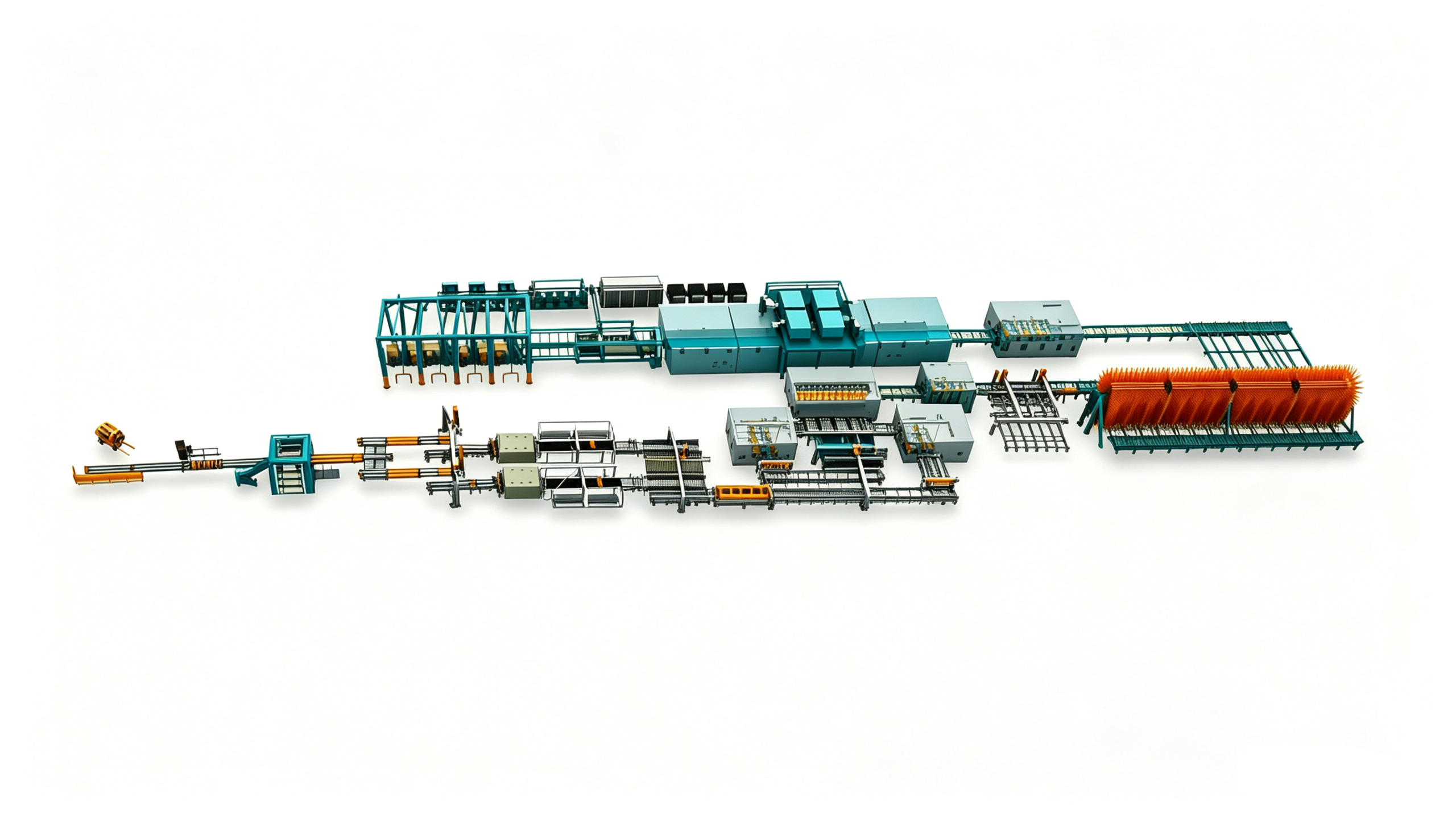

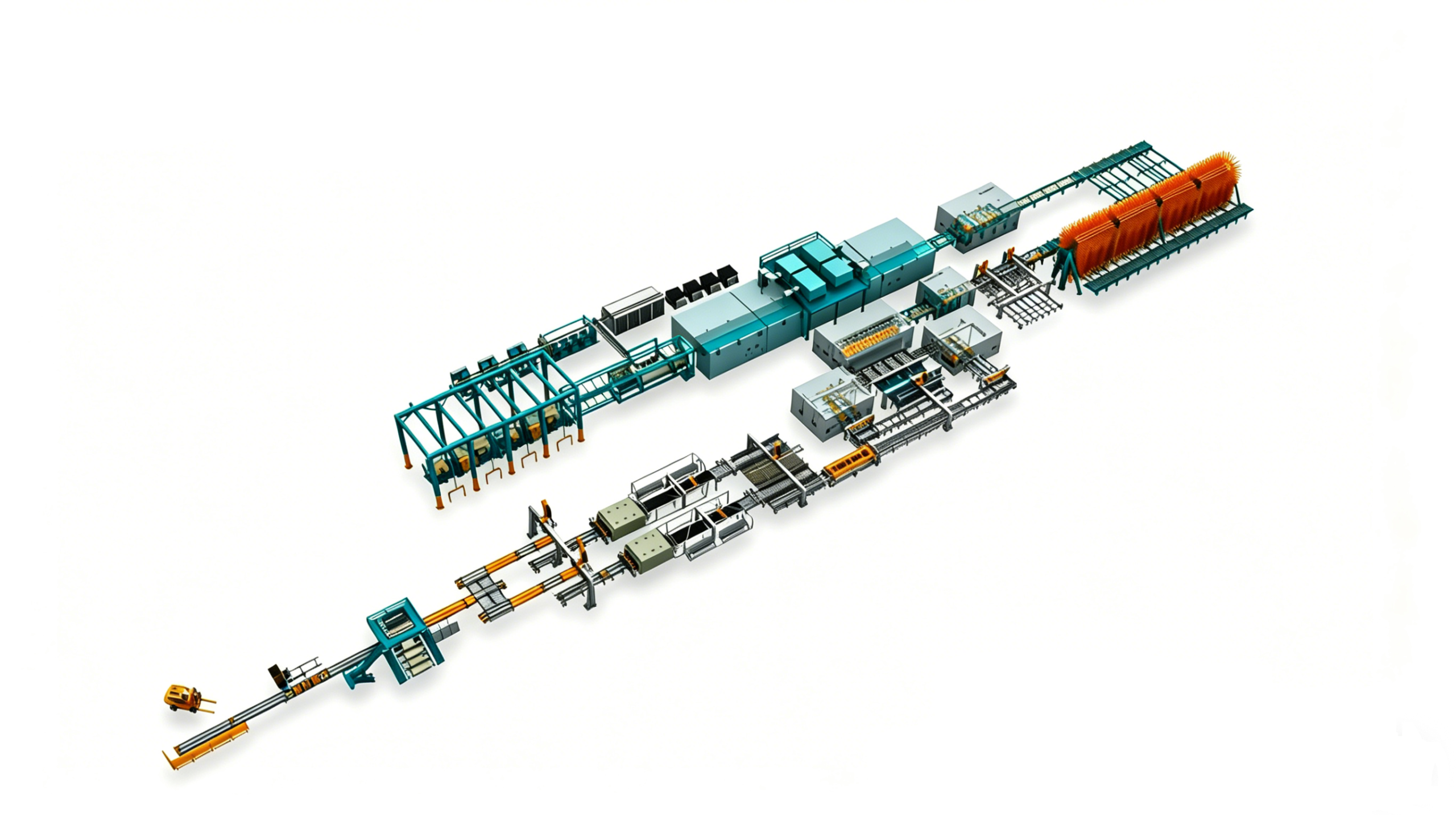

Batch Type PU Sandwich Panel Production Line
Batch‑type rigid foam system for custom sandwich panels & special‑shaped panels, with hydraulic mold clamping, 20‑300 mm thickness range, and solvent‑free air purge cleaning.
Mold Forming Cycle
3～10 min/panel
Metering Accuracy
≤ ±0.3% full range
Panel Thickness Range
20～300 mm
Mixing Pressure
8～15 MPa
Product Overview
The HF‑CLPS‑Batch is a batch‑type PU sandwich panel line for custom/special‑shaped panels, offering hydraulic clamping, 20‑300 mm thickness, and precise single‑mold control.
This batch‑type polyurethane sandwich panel production line is specially designed for customized PU sandwich panels, special‑shaped panels, and small‑batch panels with non‑standard specifications. It is ideal for laboratory sampling, non‑standard building material production, and specialized insulation panel manufacturing, meeting the core requirements of flexible mold replacement, panel customization, and dense, void‑free cell structure. The system features a hydraulic mold clamping system with precise temperature control, independent two‑component temperature management (20‑45℃) in 100L/200L tanks, and a PLC‑based control system with touch screen interface. The single‑mold foaming control ensures precise forming quality across a wide panel thickness range of 20‑300 mm. The mixing head operates at 8‑15 MPa with dynamic metering accuracy of ≤±0.3%, ensuring consistent foam density and ratio stability (polyether:isocyanate = 100:100‑130). The automatic air purge cleaning system is solvent‑free and environmentally friendly, simplifying operation and reducing maintenance costs. With a compact footprint and low investment cost, this line is particularly suitable for small‑to‑medium capacity and multi‑variety flexible production scenarios.
Production Workflow
Mold Preparation & Setup
Install selected mold for desired panel size/shape; set hydraulic clamping pressure and mold temperature (20‑45℃) per insulation requirements.
Recipe Selection & Ratio Setting
Choose stored formula on PLC touch screen; set A:B ratio (100:100‑130) and cycle time (3‑10 min) per panel thickness and density target.
Foam Injection & Molding
Inject PU rigid foam into closed mold at 8‑15 MPa; foam fills cavity and cures under controlled temperature and pressure.
Demolding & Cleaning
Open hydraulic clamp after curing cycle; remove finished panel; trigger automatic air purge cleaning to prepare mixing head for next mold.
Request a Quote for Your Custom Sandwich Panel Production
Get a QuoteTechnical Specifications
Specifications are based on standard configurations at ambient conditions. Mold dimensions, cycle times, and thickness ranges are customizable per customer requirements.
| Technical Parameter | HF-CLPS-Batch |
|---|---|
| Single Mold Forming Cycle | 3～10 min/panel |
| Mixing Pressure | 8～15 MPa |
| Dynamic Metering Accuracy | ≤±0.3% (Full range) |
| Raw Material Ratio | Polyether : Isocyanate = 100:100~130 |
| Tank Capacity | 100 / 200 L |
| Material Temperature Control | 20～45℃ (Two-component Independent Control) |
| Molding System | Hydraulic Mold Clamping + Precise Temperature Control |
| Cleaning System | Automatic Air Purge Cleaning (Solvent-free & Eco-friendly) |
| Control System | PLC + Touch Screen + Single Mold Precise Control |
| Applicable System | Polyurethane Rigid Foam Insulation System |
| Applicable Panel Thickness | 20～300 mm |
| Warranty | 1 year |
| Certifications | CE, ISO9001 |
Key Advantages
Six engineering benefits that make this line ideal for flexible, customized sandwich panel production with low investment and easy operation.
Batch Molding with Quick Mold Change
Designed for non‑standard and special‑shaped panel production; molds can be changed quickly to accommodate different sizes and profiles with minimal downtime.
Wide Panel Thickness Range
Supports 20‑300 mm panel thickness on a single machine, covering insulation boards, structural panels, and specialized composite panels.
Precise Single‑Mold Foaming Control
Individual mold parameter control ensures stable, defect‑free forming quality even for complex shapes and varying thickness requirements.
Solvent‑Free Automatic Air Purge Cleaning
Eco‑friendly cleaning system eliminates chemical solvents, simplifies operation, and keeps the production environment clean and safe.
Compact Footprint & Low Investment
Small equipment footprint reduces factory space requirements; low initial investment makes it accessible for small‑to‑medium capacity and flexible production needs.
Simple Operation for Easy Adoption
User‑friendly PLC + touch screen interface with intuitive controls; new operators can master the system quickly with minimal training.
Start Your Custom Sandwich Panel Production Today
Our engineering team will help you select the right mold configuration, tank capacity, and control features for your specific panel types, thickness ranges, and production volume targets.
Industries & Applications
The HF‑CLPS‑Batch is specifically designed for production of customized polyurethane sandwich panels, special‑shaped panels, and small‑batch non‑standard insulation panels. It is ideal for laboratory sampling and R&D, non‑standard building material manufacturing, custom cold storage panels, specialized insulation components for industrial equipment, and small‑to‑medium batch projects requiring flexible mold change and panel customization. The line supports dense, void‑free rigid foam cores with excellent thermal insulation performance.
